Guangzhou Tengsheng Audio Equipment Co., Ltd. >> K8 Single 8 Inches 2-Way Conference System

K8 Single 8 Inches 2-Way Conference System

Name: K8 Single 8 Inches 2-Way Conference System
Brand: China-Manufacturer-Directory.com
SKU: 701848542
Availability: InStock
Rating: 4.6 (88 reviews)

Supplier:	Guangzhou Tengsheng Audio Equipment Co., Ltd.
Price:	US $ 150-350/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	K8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	2-Way Full Range PRO Audio
Crossover:	Asymmetric Internal Passive Crossover
Lf Component:	140mm Magnet with Aluminum Frame
Hf Component:	90mm Magnet
Size Options:	6", 8", 10"
Installing:	Hanging, Pole Mount, Stand, Lying Down
Diaphragm:	Titanium
Capacitor:	Solen
Clients' Logo:	Acceptable
Warranty:	3 Years
Noise:	<95dB
Hi-Fi:	Not Hi-Fi
Operation Mode:	Wire / Remote Control
Speaker System:	Optional Combination
Speaker Material:	Wood
Application:	Home
Certification:	CCC
THD:	<0.005%
Monitor:	Nun

Product Description

Features:

a. Titanium membrane HF titanium membrane precise compression driver;

b. Compact design;

c. Perfect alto performance for conference hall.

1. Description:

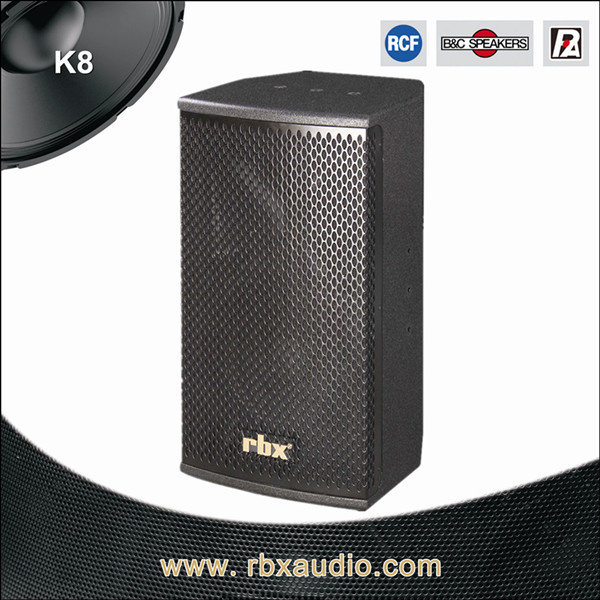

K8 is a two-way full range loudspeaker, which is equipped with a 8" LF precise driver and a 1" HF titanium membrane precise compression driver. It can be combined with K series when applied in theatre and conference room.

2. Application:
Conference center & Theatre and etc.

3. Technical data:

Model	K8 single 8 inches 2-way conference system
Drivers	LF: 1×8"voice-coil: 2"
Drivers	HF: 1×1"voice-coil: 1"
Frequency(±3dB)	69HZ-18KHZ(±3dB)
Dispersion(-6dB)	Hor:90° × Vert:50°
Sensitivity(1m/1W)	LF: 96dB
Maximum SPL	119dB Continuous/125dB Peak
Nominal Impedance	8 Ohms
Input power	Rate:200W/Peak: 800W
Recommend AMP	200W to 500W into 8 Ohms
Connectors	2 × Speakon NL4MP
Dimensions	480 × 250 × 260mm (H × W × D)
Master carton	540 × 310 × 320 (H × W × D)
Net Weight	8Kg (1piece/ctn)
Gross Weight	10.5Kg

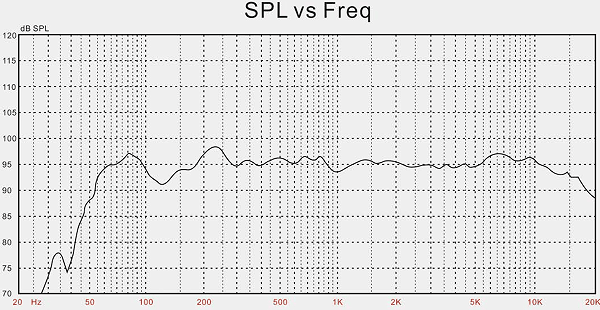

4. Frequency:

5. Construction:

Physical	Polygonal
Enclosure	Imported multilayer birch plywood
Grille	Die-casting steel net with circular hole, black sponge inside.
Paint	Polyester coatings (whose color can be customized.)
Handing Position	M8 screw of installation holes (16 pcs)
Pole Mount	Bottom: Φ35mm support base

6. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. Please kindly keep it away from dust and the strong magnetic field.
c. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.

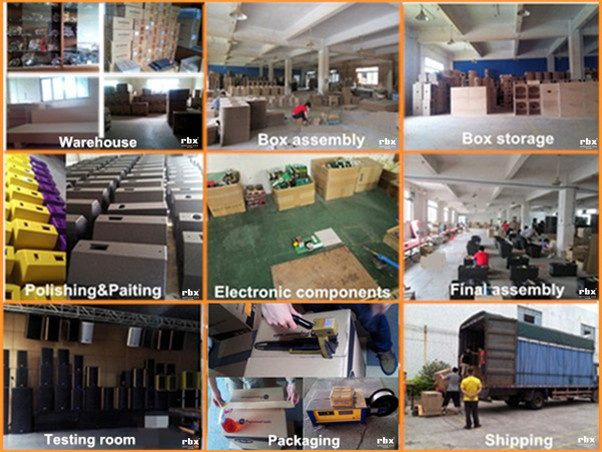

7. Company View:

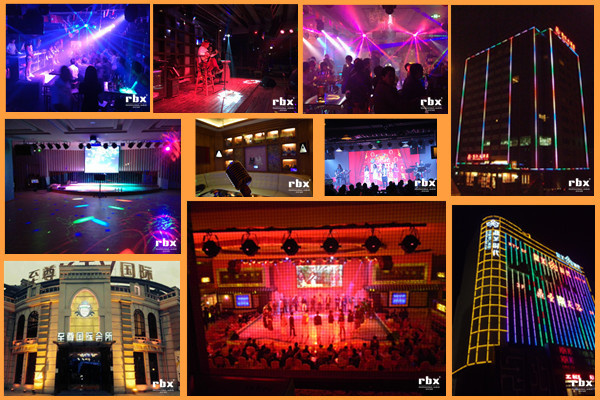

8. Our Projects:

Guangzhou Tengsheng Audio Equipment Co., Ltd. is located in Huashan Town, Baiyun District, Guangzhou City, covers an area of 5, 000 square meters. Our company is closed to GUANGZHOU BAIYUN Airport, the transportation is convenient. We've been devoteing ourselves to the R&D, manufacturing and marketing of high-quality professional audio system.

During the passed years, We've owned a team of highly qualified engineers and sales. We've been always developing new products according to the market trends and the feedback from our clients, which gain much praise and trust. Besides products, we provide audio system solution also. We always take the pursuit of win-win situation between our clients and us.

Our company owns a serial of automated production equipments and quality management system basing on international standards, both of these help us to keep making progress. Excellent quality dates from pursuit of every aspect, and, customer satisfaction comes from sincere service. We'll listen to the voice of the world, and create perfect audio system.
