Product Specifications
| Prod Model: |
GD-2100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item Name: |
Karl Fischer Moisture Content Analyzing Instrument |
| Test Parameters: |
Test Trace Water Content in Various Liquid, Solid |
| Application Field: |
Petroleum, Chemical, Pharmacy, Electricity, Scient |
| Measurement Method: |
Coulometric Karl Fischer Method |
| Measuring Range: |
3ug to 200 Mg Water |
| Water Content Range: |
1ppm-100% |
| Resolution: |
0.01 Ug Water |
| Dimension: |
320 * 240 * 180mm |
| Weight: |
6kg |
| Warranty Period: |
1 Year |
| Type: |
Karl Fischer Moisture Meter |
| Analysis Method: |
Chemical Analysis |
| Application: |
Petroleum Products etc. |
Product Description

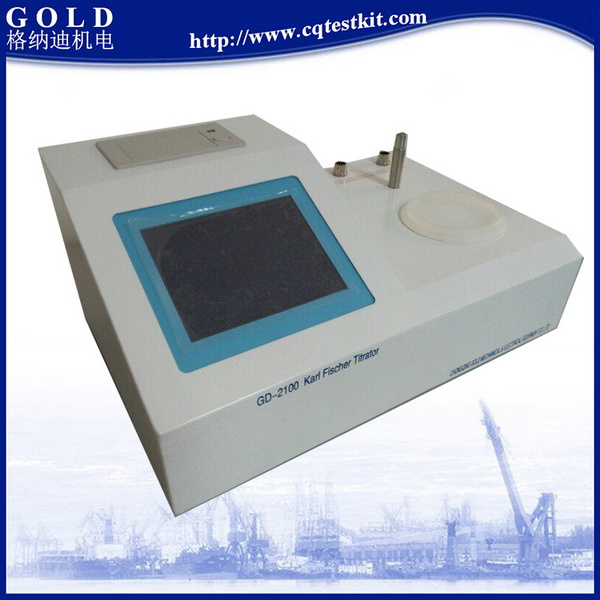

GD-2100 Karl Fischer Moisture Content Analyzing Instrument
Introduction:
This device adopts Karl Fischer Coulometric method.
It owns advantages of high testing accuracy, good repeatability, low testing cost etc.
It is used to accurately test trace water content in various liquid, solid and gases.
And it is widely applied to petroleum, chemical engineering, pharmacy, electricity, scientific research, education department and so on.
Main functions and features:
Intelligent Determination
Powerful new-generation processor; dual-CPU design.
Dual power channels separate electrolytic electrode and measuring electrode;
Automatically removing all kinds of interference;
Greatly improving the accuracy of test results.
Measuring electrode data directly A / D sample converting;
Data true value avoids errors caused by analog circuit;
Results more accurate.
Easy Operation
Touch screen operation;
Only pressing once then the test will be done automatically and the reported values will automatically display.
Background Compensation
Large current background compensation. Standby time can be shortened to be less than 10 minutes.
Rotating Speed Control
Software adjusting stirring speed; selection between 0 to 36.
End Point Indication
Character tips and buzzer
Perfect Calculating Function
Automatically display, calculate, print ug / ppm / percentages / mg/L / sample name / test date etc.
Automatic Date Data Storage
Year, month, day, hour, minute, second; automatic storage when power off .
Technical Specifications:
No. | Item Name | Specifications |
| 1 | Display | LCD |
| 2 | Measuring range | 3ug to 200 mg water |
| 3 | Water content range | 1ppm-100% |
| 4 | Resolution | 0.01 ug water |
| 5 | Accuracy | 10μg~1mg water, ± 0.2%; >1mg water, < ± 0.3% (excluding injection error) |
| 6 | Electrolysis speed | max 2.4 mg/min |
| 7 | Electrolytic current | 0 ~ 430 mA |
| 8 | Ambient temperature | 5 ~ 35 ºC; Humidity: ≤85% |
| 9 | Power supply | AC 220V ± 10% |
| 10 | Dimension | 320 × 240 × 180mm |
| 11 | Weight | about 6kg
|
