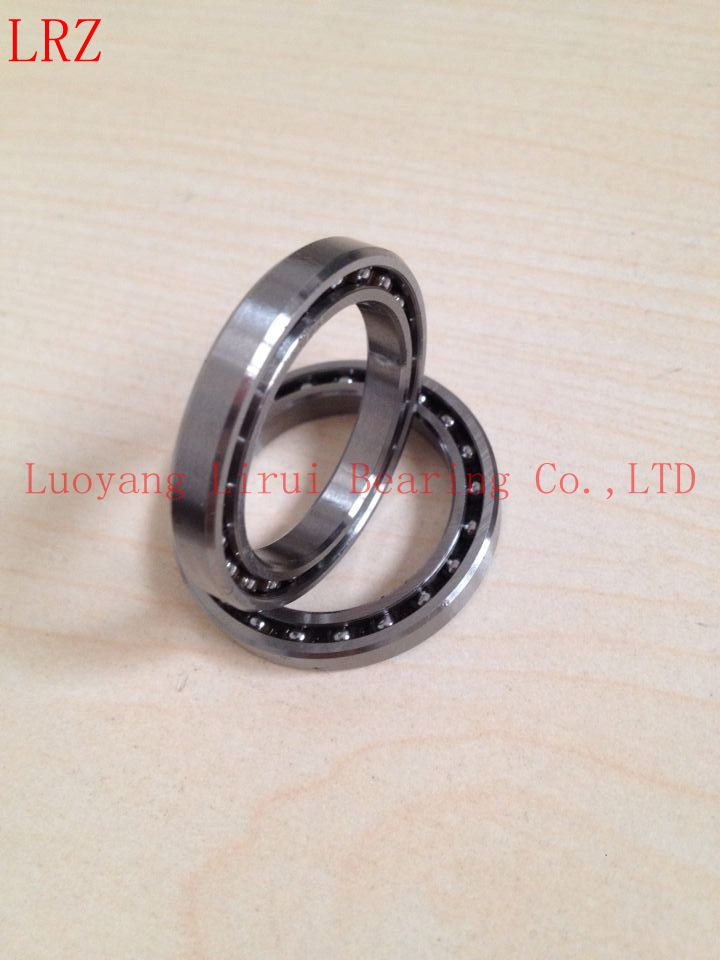

Kb020cpo, Thin Section Deep Groove Ball Bearing, Engine

Kb020cpo, Thin Section Deep Groove Ball Bearing, Engine
Price: US $ 0.1/Set
Trade Terms: FOB,CFR,CIP
Min Order: 1/Set
Pay Type: T/T,Paypal
Luoyang lirui bearing Co. Ltd is a professional company engaged in the production of bearings, such as series of thin-wall deep groove ball bearing, angular contact bearing, four-point contact ball bearing.
There are three kinds of structure of Thin-wall bearing, such as ARO, CPO, XPO. Which are short for thin-wall angular contact series, thin-walled deep groove ball series 3. Thin-wall four-point contact ball series
We also specialize in the production of American KAYDON substitute precision thin section bearing, and substitute thin section bearing, imported substitute bearing, and Japan NTN substitute precision thin section bearing.

Feature;
Thin wall bearing has many advantages and superiority that ordinary bearing is incomparable, such as thin wall, light weight, strong carrying capacity, higher precision. It is especially suitable for aerospace, military, medical machinery, machine tool accessories, precision instruments, textile machinery, machinery parts, engineering machinery, welding equipment, etc. Its has high requirement of small size and light weight devices but with limited installation space, and also has a wide range of available space. Besides, It can also save space, reduce weight, significantly reduce the friction, and provide good rotating accuracy, without affecting the bearing performance and service life. Using thin wall bearings can reduce design of outside dimension and the production cost

Deep groove ball bearings can withstand radial load and two-way axial load, making it very suitable for high speed rotation and requiring low noise, low vibration.

Main application:
Car: Rear wheel, transmission, electrical equipment parts
Electric: General motor, household electrical appliances
Other: Instrumentation, internal combustion engines, construction machinery, railway vehicle, loading and unloading handling machinery, agricultural machinery, all kinds of industrial machinery
Type Major dimensions weight Rated loading Limiting speed equivalent
d D B radial thrust
static dynamic static dynamic SILVERTHIN
IN MM IN MM IN MM KG Co(N) Cr(N) Co(N) Cr(N) (RMP)
KB020CPO 2 50.8 2.625 66.675 0.3125 7.938 0.073 4850 3780 14010 10940 8650 SB020CPO
KB025CPO 2.5 63.5 3.125 79.375 0.3125 7.938 0.091 5960 4090 17170 11920 7110 SB025CPO
KB030CPO 3 76.2 3.625 92.075 0.3125 7.938 0.109 6890 4310 19880 12460 6040 SB030CPO
KB035CPO 3.5 88.9 4.125 104.775 0.3125 7.938 0.122 7960 4540 23040 13210 5250 SB035CPO
KB040CPO 4 101.6 4.625 117.475 0.3125 7.938 0.136 9070 4800 26200 13920 4640 SB040CPO
KB042CPO 4.25 107.95 4.875 123.825 0.3125 7.938 0.141 9560 4850 17580 14100 4380 SB042CPO
KB045CPO 4.5 114.3 5.125 130.175 0.3125 7.938 0.15 74730 4980 28910 14410 4160 SB045CPO
KB047CPO 4.75 120.65 5.375 136.525 0.3125 7.938 0.154 10630 5070 30740 14630 3950 SB047CPO
KB050CPO 5 127 5.625 142.875 0.3125 7.938 0.172 11120 5160 32070 14900 3760 SB050CPO
KB055CPO 5.5 139.7 6.125 155.575 0.3125 7.938 0.186 12190 5340 35230 15480 3440 SB055CPO
KB060CPO 6 152.4 6.625 168.275 0.3125 7.938 0.2 13300 5520 38390 16010 3170 SB060CPO
KB065CPO 6.5 165.1 7.125 180.975 0.3125 7.938 0.213 14230 5600 41100 16240 2940 SB065CPO
KB070CPO 7 177.8 7.625 193.675 0.3125 7.938 0.227 15350 5780 44300 16730 2740 SB070CPO
KB075CPO 7.5 190.5 8.125 206.375 0.3125 7.938 0.240 16460 5920 47460 17170 2560 SB075CPO
KB080CPO 8 203.2 8.625 219.075 0.3125 7.938 0.259 17530 6050 50620 17570 2410 SB080CPO
KB090CPO 9 228.6 9.625 244.475 0.3125 7.938 0.299 19570 6270 56490 18150 2150 SB090CPO
KB100CPO 10 254 10.625 269.875 0.3125 7.938 0.331 21750 6580 62810 19080 1940 SB100CPO
KB110CPO 11 279.4 11.625 295.275 0.3125 7.938 0.340 23800 6850 68680 19350 1770 SB110CPO
KB120CPO 12 304.8 12.625 320.675 0.3125 7.938 0.376 25980 7220 75000 20060 1620 SB120CPO
KB140CPO 14 355.6 14.625 371.475 0.3125 7.938 0.476 30070 7860 86740 21530 1400 SB140CPO
KB160CPO 16 406.4 16.625 422.275 0.3125 7.938 0.544 34300 8480 98970 22910 1230 SB160CPO
KB180CPO 18 457.2 18.625 473.25 0.3125 7.938 0.612 38520 9070 111160 24510 1090 SB180CPO
KB200CPO 20 508 20.625 523.875 0.3125 7.938 0.68 42750 9620 123350 26240 980 SB200CPO

Prod Model: KB020CPO
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Diameter: 2.000 Inches
Outer Diameter: 2.6250 Inches
Breadth: 0.3125 Inch
Weight: 0.073 Kg
Rolling Body: Ball Bearings
Separated: Unseparated
The Number Of Rows: Single
Outer Dimension: Small and Medium-Sized (',60-115mm)
Load Direction: Radial Bearing
Material: Bearing Steel
