Product Specifications
Prod Model: |
se-40-me-01 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Input Voltage: |
440V,420V,400V,380V |
Output Voltage: |
400V,380V,220V,200V,190V,120V,100V |
Compatible Voltage: |
Less Than 1000 V |
Where We Use: |
Precise Instruments, Test Equipments etc |
Frequency: |
50Hz/60Hz |
Rated Capacity: |
10kVA to 1250kVA |
Product Name: |
Kewang Se Power Transformer 30kVA Transformer |
Application: |
Audio |
Phase: |
Three |
Coil: |
Core-type Transformer |
Cooling Method: |
Dry-type Transformer |
Winding Type: |
Two-winding Transformer |
Brand: |
Kewang |
Product Description

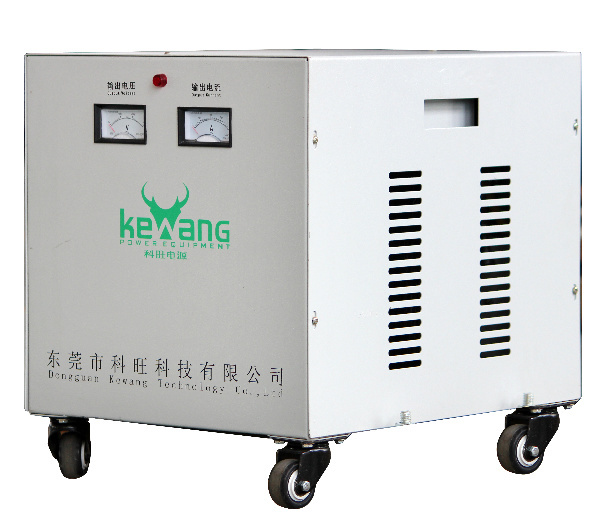

Kewang SE power transformer 30kva transformer
Product Introduction
Adopted high quality materials and advanced techniques, by air-cooled method, via vacuum pressure impregnating and strict quality-inspection, SE air-cooled LV transformers possess following features: high efficiency, low loss, low noise, high reliability and strong load capacity;
SE air-cooled LV transformers are classified into: auto transformer, isolation transformer, single phase transformer and three-phase transformer;
Input voltage: three-phase 440V,420V,400V,380V,etc.
Output voltage: three-phase 440V,380V,220V,200V,190V,120V,100V,etc.
Single phase and special products can be made as per requirements
Application:
Applied to the machineries with operating voltage less than 1000V:
Precise instruments, test equipment, electric equipment, production lines, railways, R&D science technology institutions.
Parameters |
Rated capacity | 10kVA~1250kVA |
Frequency | 50Hz/60Hz |
Coupling | Yna0 DyN11 |
Efficiency | >95% |
Insulation class | B/F/H |
Power frequency withstand voltage | 3000V60S |
Insulation resistance | 500VDC>5ΜΩ |
Ambient temperature | 10~40ºC |
Relative humidity | <90% |
Specifications |
SE Air-cooled Three-phase Auto Transformer Specification |
Model | Capacity(kVA) | Dimension(W×D×H)mm | Weight (kg) |
SE-10 | 10 | 500×400×500 | 75 |
SE-15 | 15 | 500×400×500 | 85 |
SE-20 | 20 | 600×500×520 | 110 |
SE-30 | 30 | 600×500×520 | 120 |
SE-40 | 40 | 600×500×520 | 130 |
SE-50 | 50 | 600×500×520 | 160 |
SE-60 | 60 | 600×500×520 | 170 |
SE-80 | 80 | 720×560×800 | 230 |
SE-100 | 100 | 720×560×800 | 240 |
SE-150 | 150 | 720×560×800 | 280 |
SE-200 | 200 | 880×680×980 | 420 |
SE-250 | 250 | 880×680×980 | 460 |
SE-300 | 300 | 880×680×980 | 500 |
SE-350 | 350 | 1180×880×1280 | 580 |
SE-400 | 400 | 1180×880×1280 | 620 |
SE-500 | 500 | 1180×880×1280 | 700 |
SE-600 | 600 | 1280×950×1500 | 880 |
SE-800 | 800 | 1280×950×1500 | 980 |
SE-1000 | 1000 | 1400×1100×1700 | 1200 |
SE-1250 | 1250 | 1400×1100×1700 | 1400 |
SE Air-cooled Three-phase Isolation Transformer Specification |
Model | Capacity(kVA) | Dimension(W×D×H)mm | Weight (kg) |
SE-10 | 10 | 600×500×520 | 110 |
SE-15 | 15 | 600×500×520 | 130 |
SE-20 | 20 | 600×500×520 | 160 |
SE-30 | 30 | 600×500×520 | 170 |
SE-40 | 40 | 720×560×800 | 240 |
SE-50 | 50 | 720×560×800 | 280 |
SE-60 | 60 | 720×560×800 | 320 |
SE-80 | 80 | 880×680×980 | 420 |
SE-100 | 100 | 880×680×980 | 460 |
SE-120 | 120 | 880×680×980 | 500 |
SE-150 | 150 | 1180×880×1280 | 580 |
SE-200 | 200 | 1180×880×1280 | 620 |
SE-250 | 250 | 1180×880×1280 | 700 |
SE-300 | 300 | 1280×950×1500 | 880 |
SE-400 | 400 | 1280×950×1500 | 980 |
SE-500 | 500 | 1400×1100×1700 | 1200 |
SE-600 | 600 | 1400×1100×1700 | 1400 |
SE-800 | 800 | 1600×1200×1900 | 1800 |
SE-1000 | 1000 | 1600×1200×1900 | 2200 |
SE-1250 | 1250 | 1800×1500×2200 | 2800 |
Above size and weight only for reference
