Product Specifications
| Prod Model: |
LS-8015-FM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Keypad Card Password Lock with Reversible Hande |
| Key Ways: |
Card + Code+ Mechanical Key |
| Low Voltage Alarm: |
4.8V(6V Power Supply) |
| Battery: |
4 Pieces AA Battery (6V) |
| Panel Size(Outside): |
153.9(H)X67(W)X76.6(D)mm |
| Panel Size(Inside): |
153.9(H)X67(W)X63.1(D)mm |
| Package: |
1 Piece Per Box, 6 Pieces Per Carton |
| Finish: |
Silvery/PVD Gold |
| Cylinder: |
Hidden Cylinder, Mechanical Key Override |
| User Capacity: |
200PCS(Pin Code and Card User) |
| Material: |
Zinc Alloy |
| Type: |
Electronic |
| Style: |
Modern |
| Shape: |
Mortise Door Lock |
| Anti-theft Standard: |
A |
| Part: |
Lock |
| Backset: |
60mm |
| Door Thickness Fits: |
35-50mm |
| Usage: |
Home Automation |
| Lock Cylinder Length: |
57mm, 141mm |
Product Description
Digital Card Lock Description:
1.LS-8015-FM card code lock, easy operation and installation, suitable for apartment, office, dormitory;

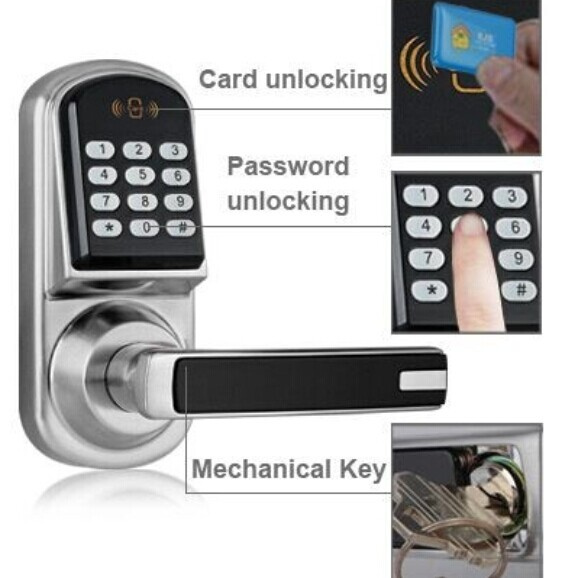

2.Four unlock way:
1) Pin code unlock;
2) Mifare card unlock;
3) Mifare card + pin code unlock;
4) Mechanical key unlock in emergency.
3. 1 group of master code, 200 groups of card&code users in total;
4.Two kinds of mortise for choose:
a. Five latch mortise: deadbolt function, security;
b. Single latch mortise: suitable for renovation door that installed single latch, without drill extra hole;
5.Two kinds of handle for choose:
a. Reversible handle, change handle to left or right directly;
b. Hidden cylinder handle, protective and security;
6.Malfunction prevention function: when 5 failed authentication attempts with unregistered pin code/card occur, the lock will stops operating for 3 minutes;
7.Scamble code: protect user code, you can input 20 digits, ony if the last 4-8 digits is right code, you can unlock the door;
8.Low battery alarm function, when battery voltage is below 4.8V, the lock will alarm;
9.4pcs AA Alkaline Battery(6V);
10. Sealed PCB, waterproof gasket override, weatherproof, satin nickel finish, fadeless;
11. Blue light display, convenient for operation in dark;
12.Awarded CE certificate& ISO certificate;
Packaging:
Each piece packed in white box, 8pcs / ctn
Carton size: L420 x W260 x H490 (mm)
Volumes: 0.06 m3 / ctn
Shipping:
DHL,UPS,EMS,sea, air transportation are available.The locks will be shipped within 10-20 days upon receiving your deposit.
Our Service:
Manufacturing and supplying Electronic Hotel / Apartment Door Locks & Hotel locking systems and solutions.
Help customers arrange shipping and consolidating the goods
OEM service available
Warranty: 2 years, lifetime maintaince
Provide online training and technology support through Mail, Phone, Whatsapp, Skype etc.
The Buyer is guaranteed to get the response within 24 hours upon receipt the inquiry.
Company Information:
Established in 1998, Locstar is a leading company in Electronic Hotel / Apartment Door Locks with the factory located in Longgang, Shenzhen with 10,000 m² production base, owns a completed and mature system and production lines, including R&D, molding, punching, dieing, assembling, testing and logistics. Our products portfolio includes:
Electronic Hotel Door Locks and hotel locking systems
Electronic Apartment Door Locks
Z-wave Door Locks
NFC Door Locks
With 95% parts are produced by ourselves, our cost and quality are assured. Our hotel lock products are widely used in domestic / oversea hotel projects from economic hotel, chain hotel, commercial hotel to star hotel. And our apartment door lock products are providing convenience and security to more and more residents worldwide.
Why Choose Us?
1. We are electronic lock manufacturer since 1998.
2. Prompt Feedback: within 24 hours.
3. Self-made lock and software, can be adjustble for your special requirements.
4. OEM/ODM Service offered
5. Delivery in time.
6. Resonable price with good after-sale service.
Digital Card Lock Technical Parameters:
| Model No. | LS-8015-FM |
| Lock type | Apartment Door Lock |
| Unlock way | Pin code/Mifare card/mechanical key unlock |
| Dual verification | Pin code + Card |
| User capacity | 200pcs(pin code and card user) |
| No. combination | 4-8 digits |
| Master code | Yes |
| Scamble code | Yes |
| International Standard | ISO14443-A,ISO11784/785 |
| Working Consumption | ≤200mA working ≤0.2 seconds |
| Static consumption | ≤25u A,≤15u A |
| Working Temperature | 0-70 degree |
| Battery unlocking lift | ≥10000 times |
| Reliability | ≥30000 times |
| Mechanical life | ≥500,000 times |
| Door depth(mm) | 35-60 |
| Battery | 4 pieces 5# normal battery (6V) |
| Low voltage alarm | 4.8V(6V power supply) |
| Automation locking | 5 seconds |
| Material | Zinc alloy, ABS plastic |
| Override key | 2 keys |
| Color | Silvery/PVD Gold |
| Panel size(outside) | 153.9(H)x67(W)x76.6(D)mm |
| Panel size(inside) | 153.9(H)x67(W)x63.1(D)mm |
| Weight | 2.5kg |
