Ki-G8088W LCD Touch Screen GSM Wireless Security Alarm System (KI-G8088W)

Product Specifications

Prod Model:	KI-G8088W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	CE
GSM Frequency:	900/1800/850/1900MHz
Zones:	15 Wireless Alarm Zones, 2 Wired Port
Numbers:	6 Phone/SMS Alarm Numbers
Display:	LCD Touch Keyapd
Material:	ABS
Net Weight:	1.3kg
System:	GSM Home Alarm System
Application:	Indoor
Working Mode:	Passive
Signal Transmission:	Wireless Alarm
Type:	Home Alarm
Usage:	Door
Sensor Type:	Wireless Infrared Sensor

Product Description

Description of the GSM home alarm:

1) Touch keypad; Blue back-up light; LCD displays Date, Day of the week, Time, and current Armed Status

2) GSM 2/4 Band Net transmission, phone audible alarming and SMS alarming

3) 15 wireless zones. Supports 2 more wired zones(Optional).

4) Can preset up to 6 phone numbers and dial in sequence.

5) Intelligent logic analysis technology, corresponding zone number and sensor name can be displayed.

6) Record up to a 10 second greeting for the auto-dialer, Then play the greeting back.

7) Arm\ Disarm the system by 5 ways: SMS, Main Host(Keypad), Wireless Keypad, Keychain Remotes, or even remotely by phones. (PSTN alarm don't support SMS)

8) Available in AC\DC with Low-voltage Indicators

9) Learning sensors to alarm host, very easy operation.

10) Support wireless "ding-dong" doorbell function (Optional)

11) Support CID uploading to CMS(Center monitoring Station), can user our GSM CID connector to have this function.

12) Built-in Li-ion backup battery, it will alert when low power or without external power supply.

13) Store up to 99 alarm records and 99 arm\disarm records

Attention:

1. Use the correct power supply with the electric current of more than 1A (at 12V).
2. Adopt the professional installation to avoid the damage of the main unit caused by wrong connection.
3. Please don't press the main unit or touch the keyboard heavily.
4. Please don't use the product in damp condition.
5. Please don't use the product under inflammable and explosive condition.
6. Keep the surface of the product clean and dry.

Technical Parameter:

1) Standby Current: ≤ 20mA, Alarming Current: ≤ 50mA.
2) Working Conditions: Indoors; Teperature: -10 to 50
3) Relative humidity≤ 90%; Atmospheric pressure 86 ~106Kpa.
4) Alarm receiving method: Wireless transmission; Radio transmitted distance: ≥ 100m;
5) Voice message: 12 seconds
6) Horn level of the siren connected: ≥ 110dB.
7) Support 900/1800/850/1900MHz(Optional by you)

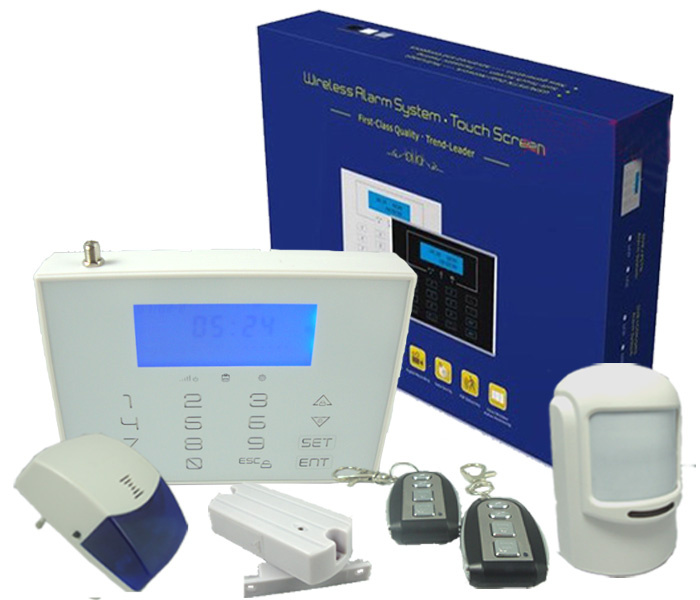

Each Package Included:

Alarm host X1
Wireless door sensor X1
Wireless infrared sensor X1
Wireless strobe siren X1
Remote controls X2
AC power X1
(Solar power optional)

Warranty:

1) We provide 2 years warranty, but we won't responsible for mistake operation
2) We only afford the shipping cost from China to the address of buyer
