Product Specifications
| Prod Model: |
KET Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Kiet Rail Based Ship Transfer System |
| Capacity: |
150t |
| Working Pressure: |
25MPa |
| Power: |
2.2kw |
| Stroke: |
250mm |
| Body Material: |
Steel |
| Color: |
Customerized |
| OEM: |
Yes |
| Market: |
Global |
| Current: |
4.85A |
Product Description

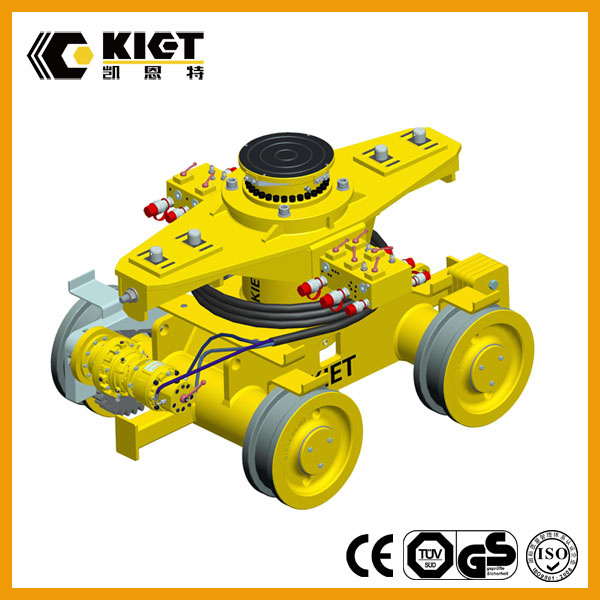

KIET Rail Based Ship Transfer System
KIET Fluid Bed Rail Based Ship Launch System is designed to transport ships between a ship lift and dry berth on land. The transfer system is a robust, easy-to-operate system that requires little maintenance. It can be submerged and stored outdoors without damage or adverse effects. The Rail Transfer System runs on rails and can move both in lateral and transverse directions. The transfer system will move the vessel on a fluid bed with full control over the forces to the hull and the wheel loads. The system consists of a number of transfer trolleys, each with lifting capacity up to 150 tons.
1. Lifting system
with a set of ultrahigh pressure doublestage pump, it can achieve the fast lifting at noload condition and slow lifting at heavy load condition for improving the working efficiency, the compensation valve equipped on the cylinder guarantees the safe and stable decline. Using double acting mechanical lock nut cylinder can save operating time.
2. Walking system
Structured with motor and reducer, the delivery speed is 3m/min. Low noise and high efficiency.
3. Electronic control system
Parallel connection power supply and control mode can not only guarantee the single hydraulic vehicle's operation, but also the numerous hydraulic vehicles' synchronous lifting and shuttle. The centralized control cable trailer can control the hydraulic small vehicles concurrently. Long distance power supply to the system can be achieved via the cable drum on the cable trailer for flexible use and wider application scope.
Packaging & Shipping:
We provide wooden packing for each hdyraulic product, which can perfectly protect , the shipping can be by express parcel, by air or by sea shipping.
Our Services
KIET provide one year guarantee for all the hydraulic products. We promise if there is any dysfunction of the hydraulic cylinder during the quality warranty not by outside force, we will replace a new cylinder for free. Any quality defects reported by customers will be responded within 24 hours.
Company Information
Jiangsu Canete Machinery Manufacturing Co.,Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies:China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation.
Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
