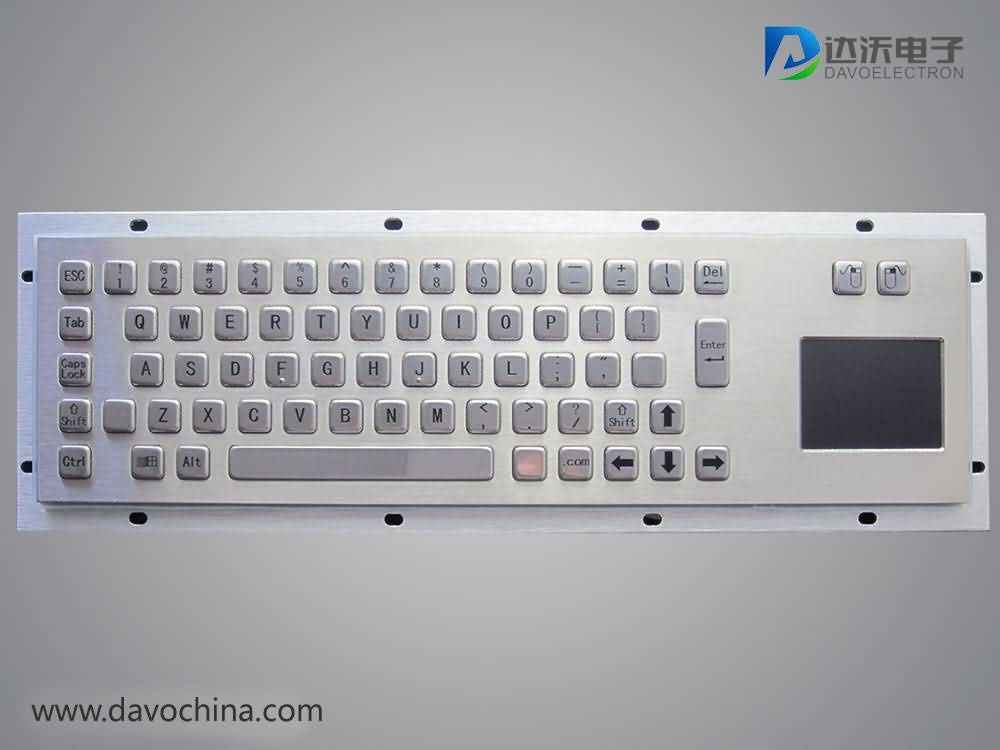

Kiosk Keyboard with Touchpad D-8607

Product Specifications

Prod Model:	D-8607
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	FCC

Product Description

Introduction:
Front-panel/keys materials: 304 stainless steel
Baseboard material: Aluminium
Keys: Laser engraved or chemical corrosion to avoid the characters falling off or being friction losses.
Switch Contact Material: Silicone switch technology PCB.
Supply Voltage: +5V DC

Color: White
Size: 392*110mm(front panel) 415.5*134mm(back panel)

Properties of products:
Key lifespan: > 2 million times
Key press force: 3~5N
Key travel: < 2.5mm
Touchpad: Industrial
Protection level: IP65(static)/IP54(dynamic)

Interface: PS/2 or USB port

System: PS2: Win NT4, 98SE, 98ME, 2000, XP, VISTA, WINDOWS 7
USB: Win 98SE, 98ME, 2000, XP, VISTA, WINDOWS 7, Mac OS9/OSX

Standard: ISO/IEC9995, GB/T1408

Applications: Unattended internet terminals and information kiosks in public areas, self-service terminals in bank, ticket vending machines, gas stations, aviation equipment, military equipment, internet publicphones, industrial consoles, industrial PC and so on.

Environment adaptation:
Operation temperature: -20~+65 RH: 30%~90%.
Storage temperature(recommended): -25~+75 RH: 20%~95%(no condensate).
Air pressure: 60~106Kpa
Reliability: RoHS, CE and FCC
Protection Level: IP65(front panel)
Key Lifespan: > 5 years

Warranty: 12 months from receiving date or 15 months from date of dispatch ex-work Shenzhen, whichever comes first. Davo shall not be responsible for improper use or misoperation or modifying without authorization.

All language and layout is available.
