Product Specifications
| Prod Model: |
KLB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage Range: |
0 ~ 250V |
| Type: |
Vibration Testing Machine |
| Weight: |
0-100Kg |
| Power Source: |
AC220V |
Product Description

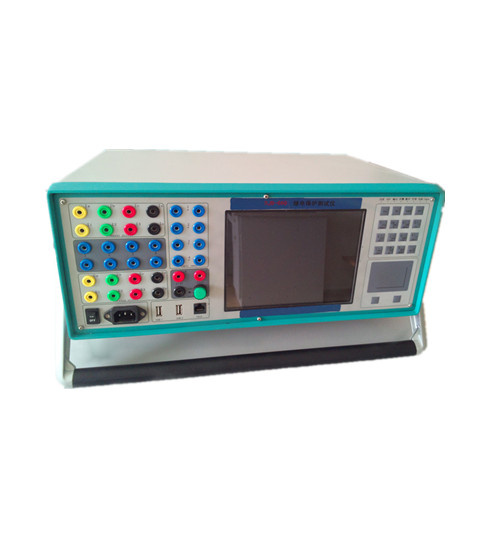

KLB-660 Microcomputer Relay Protection Test Device
Mainly feature:
1. Built-in high performance IPC, adopts embedded industrial system WindowsCE.Net.
2. Original Dynamic Tracking technology, adopts high performance DSP, FPGA, 24DA
and high precision linear power amplifier technology.
3. Highly humanized operation interface design, which supply the acquainted and real
industrialize Window interface, built-in touchpad and keyboard, can through the port
work with the external notebook computer
4. It has the featured , simple and convenient universal test simulation functions, also has
practical and effective kinds of relay protection test checking routine, and supply kinds of test routine of checking and searching method's microcomputer protect and automatic equipment, different fault test simulator can make the actual simulation and play back the scene of different faults , transient states,oscillations and contract brakes.
5. No need to change any software or hardware also can output 6phase voltage and
current in the same time, all amplitude of action potential, phases, frequency and dc component can change and adjust independently.
6.Advanced high precision linear power amplifier technology improves the device's
power amplifiers system, also has the perfect all kinds of anti-misoperations, short circuit, electronic shock and overrun temperature's fault detect and protective function, the security device can reliable and stable work.
Parameter:
AC current source
The Max of 6phase current in parallel: 180A
To allow for a long time work values: 10A
Power: 300VA/Phase
The Max power of 6phase in parallel: 900VA
Hz range: 0-1000Hz, Accuracy: 0.001Hz
Harmonic number: 2-20times, Phase: 0-360°, Accuracy:0.1°
DC current source
Amplitude: 20A/Phase, Power: 300VA/Phase. Accuracy: 0.5%
AC voltage source
Amplitude range: 6X(0~125V), Accuracy: 0.5%
Line voltage range: 0-250V
Phase/line voltage output power: 70VA/100VA
Hz range: 0-1000Hz, Accuracy: 0.001Hz
Harmonic number: 2-20times, Phase: 0-360°, Accuracy:0.1°
DC voltage source
Phase voltage output amplitude: 0~±150V, Accuracy: 0.5%
Line voltage output amplitude: 0~±300V
Switch terminal
Input switch terminal number: 8pairs
Idle contact: 1~20mA, 24V
Output switch terminal number: 4pairs, idle contact
Interrupting capacity: 110V/2A, 220V/1A
Time measurement range
Range: 1ms~9999s, Accuracy: 1ms
Wuhan Kailixin Electrical Equipment Co., Ltd. is the professional manufacturer of power test equipment. The factory has gathered a number of professional technicians and staffs with high caliber guided by the principles of man-orientation, which possesses high design, development and manufacturing capabilities. By relying on the talent advantages and through constant technological innovations, some products of the factory currently have reached the leading position among the same industries in the world.
Our factory was backed by fine credit, technological advantages, excellent products and complete after-sales services.
