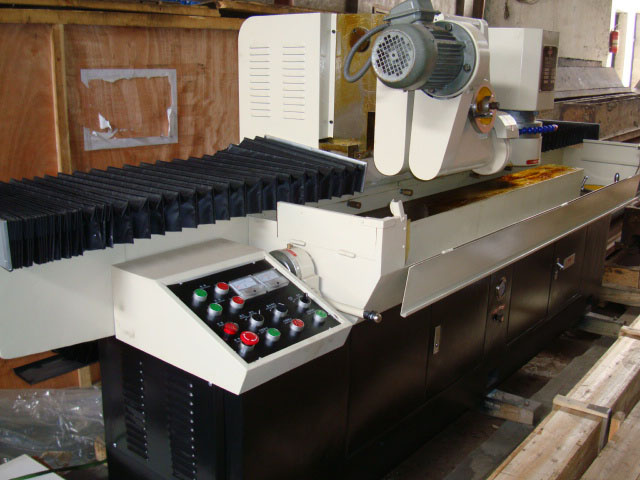

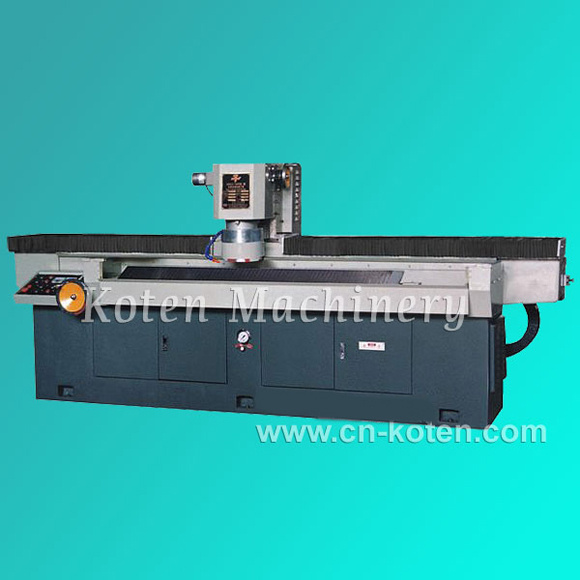

Model MSQ-D Knife Grinder is a new-type machine with hydrualic control system.
With the adoption of hydraulic automatic blade-feeding, traveling steepless speed regulation and rolling beeline guide track, it enables to change the angle of knife edge, thoroughly eliminate the waviness on paper-cutting cross section and prolong the using life of knife edge and blade. It is the updated grinding equipment at home and it can offer service to help printing factories to develop towards High-precision cutting level.
| No. | Description | Specification & Type |
| MSQ-1650D | MSQ-2200D |
| 1 | Max. grinding length | 1700mm | 2200mm |
| 2 | Grinding Wheel Speed | 1400rpm |
| 3 | Size of polishing disc | 140mmX6 |
| 4 | Width of grinding blade | 180mm |
| 5 | Rotation angle of worktable | 0~± 90° |
| 6 | Moving speed of grinding-head | 2-15M/minute |
| 7 | Grinding wheel attached Specification. |
|
| A. Type and Code | White corundum(GB) |
| B. Hardness | Soft 3, J(R3) |
| C. Granularity | 46#/60# |
| D. Size of grinding wheel | 200X100X100 |
| 8 | Max. sunction of magnetic disc | 10T |
| 10 | Power of grinding motor | 3kw |
| 11 | Power of polishing motor | 055kw/1440r/min. |
| 12 | Power of pump | 125W |
| 13 | Automatic blade-feeding amount | Fine grinding | 0.0075-0.03mm |
| Coarse grinding | 0.0075-0.03mm |
| 14 | Weight | 2.5T | 2.8T |
| 15 | Outside dimensions (LengthxWidthxHeight ) | 3400x1100x1550mm | 4100X1100X1550mm |
