Knock-Down Steel Structure for Factory Plant

Name: Knock-Down Steel Structure for Factory Plant
Brand: china-manufacturer-directory.com
SKU: 681124472
Availability: InStock
Rating: 4.9 (65 reviews)

Supplier:	Qingdao Eihe Steel Structure Co., Ltd.
Price:	US $ 655/Ton
Min Order:	10/Ton
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	EHSS084
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Steel Structure Height:	4.5m-12m
Span:	6-36m
Door:	Sliding Door or Electric Rolling up Door
Window:	Sliding and PVC or Aluminium Alloy Material
Type:	Light Section Steel
Standard:	AISI
Trademark:	Special Purpose Steel
Forming:	Hot-Rolled Steel
Connection Form:	Bolt Connection
Type Of Steel For Building Structure:	H-Section Steel
Carbon Structural Steel:	Q235
Residential Wall Structure:	Wallboard
Application:	Steel Fabricated House
Member:	Steel Structure Frame

Product Description

Specifications of our steel structure:
Light steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors
Light steel structure building is widely used in warehouses, workshops, large factories, and more
Characteristics:
Wide span: single span or multiple spans, the max span is 36m without middle column
Low cost: unit price range from USD35/m2 to USD70/m2 according to customers request
Fast construction and easy installation
Long using lifespan: up to 50 years
Others: environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving
Materials:
The main frame (columns and beams) is made of welded H-style steel
The columns are connected with the foundation by pre-embedding anchor bolt
The beams and columns, beams and beams are connected with high intensity bolts
The envelop construction net is made of cold form C-style purlins
The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by self-tapping nails
Doors and windows can be designed at anywhere which can be made into normal type, sliding type or roll up type with material of PVC, metal, alloy aluminum, sandwich panel.

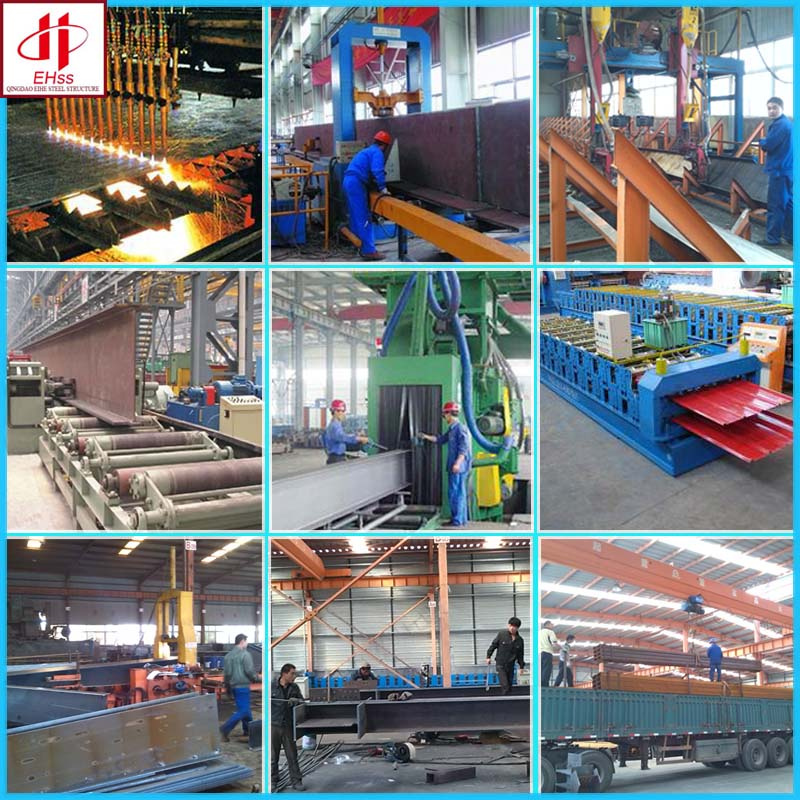

Our Workshop:

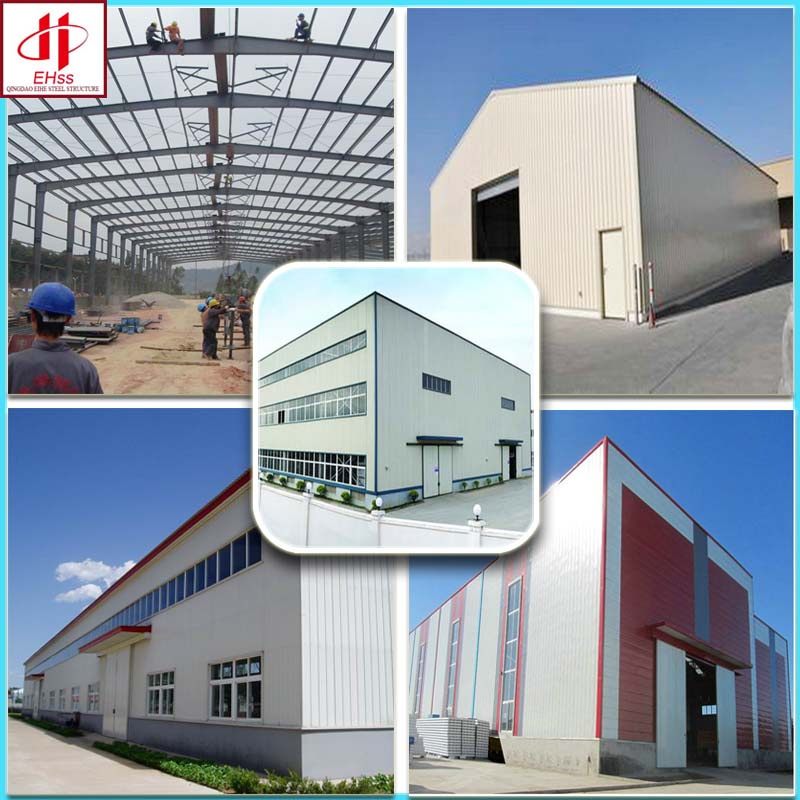

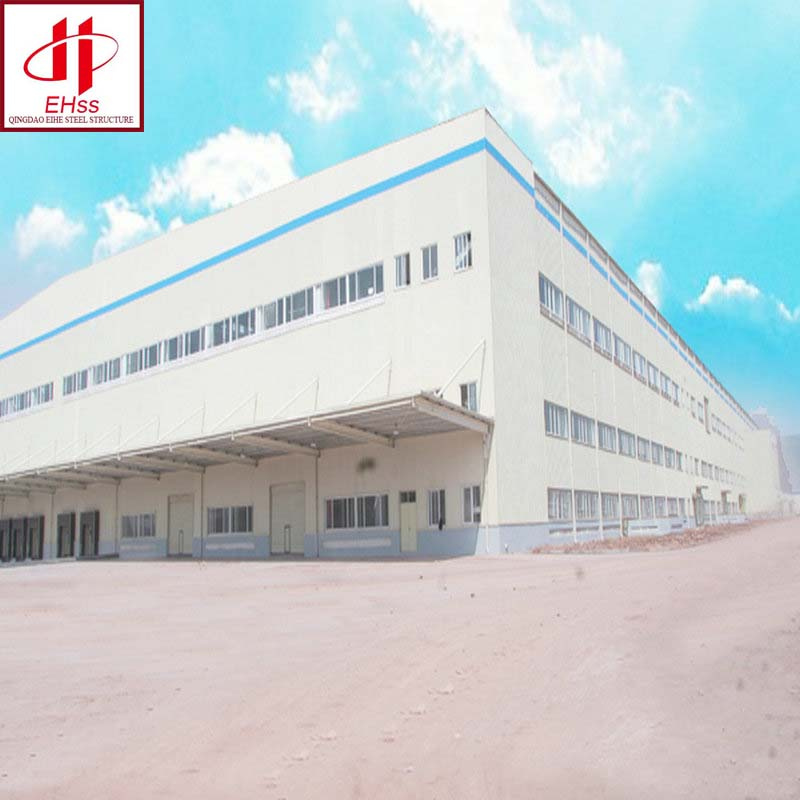

Our Steel Structure Projects:

Our service:
-Make quotation according to yours drawing
-Design and quote according to yours requirements
-Deliver the entire steel building to you by containers;
-Offer all the detailed drawings for installation and fabrication.

Characteristics of Steel Structure Building:
Dimensions	Length	Hbeam:4000-15000mm
	Thickness:	web plate:6-32mm
		wing plate:6-40mm
	Height	200-1200mm
	Color	according to customers
Advantages	1. design according to customers' requirements
	2. manufacture under complete quality control system---ISO9001
	3. installation with instruction of experienced engineers
	4. easy to assemble and dismantle
	5. eco-friendly material: can be used for several times and can be recycled
	6. shorter construction period, longer using time
	7. high strength, high weight bearing.
	8. sound insulation and heat insulation; antisepsis and damp proofing; waterproof and aseismatic

Main components	Main frame	H beam
	Purlin	C or Z section steel purlin
	Brace	Round Steel
	Bolt	Anchor, ordinary, high strength bolt
	Roof &wall	0.5mm or 0.6mm galvanized sheet
	Door	Sliding or rolling door
	Door Material	PVC or aluminum alloy
	Insulation panel	EPS,XPS,Rock wool , PU sandwich
	Material	Q235B Q345B China standard steel

The following information is the technical parameters needed to creat a steel structure building. We are sincerely glad to know that from you.
Building type	single slope,double slope, multi slope
Span	single span, double span, multi span
How many floors	one,two or three floors
Dimension	lengthwidthheight
Doors	sliding door or electric rolling up door
	dimension(length*width),quantity,and position
	material(pvc or aluminium alloy)
Windows	sliding window
	dimension(length*width),quantity,and position
	material(pvc or aluminium alloy)
Insulation material for roof and wall	EPS,PU,Rock Wool sandwich panel with thickness 50mm-150mm
Crane	Do you need crane inside the steel strucure? If yes, the capacity. We have crane capacity ranging from 5T to 10T.
Skylight	Do you need skylight on the roof? If yes, the daylighting area.
Local climate	wind speed, snow load, rain quatity, seismic magnitude, etc.
If you have other requirements, such as fire proofing, isolated roof, etc, please kindly inform us.
With your detailed information, our experienced engineers will make a nice design for you. Or if you have your own drawings and pictures,that would be better.
