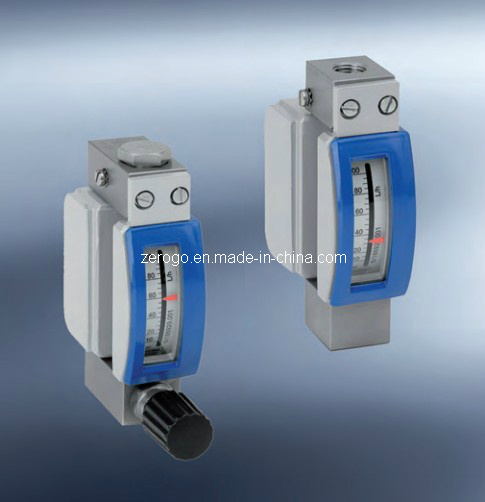

Krohne Float Flow Meter (DK32)
Product Specifications
| Prod Model: |
DK32 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temperature Of Fluid: |
-80c~90c |
| Protection: |
IP65 |
| Connection: |
Horizental |
| Sensor: |
Tube/Flange |
| Type: |
Variable Area Flow Meter |
| Accuracy: |
?à0.6-1% |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Mechanics |
Product Description
Krohne Variable area flow meter DK32
Range: DN15---DN300
Measure Liquid, gas, vapor
Connection: Horizontal or Vertical
Temperature: -80C---300C
Model DK32 has same connection, special in measure slight flow
Metal tube rotameter
Special features:
1. Rugged all-metal design
2. Easy stocking of parts thanks to modular concept
3. Complete interchangeability of all components and assemblies
4. Linear display
5. Adjustable to any fluid through replaceable cam plate
6. Shot-stroke design/parts do not project beyond the flanges, no matter what position the float is in
7. Electrical or pneumatic remote data transmission system
8. Limit switches can be installed
|
Item |
Krohne Variable area flow meter |
|
Metering range(100% values) |
Water(20° C) 6~15000 l/h
Air (0.1013MPa 20° C) 0.05~4000 m 3 /h |
|
Rangeability |
10: 1 |
|
Accuracy class |
1.5 (Special version 1.0) |
|
Operating data |
|
|
Max pressure |
DN15~DN50 PN4.0MPa (Special versio 25MPa)
DN80~DN100 PN1.6MPa (Special versio 16MPa) |
|
Temperature of fluid |
-80° C~+220° C |
|
Ambient temperature |
Max 120° C(Max. 60° C if signal output is electrical) |
|
Current output |
4-20mA (Optional) |
|
Viscosity of fluid |
DN15: ≤ 5mPa. s(H15.1~H15.3)
≤ 30mPa. s(H15.4~H15.9)
DN25: ≤ 250mPa. s
DN50~DN150: ≤ 300mPa. s |
|
Connection Standard |
Flange to DIN2501 or ANSI , Special Other standards on request |
|
Electaic |
M20× 1.5, PG11, 1/2" NPT |
|
Owerall height |
250mm |
|
Protection category to DIN 40050 |
IP65 |
|
Explosion Proof |
ExiaIICT3~6
ExdIIBT4 |
