Price: | US $ 260-3000/Piece |
---|---|
Trade Terms: | FOB,CFR,EXW |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,Western Union,Paypal |

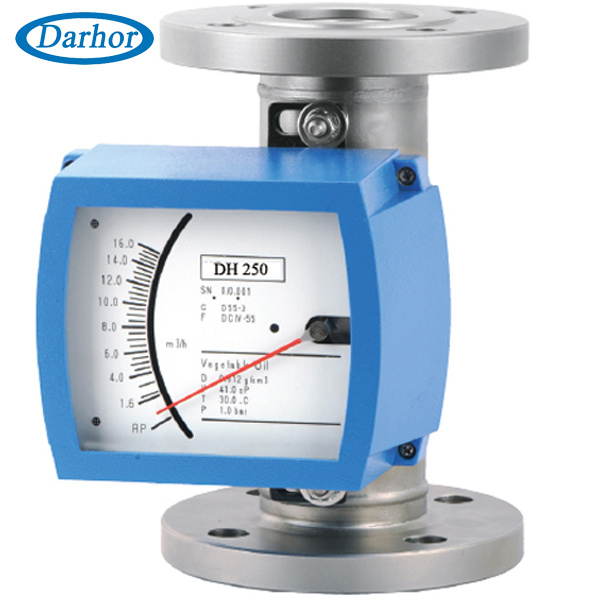

Meter Model | DH250 Series |
Flow range |
Water 2.5 l/h to 200 m3/h Air 0.07 to 4500m3/h (201.013bar) |
Flow span | 10:1 |
Accuracy |
Standard accuracy: 1.5% High accuracy: 1.0% Standard accuracy (PTFE-Liner): 2.5% High accuracy (PTFE-Liner): 1.5% |
Connections |
Flange connection Standard: DIN2501DN15-DN200 ) Special: DIN2512DN15-DN200 ANSI1/2-8 The GB JIS users needs Threaded fittings DIN11851SC40-SC80[1-1/2-3" ] According to demands of users |
Steam Jacket Connections |
Internal threads 1/2 NPT Flange connection DN15 PN40 DIN2501 According to demands of users |
Max.Allow. pressure | 250bar |
Temperature range |
Fluid temperature -40 to+200Standard type -20 to+125PTFE-Liner type -40 to+400High temperature type Ambient temperature -40 to+70 |
Materials |
SS304 , SS304L , SS316 , SS316L PTFE-Liner Hastelloy C Ti According to demands of users |
Protection class | IP67 |
Supply power | 12-28V DCtwo-wire systembattery power |
Ex-Design |
Prod Model: | DH250 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Pressure: | 1.6 Mpa or 4mpa |
Converter Type: | Integrated, Remote, Inserted /Flange, Cl |
Medium: | Conductive Liquid, Slurry |
Operating Temp. Range: | -10 to 130°c |
Configuration: | Non-Explosionproof & Explosionproof IP |
Power Supply: | AC or DC-Powered |
Operating Pressure: | 0.25, 0.6, 1.0, 1.6, 4.0mpa, (or Specified |
Signal Output: | Analog, Pulse |
Lining: | Rubber, PE, F40, PFA |
Sensor: | Tube/Flange |
Type: | Variable Area Flow Meter |
Accuracy: | >?à1% |
Principle: | Variable Area Type |
Measuring Principle: | Electrical Principles |
Measuring Media: | Liquid, Gas |
Size: | Dn15-Dn100 |
