Liaoyang Korican Machinery Co., Ltd. >> (KT) Fruit Microwave Dryer& Sterilizer/Microwave Drying and Sterilizing Machine

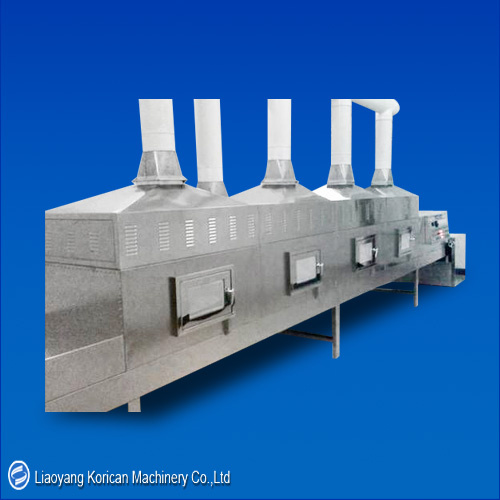

(KT) Fruit Microwave Dryer& Sterilizer/Microwave Drying and Sterilizing Machine

Name: (KT) Fruit Microwave Dryer& Sterilizer/Microwave Drying and Sterilizing Machine
Brand: China-Manufacturer-Directory.com
SKU: 701547622
Availability: InStock
Rating: 4.8 (107 reviews)

Supplier:	Liaoyang Korican Machinery Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	KT Fruit
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operational Method:	Continuous
Operation Pressure:	Atmospheric Dryer
Movement Way:	Combined
Structure:	Tunnel
Appearance Of Dried Sample:	Solidity
Heating Mode:	Microwave
Type Of Flow:	Belt Conveyor
Type Of Atomization:	Normally

Product Description

KT spice Microwave Dryer& Sterilizer/Microwave Drying and Sterilizing Machine

1. Application:

Microwave industrial tunnel baking & puffing equipment are widely use in the peanuts, sesame seeds, wheat, melon seed, sunflower seeds, peanuts, corn, soybeans, walnuts, almonds, chestnuts, pistachios, cashews, filbert and dried fruit etc; and for puffing of leisure food, pachyrhizus chips, potato chips, dried shrimps, fish maw and so on. Compared with the traditional production methods, microwave baked foods are crispy and delicious, products particle puffed full,natural color, beautiful appearance, and has insecticidal sterilization effect.

2. Structure:

The whole machine consists of stainless steel, and it adopts the combined and removable assembly module in several parts:
A.The main body frame;
B.Conveying part;
C.Microwave generator parts;
D.Microwave heating cabinet parts;
E.Microwave preventing leakage parts etc.

3.Reference technical parameters:

Power supply	380V±10% 50HZ±1% three-phase five-wire
Microwave Output Frequency	2450±50MHz
Microwave input apparent power	≤168KVA
Microwave output power	≥120KW
Microwave power adjustment range	0-30KW(adjustable)
Ambient temperature	-5-40°C
Relative humidity	≤80%, Surrounding environment:no corrosive gas, conductive dust and explosive gas
Overall dimension(LWH)	about106808401750 mm
Transmission speed	0-10m/min(adjustable)
Height of the inlet and outlet	60 mm
Microwave leak	accord with a country GB10436-89 standards(<5 mw/cm^2)
Equipment safety	accord with GB-5226Electrical safety standard accord with a country GB16798-1997 Food machinery

Model	Rated input power(KVA)	Microwave output power(KW)	Size LWH(mm)
KT-12	16.8	12	72008402050
KT-15	21	15	83008402050
KT-20	28	20	94008402050
KT-25	35	25	1050014401750
KT-30	42	30	1050014401750
KT-40	56	40	1050014401750
KT-50	70	50	1160014401750
KT-60	84	60	1270014401750
KT-70	98	70	1380014401750
KT-80	112	80	1490016651750
KT-100	140	100	1490016651750
KT-120	168	120	1710016651750
KT-150	210	150	2040017501750
