| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | EXW |
| Min Order: | 100/Piece |
| Pay Type: | T/T |

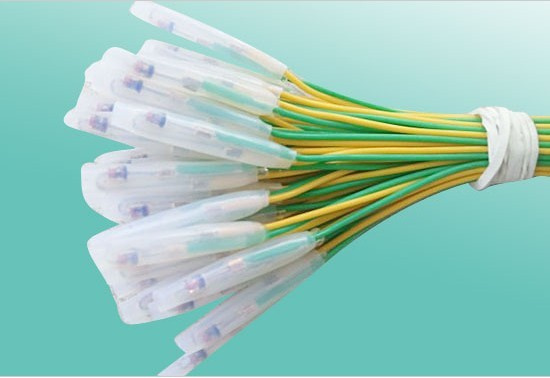

| Prod Model: | KTY84 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Africa,Mid East,Western Europe |
Quick Details:
| Place of Origin: Foshan China (Mainland) | Brand Name: KTY | Model Number: KTY84-130 |
| Usage: Temperature Sensor | Theory: Inductance Sensor | Output: Digital Sensor |
| color: black | ||
Specifications:
Measuring temperature range-50 ~ 300degree C
Precision grade of 0.5%
The Philips silicon resistance components
KTY series temperature sensor adopts imported Philips silicon resistance components elaborate and become, has high accuracy, good stability, reliability, product advantages of long life, applicable to small pipe and narrow space high precision measurement temperature field, to the scene of the industry can be continuous temperature measurement and control. The temperature sensor has been widely used in the solar energy water heater temperature measurement field, color printing equipment temperature control, car oil temperature measurement, engine cooling system, motor industry control system of overheating protection, heating control system, etc
Technical performance describe:
Measuring temperature range-50°C ~ 300°C
Precision grade of 0.5%
The Philips silicon resistance components
Nominal pressure about 1MPa
High temperature cable directly in the finals, facilitate and other electric equipment connection
Apply to all kinds of media industry pipe and narrow space equipment temperature measurement
Application range:
Water heater temperature fields, car oil temperature measurement, the engine cooling system, motor industry control.
Industry is mainly used in overheating protection, heating control system, power supply protection, etc.
Especially for temperature measurement linear demand is high scientific research and industry more suitable
KTY84-1 XX temperature sensor is silicon temperature sensor; its characteristic is temperature measuring range, small volume, and fast reaction. The performance characteristics is according to measurement range-40 °C 300 °C to + the temperature inside the change, the resistance value roughly from 300 Ω ~ 2700 Ω or so basic linear change
KTY83-1 XX temperature sensor is silicon temperature sensor; its characteristic is temperature measuring range, small volume, and fast reaction. The performance characteristics is according to measurement range-55 °C 175 °C to + the temperature inside the change, the resistance value roughly from 500 Ω ~ 2500 Ω or so basic linear change
KTY84-1 XX temperature sensor data parameters and Linear figure:
| symbols | Type | conditions | Min | Max |
| R100 | KTY84-130 | TEnvironment temperature =100°C IConstant current =2mA | 970 | 1030 |
| KTY84-150 | 950 | 1050 | ||
| KTY84-151 | 950 | 1000 | ||
| KTY84-152 | 1000 | 1050 | ||
| TEnvironment temperature | Working temperature range | -40 | +300 |
KTY83-1 XX temperature sensor data parameters and Linear figure:
| symbols | Type | conditions | Min | Max |
| R25 | KTY83-110 | TEnvironment temperature =25°C IConstant current =1mA | 990 | 1010 |
| KTY83-120 | 980 | 1020 | ||
| KTY83-121 | 980 | 1000 | ||
| KTY83-122 | 1000 | 1020 | ||
| KTY83-150 | 950 | 1050 | ||
| KTY83-151 | 950 | 1000 | ||
| KTY83-152 | 1000 | 1050 | ||
| TEnvironment temperature | Working temperature range | -55 | +175 |
Specifications
| Place of Origin: Germany | Brand Name: Philip | Model Number: KTY84-130 |
| Usage: Industrial | Theory: Temperature Sensor |
