Kwzg Box Type Microwave Vacuum Drying Machine
Product Specifications
| Prod Model: |
KWZG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Frequency Of Wave:2450±16: |
Rotating Speed of Disc:0-6 |
| Operational Method: |
Continuous |
| Structure: |
Rotary Type Drier |
| Operation Pressure: |
Vacuum Dryer |
| Movement Way: |
Spraying |
Product Description

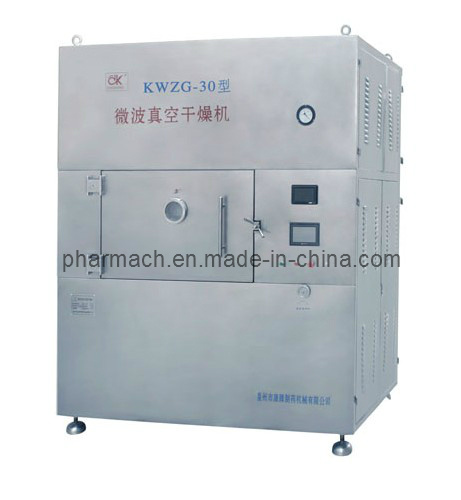

KWZG Box type microwave vacuum drying machine
Principle:
Monitoring of the temperature and flow of cooling water, thoroughly solve the problem Mainly used for quick low temperature drying process of Chinese traditional medicine extract, Chinese medicinal crop,
Traditional Chinese medicine and western medicine, pharmaceutical and healthcare, also widely used for efficient low
Temperature drying of food, biological engineering, chemical material, heat-sensitive material etc.
Thermal conduction speed of conventional vacuum drying method is slow and low efficiency, also it is hard to control
The temperature, heated material may be generated different temperature betwwen internal and external. While Microwave

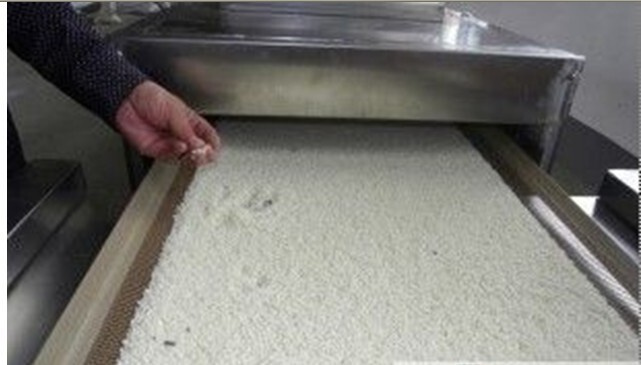

Vacuum drying is under vacuum conditions, materials is heated by microwave on a rotating disc, microwave heat the material
Directly, by this way both internal and external of the material can be heated at the same time, dispense with conduction and
Convection in order to realize the fast and high quality drying.
Feature:
1. Self cooling 1050W industry-class transfer is designed based on 24 hour of continuous working, have a strong power And very stable.
2. Mastering the assembling technology of direct water-cooled 1050W industrial-class magnetrons which is designed Based on 24 hours of continuous working.
3. Vacuum pump adopt water-ring vacuum pump, the vacuum adjusting device can adjust the vacuum according to different Material to realize the vacuum drying.
4. Infrared precisely meature the timely temperature of materials on each disc which ensure the accuracy of temperature Control, more conductive to improve the qulity.
5. Material orientation device can stop at the door of furnace chamber throughout, so that it is easy for operation and reduce the Labour intensity.
6. Develop a rectangular waveguide, with a small standing wave, which is easy for installation and can match the magnetrons better To make output power magnetrons higher.
7. Automatic calulation of microwave working time, by inputting some basic parameters of the materials, this machine will work out
The power of microwave and drying time needed, once time out, the material is can be taken out.
8. Automatic balance function can keep liquid material in the horizontal all the time, which can solve some tachnical problem as material Tilting, disc colliding and overturned.
9. Equipped with electronic monitoring device and vacuum mirrors double hole structure, which can real- time observe and monitor the status Of material, to know the features and drying level so that people can control and operate better. Shortage of pipe blockags and damage of magnetrons
By the over high temperature of water.
|
Model |
KWZG-03 |
KWZG-06 |
KWZG-10 |
KWZG-15 |
KWZG-20 |
KWZG-25 |
KWZG-30 |
KWZG-35 |
|
Working frequency of wave |
2450±16 |
|
Total Power of supply |
<6 |
<10 |
<15 |
<25 |
<30 |
<35 |
<40 |
<50 |
|
Output power of wave |
3controllable |
6controllable |
10controllable |
15 controllable |
20 controllable |
25 controllable |
30 controllable |
35 controllable |
|
Evaporative power |
2.4~3.6 |
4.8~7.2 |
8~!2 |
12~18 |
16~24 |
20~30 |
24~36 |
28~42 |
|
Rotating speed of disc |
0~6 |
|
Wave leakage |
<3 |
|
Flow of cooling water |
>5 |
>10 |
>15 |
>20 |
>25 |
>30 |
>40 |
>50 |
|
External dimension for reference |
1.05*0.7*1.4 |
1.3*1.15*1.65 |
1.66*1.4*1.85 |
1.66*1.65*2.05 |
1.86*1.75*2.15 |
1.9*2.05*2.5 |
2.1*2.05*2.5 |
2.3*2.05*2.5 |
Huizhou Pingfang Trading Co., Ltd. is a professional manufacturer and supplier for pharmaceutical machinery, pharmaceutical packing material company, who is standing firmly with a good reputation in the industry of China pharmaceutical machinery.
Our company focus on fabricating efficient and technically sound pharmaceutical machines that meets or exceed our customer' Expectations. Our vast product selection caters to numerous industries, worldwide. We are specializing in machinery including, pulverizes, mix, Granulate, tablet press machine, coating machine, soft capsules filling machine, hard capsules filling machine, ampoule filling and sealing machine, oral liquid filling production line, syrup machine, eyes drop filling machine, lyophilized powder production line, injectable vial powder filling production line, Ointment machine, Suppository machine, spray filling machine, pharmaceutical testing and experiment instrument, traditional Chinese medicine machine and packing materials. The packing materials including pharmaceutical PVC, PTP aluminum film, hard aluminum, vial, stopper, aluminum stopper, ampoule, glass, capsule, packing strap of suppository physic. Meanwhile, we can undertake turn key projects for conceptual design, process design, water treatment solutions, clean-room design, etc.
Because we stick to offer the high quality and competitive price to our customer, our machines have been exported many countries of world such as Singapore, Vietnam, Malaysia, Thailand, Bangladesh, USA, Russia, Pakistan, Nigeria, Chile, Germany, Denmark, Bolivia, Peru, Mexico, South Africa, Iran, Argentina, Canada, Australia, India, Kazakhstan, Turkey, Egypt, Brazil, Syria, Yemen and more. In order to offer the best quality, we manufacture our products in accordance with international standards, such as FDA, GMP, cGMP. We also be approved by CE, ISO certificate, too.
We have established business relationship with many directly customers and have many agencies from abroad.
We always stick to the principle that customers are the god, and quality is the first. Therefore, we stick to do all activities as per user' S demands.
Customer service including technical support, installation & commissioning after sale.
Welcome all of friends from abroad to our company and establishing good business cooperation.
