| Supplier: | Shijiazhuang Chentai Filter Paper Co., Ltd. |
|---|---|
| Price: | US $ 1800-2500/Ton |
| Min Order: | 5/Ton |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|
| Prod Model: | CA-A2135P-W02-C(85/15) |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

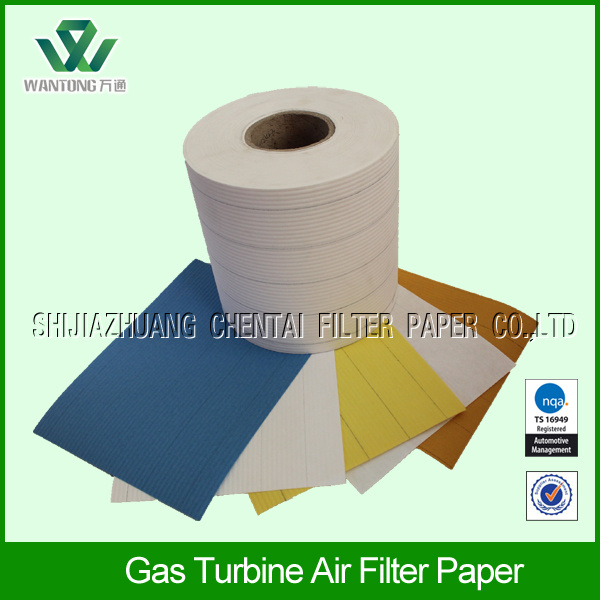

| Product Name: | Gas Turbine Air Filter Paper |
| Color: | White, Yellow, Pink, Blue, Red, Brown etc |
| Paper Type: | Plain or Corrugated |
| Roll Diameter: | 580mm/780mm |
| Roll Width: | 50mm-2200mm |
| Certificate: | ISO9001/Ts16949 |
| SHIJIAZHUANG CHENTAI FILTER PAPER CO.,LTD | |||
| TECHNICAL DATA SHEET | |||
| Impregnated Filter Paper | |||
| Application | Gas Turbine Air filter paper | ||
| Spec.No. | CA-A2135P-W02-C | ||
| Resin System | No cure | ||
| Property | Value | Unit | |
| Grammage | 135±5 | g / m 2 | |
| Thickness | 0.455±0.05 | mm | |
| Air Permeability | 200±50 | l / m 2 .sec | |
| Max. Pore Size | <68 | μm | |
| Average Pore Size | 60 | μm | |
| Burst Strength | >300 | kPa | |
| Polyester | 15 | % | |
| Corrugation Depth | 0.3 | mm | |
| Processing Recommendations: | |||
| Pre heating the paper before the pleating roll at a temperature of 40-70 degrees Centigrade will improve embossing and pleat shape. This can be applied using infra Red, the most efficient form of non-contact heating. | |||
| ISO9001:2008 |
Remarks: Technical properties shown above are typical values and do not constitute a specification. :,. All of the above recommendations are provided on the assumption that they will be assessed with regard to their suitability for intended end use. . |
||
| ISO9001:2008 | |||
