Product Specifications
| Prod Model: |
L-K102S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Monitoring System |
| Technology: |
Pan / Tilt / Zoom |
| Application: |
All-Round Monitoring |
| Feature: |
LCD Display |
Product Description
Application:
Used in the places where need quick control for the high speed dome camera, PTZ, motorized lens, outdoor wiper shield, etc.
Production Instruction:

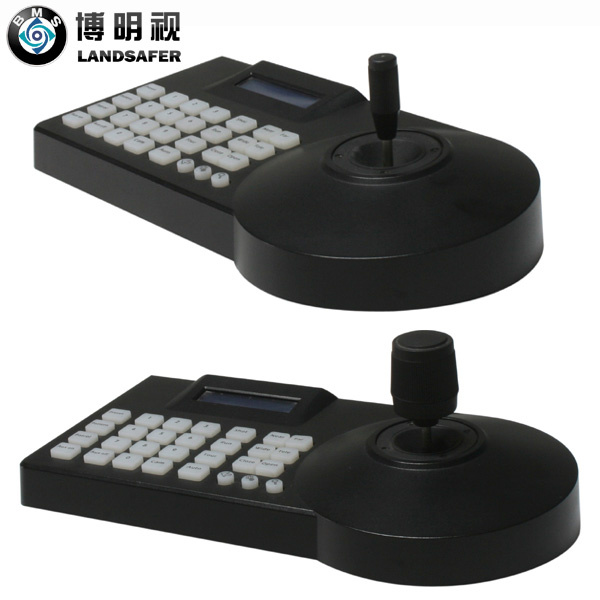

Control keyboard is the indispensable rear-end control device in integrated security system, it is specially designed for the quick control of speed dome camera and PTZ which are unable to control conveniently through DVR, let the actual control person control the front end more easily.
Specific Function:
1. Display the current control address's agreement and baud-rate real time
2. Refurbish the firmware program on line
3. Maximum sub-control: 16
Basic Function:
1. RS485 control bus, control 255 front end address and connect 128 devices in parallel simultaneously at the most
2. All input and output communication port use anti-radar design, powerful anti-jamming performance, the standard transmitting distance is 1200 meters
3. Good communication compatibility, built-in many kinds of agreements
4. Keyboard operation password on/off/lock function
5. Key-press warning on/off function
6. Speed dome camera infinitely variable speed control
7. LCD display
|
Model |
L-K102S(3D) |
|
Protocol |
Pelco-d, Pelco-d, Panasonic, Hikvision etc. |
|
Baud rate(bps) |
1200, 2400, 4800, 9600, 19200 |
|
Control Address |
Control 255 dome camera, decoder at the most, address code:0-254 |
|
Communication Mode |
RS485 half-duplex |
|
Cascade connection number |
16 sub-control at most, controller ID:0-15 |
|
Joystick |
3D(control: up, down, left, right, zoom) |
|
Interface Mode |
5PIN pressing line port |
|
Menu and Key-press |
English |
|
Warning Tone |
Key-touch beep on/off |
|
Power Supply |
DC 12V±10% |
|
Power Consumption |
6W MAX |
|
Working Temperature |
0°C-50°C |
|
Store Temperature |
-20-70°C |
|
Dimension(mm) |
420*260*170 |
|
Weight(Kg) |
3 |
