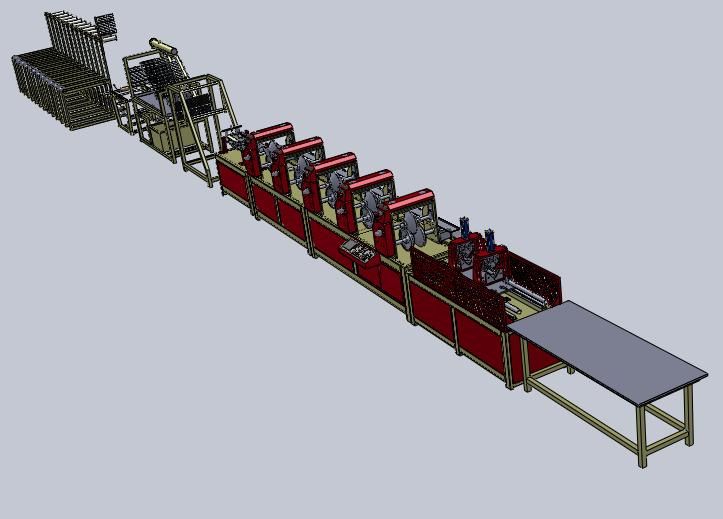

L Profile Paper Edge Protector Machine Paper Flat Board MachineryPaper edge protector machine SANPPL-120DLF can produce L profile paper protector and flat board through changing position of forming wheels and cutter, no need to changing tools.
It is one latest edge protector production line with PLC control, composite stands, pneumatic pressure adjustment and servo motor.
| Model | SANPPL-120DLF |
| Max. L protector size (mm) | 120 |
| Min. L protector size (mm) | 25 |
| Flat protector (mm) | 50-250 |
| Thickness (mm) | 3-6. Special order for max thickness of 8mm and 10mm |
| Applicable inner paper | 360-600g/m2 fluting paper or corrugating medium paper |
| Applicable surface paper | 175-250gsm craft paper |
| Core diameter of paper roll | 3" (76mm) (4" or other size must be confirmed when making order) |
| Max. quantity of Layer | 13 |
| Max. speed | 30m/min (normal working speed 20-25m/min) |
| Control system | PLC and servo motor+ touch screen (HMI) |
| Paper stands | Composite stands |
| Paper feeding and compounding | Step type with complex structure |
| Gluing system | Cascade type gluing system |
| Glue feeding | Automatic feedingby diaphragm pump |
| Transmission system | Coaxial transmission |
| Pressing wheels adjustment | Pneumatic pressing |
| Required air flow | 0.2m3/h, 0.8Mpa |
| Cut method | Hydraulic cutting |
| Quantity of cutter | 2 |
| Min cut length | 50cm |
| Cut tolerance | ± 1mm |
| Power supply | 12KW |
| Total weight (MT) | 5.5 |
| Dimension (m) | 24× 1.4× 1.925 |
| Operator | 2-3 |
San (Qingdao) Machinery Co., Ltd was established in March 2005, based on the tenets of providing professional services wholeheartedly, supplying trustworthy and high efficiency products, helping employees build strong selves and live a prosperous life, and contributing to the development and progress of human society. In conformity with the management philosophy of being responsible, leading and realistic, "San" people are summing up experience and innovating constantly in technology, production, sales and service, and sparing no effort to be a leading integrated service provider for paper machines and paper converting machines in China.
Following the working style of being attentive, rigorous, professional, persistent, and simple, carrying on the enterprising spirit of being a gentleman, promoting righteousness, following right way, doing right thing and making honest money, "San" people are optimizing service quality and improving technological level constantly. By years of hard work, San' S partners have been spreading throughout China and its products have been exported to the continents of Europe, America, Asia, Africa and Australia.
Facing the future filled with both opportunities and challenges, with marketing development and technology development as center and manufacture and sales as carrier, San aims to be a machinery-based, paper products-supplementing multi-industry group.
We are supplying the following machines:
1. Honeycomb paper production line and related honeycomb paper & paper panel converting machines, paper pallet machine, fire retardant paper production line.
2. Paper cup machine, paper plate machine, paper bowl machine and related die cutting machine.
3. Paper edge protector line and related paper edge protector machine, paper slitting and rewinding machine
4. Paper tube winding machine and tube cutter
5. Paper cement bag machine
6. Paper pulp mould machine
8. Paper plant equipment
9. Household paper machine, toilet paper machine, paper tissue machine
10. Paper testing instrument and equipment
11. Wet tissue machine
12. Creping paper machine
