Guangzhou Hipower Audio Co., Ltd. >> L06/8168-High Quality Professional Audio PA Speakers for Midrange of 6 Inch

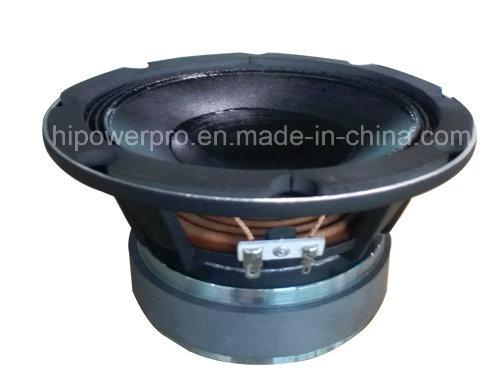

L06/8168-High Quality Professional Audio PA Speakers for Midrange of 6 Inch

L06/8168-High Quality Professional Audio PA Speakers for Midrange of 6 Inch
Supplier: Guangzhou Hipower Audio Co., Ltd.
Price: Negotiable/Piece
Min Order: 100/Piece
Quantity::
Trade Terms: FOB,EXW
contact supplier

Product Specifications

Prod Model: L06/8168
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Noise: <102dB
Hi-Fi: Not Hi-Fi
Operation Mode: Wire / Remote Control
Speaker Material: Metal
THD: <0.005%
Speaker System: Passive
Application: Stage
Certification: ISO
Monitor: None

Product Description



 L06/8168-High Quality Professional Audio PA speakers for Midrange of 6 inch

Line array woofer speaker

1) 100W continuous program power handling
2) 92dB sensitivity 1w/1m(hight SPL)
3) Extended mid range response up to 6Khz
4) 35mm(1.5'') cooper clad aluminum voice coil
5) Ideal for high quality midrange applications.



Hipower Audio is a professinal speaker factory with experience in the speaker field for 12 years. We make our own tranducers ,HF drivers and empty cabinets.



6.speaker Details:

General Specifications
Nominal Diameter170/6.5mm/inch
Rated Impedance8ohm
Nominal Power handling100Watts
Program Power200Watts
Sensitivity(lw/lm)92dB
Frequency Range120-6KHz
Minimum Impedance(Zmin)7.3ohm
Voice Coil Diameter35/1.5mm/inch
Voice Coil MaterialCopper Clad Aluminum
Number of layers2 inside/outside
Surround ShapeTriple-roll
BasketCast Aluminum
Flux Density1T
Magnet Material/MassCeramic

Thiele-Small parameters
Resonance frequencyFs123Hz
DC resistanceRe6.4ohm
Mechanical factorQms5.53
Electrical factorQes0.87
Total factorQts0.755
Mechanical complianceCms0.1618mm/N
Mechanical resistance
of suspension losses
Rms1.44mech-ohm
Effective Moving MassMms10.35gr
Half-space efficiencyEff0.943%
BL FactorBL7.648T.m
Equivalent Cas air loadVas4.63liters
Effective piston areaSd0.0143m2
Voice-coil inductanceLelK0.4287mH

Mounting Information
Overall Diameter174mm
Bolt Circle Diameter161mm
Bolt Hole Diameter5.5mm
Baffle Cutout Diameter151mm
Overall Depth95mm
Net Weight3kg
Guangzhou HiPower Audio Co., Ltd. is located in Section A Zhongcun industrial developing district, Zhongcun, Panyu, GuangZhou, China. As a head manufacturer of high quality professional speakers, our 10000sqm factory is outfitted with 6 customized production lines, allowing us to meet the needs of OEM partners.
Hipower specializes in manufacturing high-quality and reliable loudspeakers. Our product ranges consist of professional low frequency transducers, high frequency compression drivers, and Karaoke speakers.
In the R&D, our experienced engineers and technicians carry out research on new materials, state-of-the-art components and advanced product designs with the help of an anechoic chamber, test instruments and simulation software.
Since Hipower has been found, we have established a high standard of quality. Our management, manufacturing and quality standards are guaranteed by the ISO9001: 2000 system in 2008.
Hipower and all of our staff menbers always work hard in promoting our quality and are dedicated to building "Hipower" as an international brand. The long-term aim of Hipower "to stand in the leading place in maintain production quality and production prices in the reasonable level". Our products are very hot-sell and receive high recognition of our customers around the whole world.
We are looking forward to establishing long-term relationships with you.
Business Type: Manufacturer/Factory & Trading Company
Number of Employees: 45

International Commercial Terms: FOB
Terms of Payment: T/T, Western Union
Average Lead Time: Peak season lead time: one monthOff season lead time: one month
Number of Foreign Trading Staff: 1~3 People
Export Year: 2007-08-01
Export Percentage: 51%~70%
Main Markets: North America, South America, Southeast Asia/ Mideast, Domestic
Export Mode: Have Own Export License
Factory Address: Section a, Zhongcun Industrial District, Zhongcun, Panyu, Guangzhou, Guangdong, China
R&D Capacity: OEM, Own Brand(Hipower)
No. of R&D Staff: Less than 5 People
No. of Production Lines: 2
Annual Output Value: US$1 Million - US$2.5 Million
