L08/8282A-8 Inch Professional Audio Loudspeaker for Two Way System

L08/8282A-8 Inch Professional Audio Loudspeaker for Two Way System
Supplier: Guangzhou Hipower Audio Co., Ltd.
Price: Negotiable/Piece
Min Order: 30/Piece
Quantity::
Trade Terms: FOB,EXW
contact supplier

Product Specifications

Prod Model: L08/8282A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Noise: <102dB
Hi-Fi: Not Hi-Fi
Operation Mode: Wire / Remote Control
Speaker Material: Metal
THD: <0.005%
Speaker System: Passive
Application: Passive
Monitor: None

Product Description

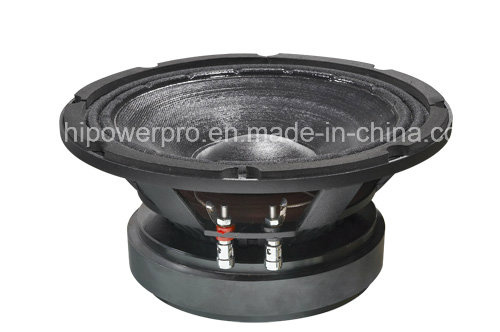

L08/8282A-8 inch professional audio loudspeaker for two way system

4.Professional speakers of other sizes are also available upon requests

5.Hipower Audio is a professinal speaker factory with experience in the speaker field for 12 years. We make our own tranducers ,HF drivers and empty cabinets.

6.Speaker's curves:





6. woofer's details:

General Specifications
Nominal Diameter200/8mm/inch
Rated Impedance8ohm
Nominal Power handling120Watts
Program Power240Watts
Sensitivity(lw/lm)93dB
Frequency Range60-4.1KHz
Minimum Impedance(Zmin)6.5ohm
Voice Coil Diameter50/2mm/inch
Voice Coil MaterialCopper
Voice Coil Winding Depth17mm
Number of layers2
Magnet gap depth8mm
Cone ShapeCurved
Surround ShapeM-roll
BasketCast Aluminum
Flux Density1.0T
Magnet Material/MassCeramic/1.23kg


Mounting Information
Overall Diameter211mm
Bolt Circle Diameter197mm
Bolt Hole Diameter5mm
Baffle Cutout Diameter186.5mm
Overall Depth95mm
Net Weight3.6kg

Thiele-Small parameters
Resonance frequencyFs60Hz
DC resistanceRe5.3ohm
Mechanical factorQms4.4
Electrical factorQes0.32
Total factorQts0.30
Mechanical complianceCms0.33mm/N
Mechanical resistance
of suspension losses
Rms1.85mech-ohm
Effective Moving MassMms21.6gr
Half-space efficiencyEff1.44%
BL FactorBL11.6T.m
Equivalent Cas air loadVas22.5liters
Effective piston areaSd0.035m2
Max.linear excursionXmax6mm
Voice-coil inductanceLelK0.88mH



Guangzhou HiPower Audio Co., Ltd. is located in Section A Zhongcun industrial developing district, Zhongcun, Panyu, GuangZhou, China. As a head manufacturer of high quality professional speakers, our 10000sqm factory is outfitted with 6 customized production lines, allowing us to meet the needs of OEM partners.
Hipower specializes in manufacturing high-quality and reliable loudspeakers. Our product ranges consist of professional low frequency transducers, high frequency compression drivers, and Karaoke speakers.
In the R&D, our experienced engineers and technicians carry out research on new materials, state-of-the-art components and advanced product designs with the help of an anechoic chamber, test instruments and simulation software.
Since Hipower has been found, we have established a high standard of quality. Our management, manufacturing and quality standards are guaranteed by the ISO9001: 2000 system in 2008.
Hipower and all of our staff menbers always work hard in promoting our quality and are dedicated to building "Hipower" as an international brand. The long-term aim of Hipower "to stand in the leading place in maintain production quality and production prices in the reasonable level". Our products are very hot-sell and receive high recognition of our customers around the whole world.
We are looking forward to establishing long-term relationships with you.
Business Type: Manufacturer/Factory & Trading Company
Number of Employees: 45

International Commercial Terms: FOB
Terms of Payment: T/T, Western Union
Average Lead Time: Peak season lead time: one monthOff season lead time: one month
Number of Foreign Trading Staff: 1~3 People
Export Year: 2007-08-01
Export Percentage: 51%~70%
Main Markets: North America, South America, Southeast Asia/ Mideast, Domestic
Export Mode: Have Own Export License
Factory Address: Section a, Zhongcun Industrial District, Zhongcun, Panyu, Guangzhou, Guangdong, China
R&D Capacity: OEM, Own Brand(Hipower)
No. of R&D Staff: Less than 5 People
No. of Production Lines: 2
Annual Output Value: US$1 Million - US$2.5 Million
