Lab Battery Coating Machine for Lithium Battery Electrode

Name: Lab Battery Coating Machine for Lithium Battery Electrode
Brand: china-manufacturer-directory.com
SKU: 691165852
Availability: InStock
Rating: 4.6 (25 reviews)

Supplier:	Linyi Gelon Lib Co., Ltd.
Price:	US $ 3500-5000/Piece
Min Order:	11/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

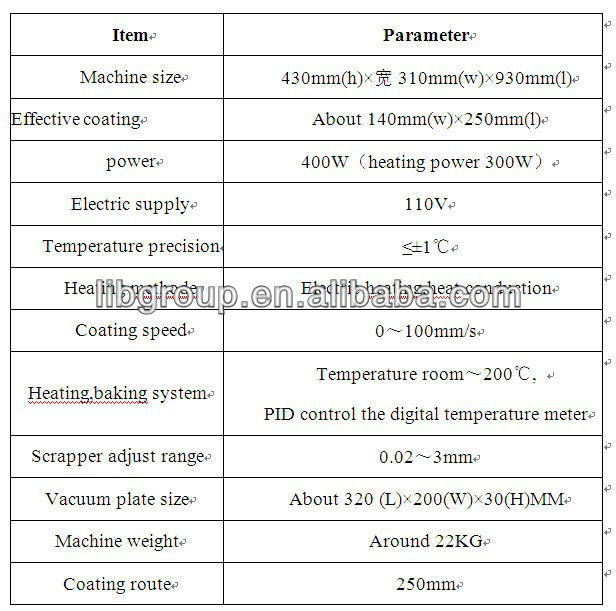

Product Specifications

Prod Model:	GN-AFA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Effective Coating:	140X250mm
Power:	400W
Temperature Control:	+-1c
Coating Speed:	0-100mm/S
Certification:	RoHS
Method Type:	Automatic
Type:	Battery Electrode Coating Machine
Application:	Battery Electrode

Product Description

Lab Battery Coating Machine for Lithium Battery Electrode Making

Introduction:

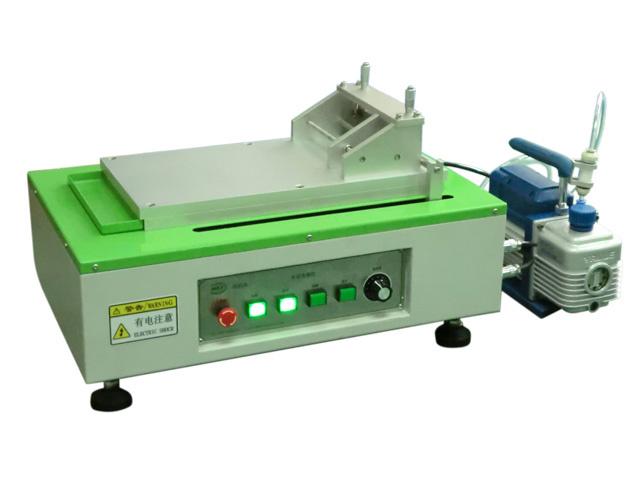

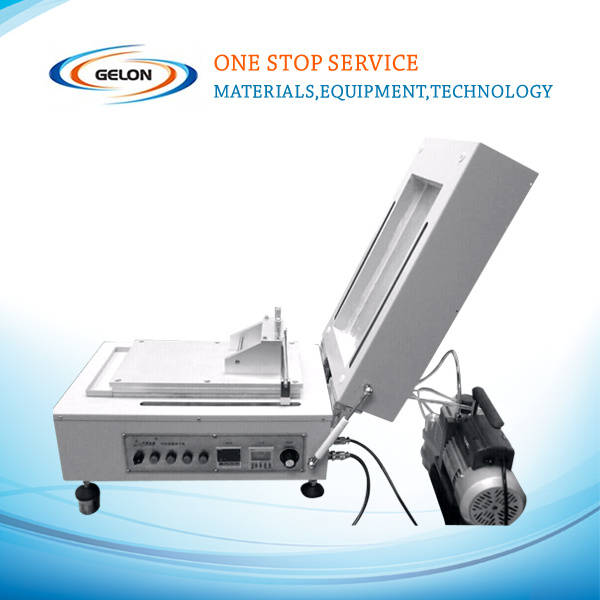

GN-AFA-III is a compact tape casting coater with a heating cover designed to produce films with consistent thickness. It has an unique driving system to produce smooth coating on all types of materials. The flat vacuum chuck is built in to hold substrate sheet in place, which is particularly useful when making thin coatings. One 100 mm width adjustable micrometer applicator (doctor-blade) and an oilless vacuum pump are included for immediate use. Heating cover with digital temperature controller can dry films after coating up to 200°C with a temperature accuracy of +/-1°C. This equipment can be used for researches on ceramic tape castings and Li-Ion battery electrode coating.

Features:

1. Pushing speeds can be varied between 0 and 100 mm/sec to establish the most suitable application conditions for all coating material.

2. Aluminum alloy flat vacuum plate with built in vacuum pump and allow you put on or release substrate quickly.

3. Built-in pushing bar for using micrometer adjustable applicator or frame film applicator.

4. Adjustable position switch allow you set up a stroke from 10 - 250 mm.

5. One 150 mm width micrometer adjustable film applicator is included.

6. Heating cover is built in with digital temperature controller for drying film within 200 oC within +/-1oC.

7. Vacuum pump is not included in the coater to avoid vibration. You can use your own vacuum pump or order optional vacuum pump from us.

8. 3/8 '' ID x 48" L hose is included for connecting pump and coater.

We could supply one stop solution ( turn key project) for lithium ion battery production line.

1.Full set of lithium battery materials,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

2.Full set of lithium battery equipments,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.

we can design the laboratory and production line,according to customer's request.
