Product Specifications
| Prod Model: |
DOS-808 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Overall Dimension: |
205(Length)X205(Width)X86(Height)Mm |
| Weight: |
1.0kg |
| Type: |
Measurement Type |
Product Description

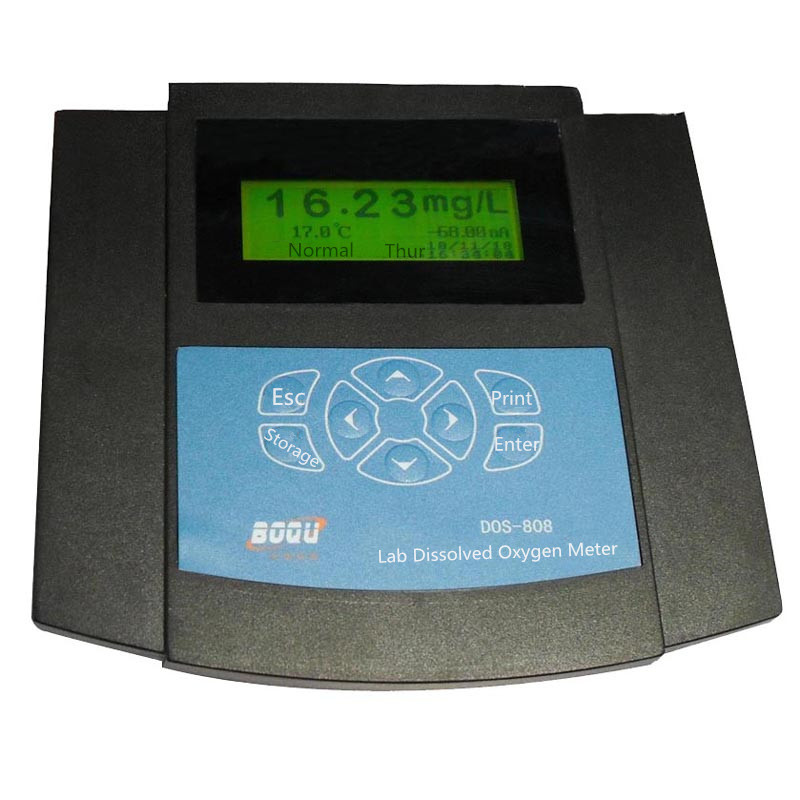

DOS-808 ppm level portable Desktop Dissolved Oxygen Meter is one of the electrochemical analyzers used in laboratory and a high-intelligence continuous monitor produced by our company. It can be equipped with the DOS-808F Polarographic Electrode, achieving a wide range ppm level automatic measurement. It is a special instrument used for testing the oxygen content of the solutions in the boiler feed water, condensate water, environmental protection sewage and other industries.
Features
Historical data: In measurement status, press the "Store" key, and the secondary meter will store the
measured oxygen concentration value and temperature value automatically.
Multi-parameter display: Display oxygen concentration value, input electric current, temperature, time, status simultaneously.
Calibration modes: In addition to the traditional one-point and two-point calibration, there are also manual zero point and slope inputs as well as the known oxygen concentration value calibration and other methods to meet the needs for the use in all circumstances.
| Technical Indexes |
| 1. Measuring range: 0~20.00 mg/L(automatic switching); 0~60ºC Saturation: 0-200.0% |
| 2. Resolution: 0.01 mg/L; 0.1ºC |
| 3. Intrinsic error of the whole instrument: mg/L: ± 0.5%FS; temperature:±0.5ºC |
| 4. Repeatability of the indication of the whole instrument: ±0.5%FS |
| 5. Stability of the indication of the whole instrument: ±1.0%FS |
| 6. Automatic temperature compensation range: 0~60ºC, with 25ºC as the reference temperature. |
| 7. Response time: <60s (98% and 25ºC of the final value),37ºC: 98% of the final value < 20 s |
| 8. Clock accuracy: ±1 minute/month |
| 9.Communication interface: RS232(optional) |
| 10. Data storage capacity: 3000 points |
| 11. Saving time of data under a continuous power-failure condition: 10 years |
| 12. Power supply: AC220V±1 0%, 50±1 HZ |
| 13. Overall dimension: 205(length)x205(width)x86(height)mm |
| 14. Weigh: l.0kg (secondary meter) |
| 15. Working conditions: ambient temperature: 0-60ºC; relative humidity <85% |
| 16. Operation temperature: 0-150ºC, high temperature resist electrode (customized). |
