Guangzhou ACLON Pro Audio Co., Ltd. >> Lab Gruppen 10000W Switching Power Amplifier (SV12)

Lab Gruppen 10000W Switching Power Amplifier (SV12)

Name: Lab Gruppen 10000W Switching Power Amplifier (SV12)
Brand: China-Manufacturer-Directory.com
SKU: 755835775
Availability: InStock
Rating: 4.5 (128 reviews)

Supplier:	Guangzhou ACLON Pro Audio Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	SV12
Markets:	North America,South America,Western Europe
Sv12:	4X1300W 2u Lightweight Power Amplifier
Type:	Professional Amplifier
Usage:	KTV System
Voltage:	AC 220V
Output Number:	4
Used For:	Professional
Conductive Mode:	D
Tube Type:	Transistor Amplifier
Sound Channel:	4.1

Product Description

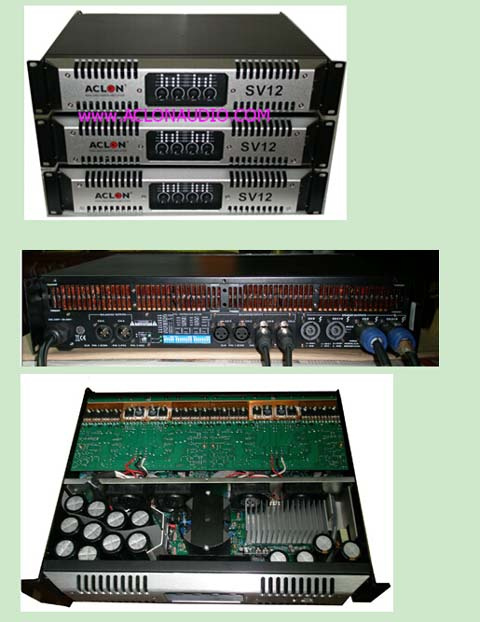

Digital switch amplifier SV12

Application: Commercial
Noise: <95dB Certification: CE
Size: 2u Except market: Global
Additional info:
Trademark: ACLON Packing: Carton
Standard: 483x410x88mm origin: CHINA
Production Capacity: 3000pcs/month

ACLON audio- Switching Power Amplifier- SV series specification
Model	SV-12	SV-8	SV-600	SV-1200
Output Power(20-20kHz, 1W with 1 kHz )	4 Channel	2 Channel	2 Channel	2 Channel
8ΩStereo Power(RMS)	1300WX4	1300WX2	600WX2	1200WX2
4ΩStereo Power(RMS)	2200WX4	2200WX2	1500WX2	1800WX2
2ΩStereo Power(RMS)	2600WX4	2600WX2	/	/
8ΩBridged Power(RMS)	4200WX2	4400W	3000W	3000W
4ΩBridged Power(RMS)	5000WX2	5000W	/	/
FrequencyResponse(+o/-0.3dB,1W/8Ω)	20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W	<0.1%
Signal-to-Noise Ratio	>112 dBA
Damping factor	>1000	>700	>600	>600
Channel separation (Cross talk) at 1 kHz	>70 dB
Input Connectors (per channel)	3-pin XLR, electronically balanced
Output Connectors (per channel)	Speakon or Binding Posts 2-pole
Class circuitry	Class TD	Class TD	Class AB	Class TD
Tour Class Protection	ACL, IGM, Auto Ramp, short circuit, DC voltage,
Tour Class Protection	turn-on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 230 V / 115 V nominal	150-260 V50/60Hz, / 70-140 V 50/60Hz selectable
Voltage Gain(dB)	23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance (unbalanced)	20 k Ohm (10k Ohm)
Level adjustment (per ch.)	Front-panel potentiometer, 31 position detente from -into 0 dB
Dimensions (H×W×D)	2U: 88×483×396mm
Packing dimension	180×560×500mm
Net weight (kg)	14	12	13	15
Gross weight (kg)	16	14	16	18

1. High performance with competitive price
2. Amplifier, active line array speaker, customized speaker is our strong points.

Amplifier product:

ACLON with you hand in hand, together, we will be stronger

Certificate:

Guangzhou ACLON PRO Audio Co., Ltd. working many years have rich experience and ability for OEM /ODM. Offering over 50 various kinds of professional audio products and monthly output up to 6 thousands pieces. We are the best manufacturer that you can trust in China.

We have power amplifier and loudspeaker production workshop. OEM and sell ACLON brand is our main business. We are as professional audio factory. We can best control product quality and cost.

ACLON factory offer you not only a varied range of quality amplifier and loudspeaker products but also offer you technical assistance, all at very competitive prices.

Distributors welcome for ACLON products and any OEM/ODM order is welcome.
