Product Specifications
| Prod Model: |
PBG-4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Water Content: |
≤1ppm |
| Oxygen Content: |
≤1ppm |
| Gas Purification Control: |
Manual / Automatic |
| Pressure Control: |
Pedal Pressure Control |
| Regeneration Of The Purification: |
Automatic |
| Touch Screen Display: |
Water/Oxygen Content |
| Lighting System: |
Shadowless Spotlights Available |
| Vacuum Pump: |
Provide Vacuum Power |
| Water Analyzer: |
Michell England |
| Oxygen Analyzer: |
Aii Imported From America |
| Type: |
Glove Box |
Product Description
Overview

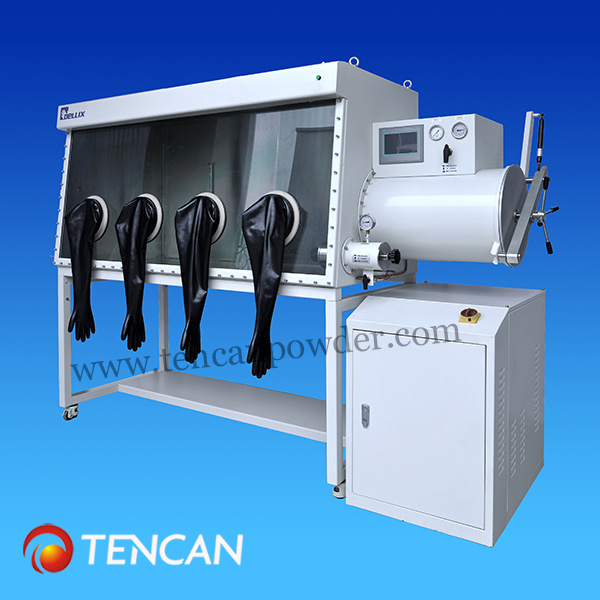

Instructions of Model No. Of Glove Box With Purification System
Quantity of Gloves: 2, 3, 4, 6, 8 gloves are available.
S/D: D indicates double-side operation,S indicates single operation
800: 800 indicates width of the box bottom, unit: mm
GBP: GBP is abbreviation of Glove Box With Purification System
Model List of Tencan Glove Box with Purification System
No. | Model No. | Box Size | Total Size | Operating Sides | Numbers of Gloves | Remarks |
| 1 | GBP800-2 | 1200×800×930 | 1915×830×1830 | Single | 2 | Single or Double; Purification Columns at Options |
| 2 | GBP800-3 | 1500×800×930 | 2215×1060×1830 | Single | 3 |
| 3 | GBP800-4 | 1900×800×930 | 2615×1060×1830 | Single | 4 |
| 4 | GBP1000S-2 | 1200×1000×930 | 1915×1060×1830 | Single | 2 |
| 5 | GBP1000D-4 | Double | 4 |
| 6 | GBP1000S-3 | 1500×1000×930 | 2215×1060×1830 | Single | 3 |
| 7 | GBP1000D-6 | Double | 6 |
| 8 | GBP1000S-4 | 1900×1000×930 | 2615×1060×1830 | Single | 4 |
| 9 | GBP1000D-8 | Double | 8 |
| 10 | GBP1200S-2 | 1200×1200×930 | 1915×1260×1830 | Single | 2 |
| 11 | GBP1200D-4 | Double | 4 |
| 12 | GBP1200S-3 | 1500×1200×930 | 2215×1260×1830 | Single | 3 |
| 13 | GBP1200D-6 | Double | 6 |
| 14 | GBP1200S-4 | 1900×1200×930 | 2615×1260×1830 | Single | 4 |
| 15 | GBP1200D-8 | Double | 8 |
Notes:
Cabinet water and oxygen content under the standard condition: ≤1ppm (Note: Standard condition is that an atmospheric pressure, constant temperature of 20 degree).
Leakage Rate: ≤0.05Vol%/ h (subject to change value of oxygen content in box)
Used Gases
a) Working Gases: N2,Ar,He and etc.
b) Controlling Gases: Compressed air or Inert Gas.
C) Restoring Gases: Mixed gas of working gas and hydrogen.
Restoring gas is as same as working gas if there is only water removal system or oxygen removal system.
Remarks: All Single side boxes of 4 gloves are assembled glove box. Numbers of assembled box can be ordered as per customer's needs. Quantity of purification column is also designed to be matched according to customer's requirements. |
|
|
|
|
|
|
Applications:
Anhydrous, anaerobic and clean, ultra-clean work environment;
R&D and production of lithium-ion battery and battery materials;
Semiconductor, nano materials, film preparation, catalyst agent, super capacitor, special lamps, laser welding, TIG welding, resistance welding.
Working Principle of Glove Box with Purification System
Glove box and gas purification system forms a sealed environment, filled with inert gas or nitrogen to the cabinets, and circulation to remove internal active substances, allowing the system always maintain high cleanliness and high purity inert gas environment (water and oxygen contents are below 1ppm)
1. Basic Configuration:
Vacuum Pump, Controlling System, Foot-pedal Controller, Circulating Air Pump, Pressure Sensor, Touch Screen.
2. Optional Configuration:
Water Sensor, Oxygen Sensor, Organic Solvent Absorber.
3.We offer best solutions of other gas purification systems.
