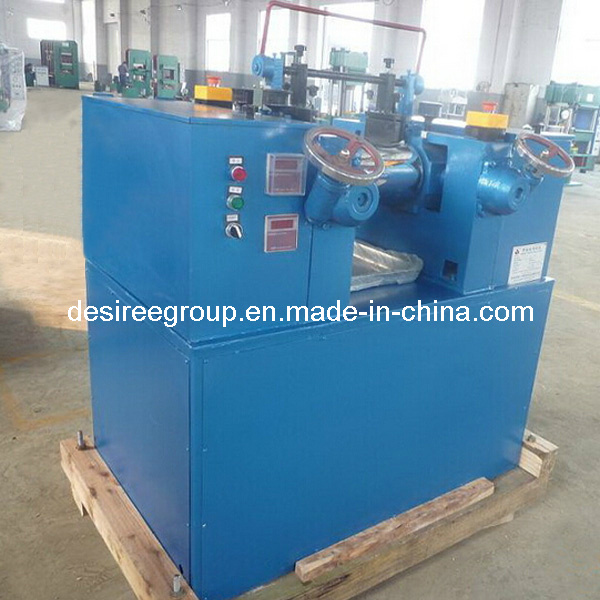

Lab Purpose Rubber Two Roll Mill Machinery

Name: Lab Purpose Rubber Two Roll Mill Machinery
Brand: China-Manufacturer-Directory.com
SKU: 691053062
Availability: InStock
Rating: 5 (38 reviews)

Supplier:	Qingdao Desiree Group Rubber Machinery Co., Ltd.
Price:	US $ 3500-4900/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	XK-160
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type Of General Rubber Machinery:	Mixing Roll
Type Of Tire Machinery:	Rubber Regeneration Machinery
Certification:	ISO, CE
Name:	Rubber Machinery
Roll Working Diameter:	160mm
Roll Working Length:	320mm
Roller Structure:	Hollow Type
Linear Velocity Of The Front Roll:	8.95m/Min
Friction Ratio Of Rolls:	1:1.35
Type:	General Rubber Machinery
Warranty:	One Year

Product Description

Lab Purpose Rubber Two Roll Mill Machinery

Function:
For rubber mixing in laboratory.

Features:
1. Rollers working surface: Made of alloy chilled iron, hard and anti-wear.

2. Nip adjustment: Adjusted by manual, the adjusitng range is 0.1-4.5mm.

3. Safety device: With shear pad protecting device. The pad will be broke when the machine overload, to avoid the damage of other important components.

Advantages:
1. Compact structure, easy to install.
2. High efficiency.
3. Long using life.

Our Services:
1. One year warranty for free.
2. Lifetime technical support.
3. Any question, we will give feedback within 24hourrs.

Any question about our products, please feel free to contact with me.
We are always pleased to serve you at any time.

Roller working diameter(mm)	Φ160
Roller working length(mm)	320
Roller structure	Hollow type
Linear velocity of the front roll(m/min)	8.95
Linear velocity of the front roll(m/min)	12.08
Friction ratio of rolls	1:1.35
Roller bush lubrication type	grease lubrication
Max. nip of rolls(mm)	4.5
Main motor power(kW)	5.5
Main motor rotary speed(rpm)	980
Feeding capacity per batch(kg)	1~2
