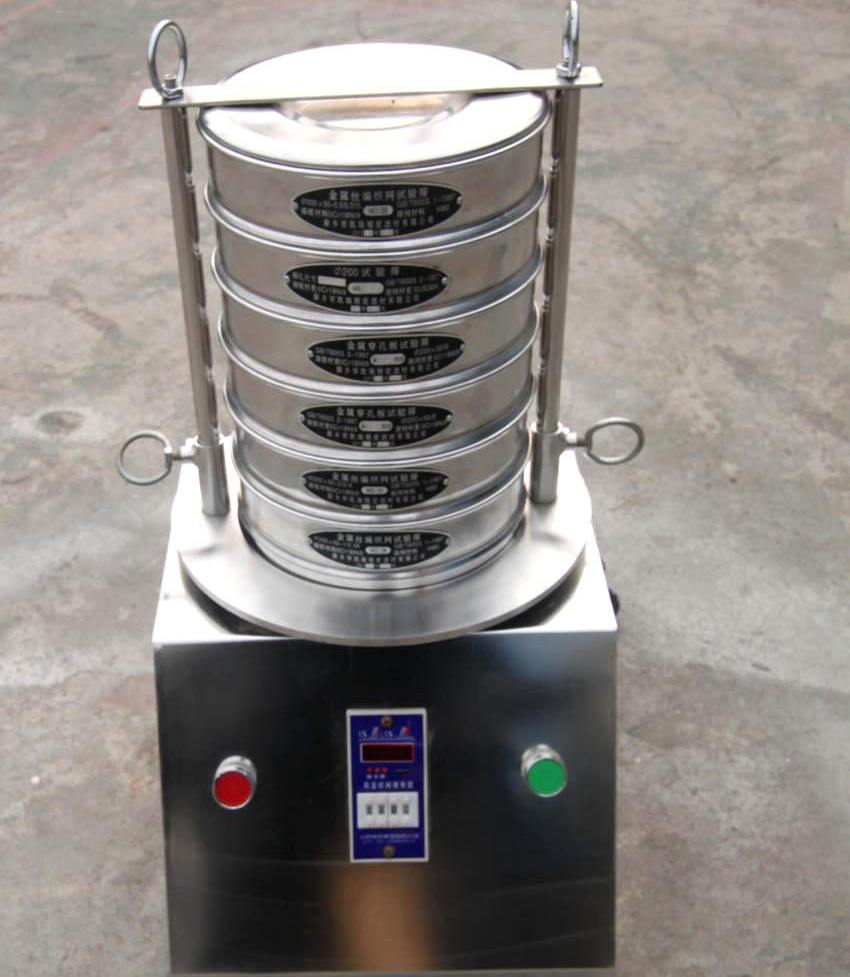

Lab Test Sieve, Vibration Test Sieve, Sieve Testing Instrument
Product Specifications
| Prod Model: |
200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frame & Screen Materials: |
Stainless Steel 304 |
| Screen Mesh: |
Custom-Built |
| Column: |
up to 8 Layers |
| Screen Diameter: |
200 or 300mm |
| Type: |
Circular |
| Object: |
Chemicals |
| Shaft Number: |
Single |
| Condition: |
New |
| Works: |
Mechanical Shaker |
Product Description
Introduction Of Sieve Analysis:
A typical sieve analysis involves a nested column of sieves with wire mesh cloth (screen).
Column Of Sieve Screen:
A representative weighed sample is poured into the top sieve which has the largest screen openings. Each lower sieve in the column has smaller openings than the one above. At the base is a round pan, called the receiver.
Application Of Sieve Shaker:
The column is typically placed in a mechanical shaker. The shaker shakes the column, usually for some fixed amount of time.
Parameters Of Test Sieve:
| No | Name | Unit | Parameters |
| 1 | Sieve diameter | Mm | Φ200 |
| 2 | Screen size | Mm | 5mesh to 635mesh
(4mm-0.020m) |
| 3 | Power | Kw | 0.12 (0.15common motor) |
| 4 | Noise | Db | 63-80db |
| 5 | Amplitude | Mm | 0-3mm |
| 6 | Rated speed | Rpm | 1400 |
| 7 | Overall size | L*H*W | 320*350*400+n*50 |
| 8 | Voltage frequency | V; Hz | 220;50/60hz |
| 9 | Wet weight | Kg | About 37kg |
Features Of Test Sieve:
(1) Up to 8 Iinterchangeable stainless steel screen of 5-635 mesh;
(2) 1-60 minutes time set under automatic control;
(3) Apply to any powder, liquid and granular material;
(4) Sieve shaker set includes several sieves, a lid and catch pan. Sieves are also sold separately.
Xinxiang DaZhen Sift Machine Co., Ltd, located in Xinxiang industrial zone, is an SGS audited enterprises engaged in R&D, production and sales of vibrating screen equipments, grain cleaning and grading machine, bucket elevator, belt and auger conveyors, vibration motor etc.,
Our company owns an experienced technical team, with more than 100 workers and 30 engineers. We have two production bases, with all kinds of mechanical processing, Sheet metal forming, and welding equipment.
Our main products include:
Vibrating screen series: Ultrasonic vibrating screen, rotary vibration sieve, flange type rotary vibration sieve, gate vibration sieve, sieve for ceramic industry, test sieve, linear vibrating screen, mining vibration screen, high-efficient heavy-duty sieve, round vibration sieve, sieve, sieve dehydration, strokes such as linear sieve, hot griddle;
Lift series: Vertical vibration of elevator, bucket elevator;
Conveyor series: Screw conveyor, belt conveyor, belt conveyor, vibrating conveyor, high temperature material conveyor, long and high temperature conveyor;
Feeder series: Reciprocating vibrating feeder, vibrating feeder motor, electromagnetic vibrating feeder, vibration motor, vibration occlusion device, etc.
Products are widely used in chemical, food, medicine, environmental protection, ceramic, foundry, construction, mining, abrasive, etc. Products are exported to Germany, Russia, South Korea, Japan, Korea, Vietnam, Singapore, Indonesia and other European and American countries and East Asia, Southeast Asia all over the world.
With 20 years experiences, our company insist on "Best Quality, Excellent Service, Advance Techniques, Continuous Innovation", we have obtained trust and good reputation from our customers. We also establish an impeccable service system to solve problems for customers. We believe you will also appreciate us for our quality products and best service after a period cooperation with us.
