Product Specifications
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Machine Name: |
Lab Vertical Tensile Strength Tester |
Product Description

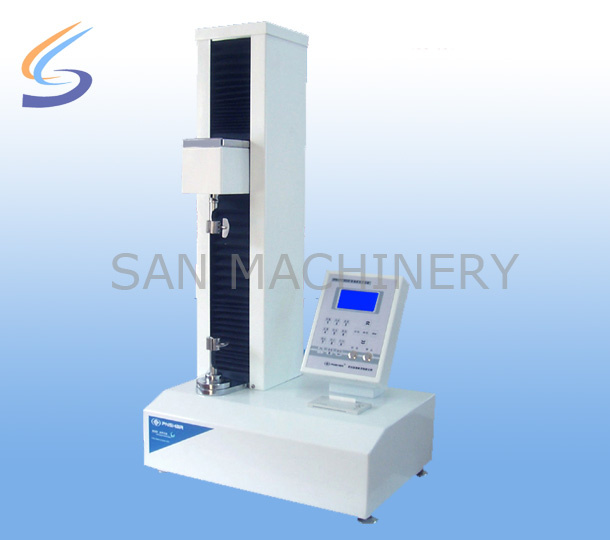

Lab Vertical
Tensile Strength Tester Tensile Testing Equipment1. Instruction:
Our vertical
tensile tester is a new type of testing equipment developed by our company according to the specification of ISO and National standard. With mechanical and electrical integration configuration, the instrument is well-designed using modern mechanical design theory, human engineering design criteria and advanced double CPU micro computer processing technology. It is a new generation of tester with innovative design, convenient using, excellent performance and pleasing appearance.
1.1 Tensile force, tensile strength, fracture length, tensile energy absorption, tensile index, tensile energy absorption index of paper
1.2 Tensile force, tensile strength, peel strength and elongation of foil and aluminum polymer tape
1.3 Tensile strength, elongation and tensile modulus of elasticity of plastic membrane
1.4 Heat-sealing strength, tensile strength and peel strength of food packing bags
1.5 Adhesive strength, edge strength, tensile strength and elongation of sanitary napkins
1.6 Peel strength and tensile strength of pressure sensitive adhesive tape
1.7 Fracture strength and elongation of synthetic fiber
1.8 Easy slide degree of pulling chain.
2. Application:
Paper, Newsprint, Cartons board, Packaging Papers, Liner, Medium, Foils, Low elongation films, Plastic film
3. Standards:
Meets ISO2872\ISO2874\GB/T4857.3\GB/T4857.4...
4. Specifications:
1. Power supply: AC220V± 10% 2A 50Hz
2. Measuring range: 4 options: 0~30N /0~100N/0~300N/0~500N
3. Tensile velocity: 1.0~400.0 mm/min (Can be adjusted digitally)
4. Interval of clamping heads: 20~350 mm (Can be set digitally)
5. Minimum distinguishhability: 0.1N (When 0~30N, the distinguishability is 0.01N)
5. FEATURES
1. Vertical structure with selectable velocity between 1~400mm/min
2. Large tensile running distance. It can elongate for 350 mm.
