Product Specifications
| Prod Model: |
EV-3020 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| High Precision:(3+L/200)Micron: |
0.5 Micron Linear Scale |
| Travel: 200mm*100mm: |
Travel: 300mm*200mm |
| Travel: 250mm*150mm: |
Travel: 400mm*300mm |
| Travel: 150mm*100mm: |
Accuracy:(3+L/200)Micron |
Product Description
Usage:

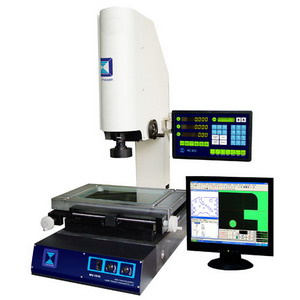

Lab Vision Measuring Instruments EV-3020 is a photoelectric measuring system with high precision and efficiency. This non-contact optical measurement device is composed of a series of precision components, such as Color CCD Camera with high resolution, continuous Zoom Lens, Precise Linear Scale, USB exchanger box or Metrology Counter (DRO), 2D Metrology measuring software and high precision Working Table.
Lab Vision Measuring Instruments EV-3020 is mainly applied in 2D measurement, sometimes in 3D as well. This non-contact optical measurement device is widely used in different kinds of precision finishing industries, such as electronic part, precision mold, precision tool, spring, screw processing, plastic, rubber, oil seal valve, camera part, pedal cycle part, motor part, conductive rubber and PCB processing.
Lab Vision Measuring Instruments EV-3020 is a must for the metric room, laboratory or workshop of various sectors concerning to machinery, electronics, gauging instrument, watch, plastic and light industry as well as academies, research institutions and measurement-inspecting department.
You can see it, we can measure it!
Features:
1. DIN 00 grade granite table master base guarantees strength, accuracy and stability
2. High Precision T-slot stages are available
3.0.5µ M high resolution linear encoder
4. New DC-3000 geometric DRO
5. LED ring light surface illumination and adjustable LED contour illumination
6. USA Navitar brand Superb full-color high resolution image with zoom optics
7. Japan 1/2' High resolution S-video color CCD camera
8. Sighting device: Cross-hair generator
9. Connection: RS232 or USB output and metrology software
10. One-click edge detection function
| Technical Data: |
| Model No. | EV-1510 | EV-2010 | EV-2515 | EV-3020 | EV-4030 |
| Travel-X.Y axis | 150*100(mm) | 200*100(mm) | 250*150(mm) | 300*200(mm) | 400*300(mm) |
| Travel-Z axis (mm) | 150 | 150 | 150 | 150 | 150 |
| Resolution | 0.5µm | 0.5µm | 0.5µm | 0.5µm | 0.5µm |
| X,Y-axis accuracy | (2.5+L/200)µm | (2.5+L/200)µm | (2.5+L/200)µm | (2.5+L/200)µm | (2.5+L/200)µm |
| Repeatability | 0.003mm | 0.003mm | 0.003mm | 0.003mm | 0.003mm |
| Stage size (mm) | 354*228 | 404*228 | 450*280 | 500*330 | 606*466 |
| Stage load capacity | 10kg | 10kg | 15kg | 15kg | 20kg |
| Illumination | Contour illumination: LED lamp, Surface illumination: LED ring light |
| Dimension L*W*H | 540*560*850 | 540*560*850 | 760x600x900 | 760x600x900 | 970x670x940 |
| Net weight | 98kg | 108kg | 120kg | 138kg | 238kg |
| Standard Delivery: |
| Metrology 2D measuring software | Image Capturing Card |
| USB transfer Box(for Linear Scale) | 1/2'' Japan brand High resolution color camera |
| USA Navitar zoom lens 0.7x-4.5x (Image magnification:30X~190X) | LED cold Light source |
| Optional Delivery: |
| 0.5x additional lens | 2x additional lens |
| Metrology Counter (DRO) | Calibration gauge |
| Renishaw (U.K.) MCP touch trigger probe set | PC and monitor |
| Standard scale | Learning kit |
