Product Specifications
| Prod Model: |
BSS-1538C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Special Requirement: |
Customized |
| Application: |
Drink |
| Packaging Materials: |
Film |
Product Description
BSS series label shrink machinery are mainly used to shrink label of product in bottle shape, can shape or barrel shape with glass bottle, plastic bottle or paper cup.
The label either on the top, in the middle, at bottom of bottom or wrapping the whole bottle is able to be shrank with different type model.
It is widely applied in the industry of food, medicine, cosmetic and pesticide, etc.
Remark:
-BSS-1538B and 1538D is to shrink label in whole bottle. B model has longer shrink tunnel than D model and has stainless steel conveyor.

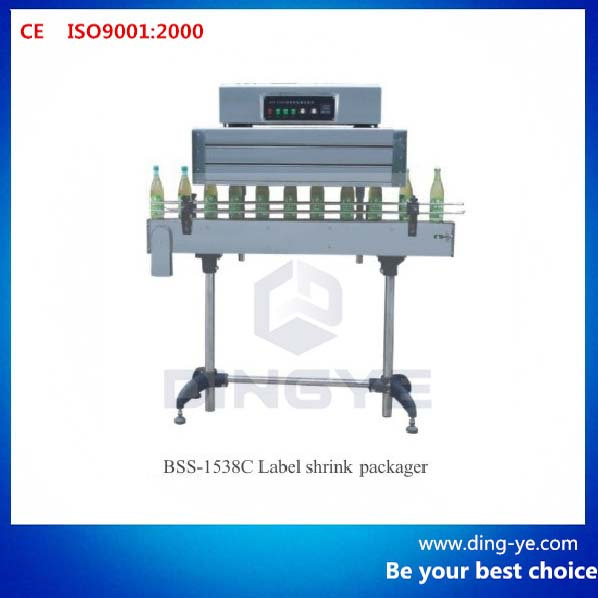

-BSS-1538C is to shrink label on the top of bottle. The height of shrink tunnel is adjustable.
Model
| BSS-1538B
| BSS -1538C
| BSS-1538D
|
Power
| 9 KW
| 7 KW
| 8 KW
|
Max. packing size (mm)
| Φ 105*350H
| Φ 105*350H
Adjustable
| Φ 160*350H
|
Size of shrink tunnel (mm)
| 1000*150*380
| 1000*150*150
| 800*200*380
|
Conveyor motor
| AC90W/220V
| AC90W/220V
| DC50W/220V
|
Conveyor speed
| 0 -10m /min
| 0 -10m /min
| 0 -10m /min
|
Loading weight
| 15kg
| 15kg
| 15kg
|
Conveyor
| 812 S/S plate
| 812 S/S plate
| Teflon net
|
Weight
| 96 kg
| 90 kg
| 66 kg
|
Dimension (mm)
| 1500*350*1500
| 1500*350*1500
| 1500*400*1520
|
Packed size (mm)
| 1610*1050*490
| 1610*1030*490
| 1610*510*990
|
