Product Specifications
| Prod Model: |
F-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Control: |
Automatic |
| Current: |
AC |
| Laser Type: |
Fiber Laser |
| Usage: |
Plastic |
Product Description

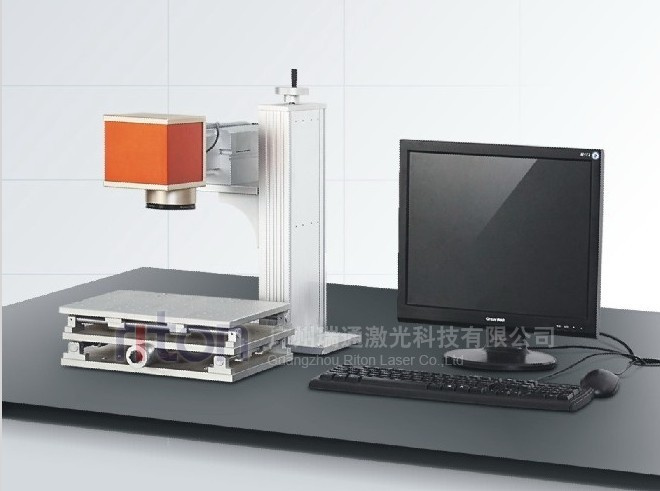

Our F-20 tags special fiber laser marking machine adopts the advanced international laser technologies and equipments, with the most sophisticated IPG laser generator from German and Germany SCANLAB scanner head, with no trouble average life of 100000 hours, maintenance-free, etc. It has widely used in kinds of industries worldwide.
Main Features:
1. Our tags special fiber laser marking machine combines with the air pump and dust collector. The air pump drives the tags marking device and make the devices working smoothly. The dust collector cleans the dust during the tags marking. Automatic loading and unloading device makes high efficiency during the marking. It can contain 1000 pieces tags in one loading.
2. This fiber laser marking machine has high marking speed, reaching to 7000mm/s, which can greatly reduce the production time and improve the efficiency.
3. The minimum line width of this fiber laser marking machine is 0.01mm, which can satisfy various your requirements for precision.
4. Fiber laser marking machine is not necessary to adjust and change the optical lens, compared with diode side-pump laser marking machine, which greatly save the time and reduce the use cost.
5. Compared with other laser marking machines, fiber laser marking machine has excellent beam quality, small optical spots, and high repetition precision.
6. Laser marking machine has no any distortion for work pieces, do not damage the products, little thermal influenced areas, which can guarantee the marking quality.
7. Low operation cost, the entire machine just consumes 600W power, rather economical and energy saving.
8. Environment protection, without any damage to the environment, using the dust collector to clean the dust.
9. HE-NE red light positioning, electric lifting for laser optics, more convenient to mark tags.
10. Powerful computer system makes user easy to learn and operate.
11. Good laser mode, long working life (about 100, 000 working hours), perfect laser output stability, suitable for the requirements of long continuous work...
12. This tags fiber laser marking machine is little maintenance, almost maintenance-free machine.
PS: We are specialized in providing proper fiber laser marking machines according to your special products.
Application fields:
This tags special fiber laser marking machine mainly used in tags, labels, templates marking. Including metal and non-metal materials.
|
Model |
F-20 |
|
Max. laser power |
20W |
|
Laser wavelength |
1064nm |
|
Beam quality |
M2< 1.8 |
|
Output stability |
2% |
|
Pluse width |
90-120ns |
|
Single impluse energy |
1mJ/20KHZ |
|
Min. line width |
0.01mm |
|
Min. character height |
0.2mm |
|
Repeat accuracy |
0.002mm |
|
Marking speed |
≤ 7000mm/s |
|
Cooling |
Air cooling |
|
Power supply |
AC220V/50HZ |
|
Machine Dimension |
1300mm*900mm*2000mm |
