Product Specifications
| Prod Model: |
GM-06 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Two Angles Gloss Meter |
| Model: |
GM-26 |
| Display: |
4 Digits Backlit LCD |
| Measuring Geometry: |
20/60 Degrees |
| Range: |
0.1~200 Gloss Units |
| Gloss Units: |
Gu |
| Accuracy: |
±1.0 Gu |
| Resolution: |
0.1gu |
| Repeatability: |
0.5gu |
| Measuring Area: |
7X14mm(Ellipse) |
Product Description

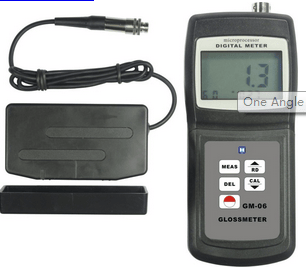

Laboratory Equipment One Angles Gloss Meter (GM-06)
Usage:
Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface, measurement (chrome plating), Inspection of paint protection and waxing, Auto-body paint inspection, Surface inspection of plastic moldings, Evaluation of detergents and washers, Checking masonry and washers, Checking building exteriors.
Features:
* Accurate measurement, good repeatability
* Small in size, easy to carry.
* Auto calibration.
* Intelligent design, rapid measurement.
* Able to store 254 groups of measurements.
* Backlight display, suitable for low light environment.
* Use "USB data output" and "RS-232 data output" to connect with PC.
* Provide "Bluetooth ™ data output" choice.
Technical data:
| Display | 4 Digits Backlit LCD |
| Measuring Geometry | 60 Degrees |
| Range | 0.1 ~ 200 Gloss Units |
| Gloss Units | GU |
| Accuracy | ± 1.0 GU |
| Resolution | 0.1 GU |
| Repeatability | ± 0.5 GU |
| Measuring Area | 7 x 14 mm(Ellipse) |
| Data Memorized | 254 Groups |
| Working Condition | Temperature: 0 ~ 40 °C Humidity: < 85 % |
| Power Supply | 4 x 1.5v AAA size (UM-4) battery |
| Dimensions | Unit: 156 x 67 x 28 mm |
| External Probe: 58 x 28 x 108 mm |
| Weight | 190 g (Not Including Batteries) |
| International standard | ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807, JJG696-2002. |
Standard accessories:
1. Main unit
2. Holder with calibration standard
3. External probe
4. Optical cleaning cloth
5. Carrying case
6. Operation manual
Optional Accessories:
1. USB, RS-232 data cable with software
2. Bluetooth data output with software
