Laboratory Instrument Upright Trinocular Metallurgical Microscope (LM-302)
| Price: |
US $ 1-1300/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |

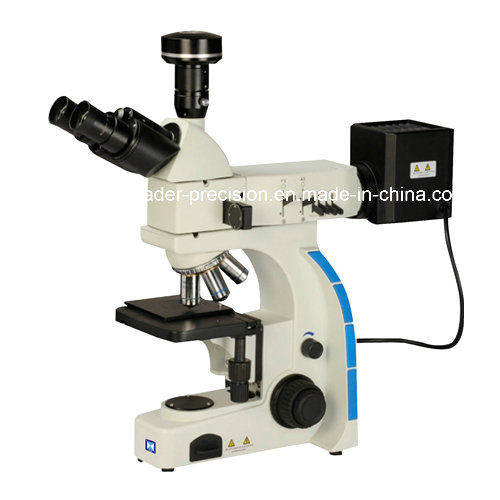

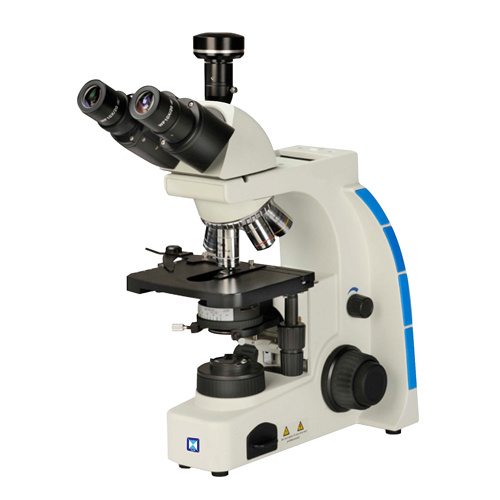

Laboratory Instrument Upright Trinocular Metallurgical Microscope (LM-302)Microscope Usage
Upright Metallurgical Microscope LM-302 is used to observe and identify the structure of various metal and alloy, The optical metallurgical Microscope is widely used in institute, laboratory and school.
Microscope Features
1. Kohler illumination
2. Plan Achromatic objective lens
3. With Transmitted and reflected illumination
Standard delivery
Main unit: 1pcs
10x, 20x, 50x, 80x plan achromatic objective lens: 1pcs each
6V/20W Osram halogen bulb: 1pcs
Green, blue and yellow filter: 1pcs
Polarizer and analyzer: 1pcs
Anti-dust cover: 1pcs
Optional accessories
5x, 100x (oil) plan achromatic objective lens
0.5x, 1x C-mount camera adapter
5.0M pixel digital camera3.0M pixel digital camera10.0M pixel digital cameraCCD camera
Examine software
Contour illumination (Order no: LMC-302)Techinical data| Eyepiece | WF10X/20 |
| Objective lens | 10x, 20x, 50x, 80x |
| Mechanical movable stage | Size: 156mm*138mm
Travel: 76mm*54mm |
| Interpupillary distance | 52mm-75mm |
| Trinocular tube | Inclined 30º |
| Diopter adjustment | ± 5 diopter |
| Surface illumination | 12V/50W halogen bulb |
| Contour illumination (option) | 6V/20W halogen bulb |
| Power supply | 110V/220V |
| Prod Model: |
LM-302 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Eyepiece: |
Wf10X/20 |
| Plan Achromatic Objective: |
10X 20X 50X 80X |
| Nosepiece: |
Quntuple |
| Stage Size: |
156*138mm |
| Stage Travel: |
76*54mm |
| Interpupillary Distance: |
52-75mm |
| Trinocular Tube: |
Inclined 30 Degree |
| Reflected Illumination: |
12V/50W Halogen Bulb |
| Transmitted Illumination(Optional): |
6V/12W Halogen Bulb |
| Power Supply: |
110V/220V |
| Magnification: |
500-1000X |
| Type: |
Metallographic |
| Number Of Cylinder: |
≥Three |
| Mobility: |
Desktop |
| Shape: |
Triangular Prism |
| Principle: |
Optics |
