Laboratory Sand Pump with Good Quality High Efficiency
Product Specifications
| Prod Model: |
XBSL19(3/4) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ore: |
Gold, Copper, Silver, Tungsten |
| Type: |
Beneficiation Machinery |
| Mining Object: |
Metallic and Non-Metallic Ore Excavator |
Product Description

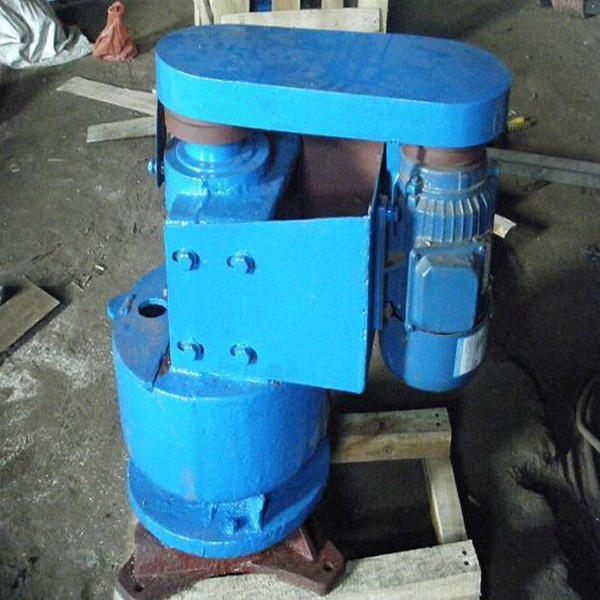

(1)XBSL Vertical Sand Pump is to convey mineral slurry and discharge tailings as well as transport medium for coal Washery and high temperature, easy- crystal slurry for aluminum plant and materials for cement factory. The product is made by the only manufacturer designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.
XBSL Vertical Sand Pump is operated by rolling bearings on the solid connecting impeller at the lower end of pump body, bearing choke and vertical shaft. The both ends of bearing choke are compressed by gland and rolling bearing and lube oil for bearing shall be sealed off without leakage. Electric motor and its support are installed in the pump to be operational by triangle belt driving impeller in pump room and to force out slurry using pressure of impeller. A centrifugal wheel is provided on the main shaft to prevent ore sand from being infiltrated into the bearings.
(2)Why choose our company?
1. We are a manufacturer (NOT Dealer)
All machinery from Jiangxi Yongsheng Ore Processing aremade by ourselves techinicians, not by transferred by trade company.
Commission: The lowest price with the best products, international quality, after-sales service can be assured.
2. We will do our best to satisfy every customer's needs
Producing high-quality and reliable machines is our first priority, because we know that our success depends entirely on the satisfaction of our customers. We never give-up quality to save cost.
3. Our Company with mineral processing laboratory, mineral optional free for customers to do test, and make the economic benefits of the preliminary risk assessment
Welcome to our factory! ! ! ! ! ! ! ! ! ! ! !
Add: Guzhang industrial park, Shicheng county, Ganzhou city, Jiangxi Province, China
Tel: 86-797-15779873837
Model |
Unit |
XBSL13 (1/2″) |
XBSL19
(3/4″) |
XBSL25
(1″) |
XBSL38
(3/2″) |
outlet Dia. |
mm |
Φ13 |
Φ19 |
Φ25 |
Φ38 |
|
Head |
m |
5 |
6 |
9 |
12 |
|
Flow rate |
L/min |
20_30 |
55 |
110 |
250 |
Feed density |
% |
30 |
30 |
30 |
30 |
|
Power |
kw |
0.75 |
1.1 |
1.5 |
3 |
|
Voltage |
v |
380 |
380 |
380 |
380 |
Overall dimensions |
mm |
486×280
×465 |
420×351
×553 |
682×500
×648 |
690×485
×685 |
|
Weight |
kg |
65 |
110 |
157 |
200 |
ShiCheng YongSheng ore processing mineral Equipment Manufacturing Co., Ltd. is an import-export trade Company Specialized in the production, sale, installation of mineral equipment, environmental protection equipment and other ore grinding Equipment. Our company has been approved for registration by relevant departments, and can provide users with project design, process design and uniform and non-uniform design services. Our machines are widely used to separate iron, copper, gold, silver, lead, molybdenum, tungsten, manganese and other rare and precious metals. Our products are now widely used in metallurgical, mining, chemical, construction, coal processing, refractory and research fields
We are the manufacturer. Our main product include shaking tables, jiggers, spiral chutes, flotation machines, spiral classifiers, ball mills, mixing tanks, feeding machines, vibrating screens, crushers, sand pumps, magnetic separators, hydraulic graders, hydraulic cyclones, sand machines, laboratory sand pumps, laboratory shakers, laboratory spiral chutes, laboratory flotation machines, laboratory ball mills, laboratory crushers, laboratory magnetic separators, laboratory mixing barrels, grinding machines and so on
Our company reputation insist "Customer is first"we can make product according to customers' requirement. Our goal is to provide customers with one-stop service in the field of mining, including the minerals in the mineral analysis, mineral processing test, engineering design, equipment production, equipment installation, equipment debugging and of technical training etc integrated services, through the provision of our perfect services to solve all customer's problem from his investment to his return.
