Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
ISO |
| Method Type: |
Automatic |
| Type: |
Electrostatic Spraying Equipment |
Product Description

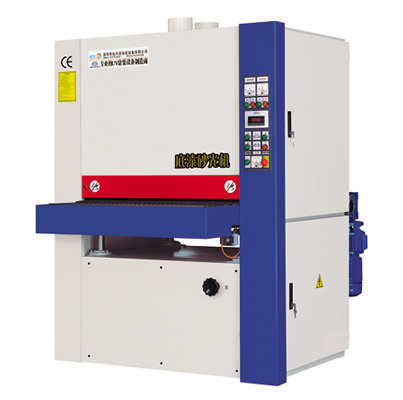

1. The machine is specially designed for lacquer grinding after coating,
Which is suitable for all kinds of flat products, especially for wood panel. After sanding the painting surface is smoother.
2. The body of machine is made of steel plate which have scissor\break and welding.
3. The machine is adopted soft bottom sanding wheel which can grind the rough coating surface and reduce the panel pressure at the same time.
4. The abrasive belt\conveying and polishing are controlled by independent
Inverter will coordinate better and suitable for many products.
5. The S pattern for up and down is adopted by four-post mechanism may not jolt and have small error.
6. For tiny displacement to turn the hand wheel.
7. Controlling pressure: If the pressure is insufficient, the equipment will not work.
8. Equipped malfunction light to ensure appear urgent situation, you can timely dispose it.
9. A special device for dusting let the effect of dusting better.
|
Model |
JXR-R-P600 |
JXR-R-P1000 |
JXR-R-P1300 |
|
Working Width(mm) |
30~600 |
30~1000 |
30~1300 |
|
Working Thickness(mm) |
2.5~100 |
2.5~100 |
2.5~100 |
|
Feeding Speed(m/min) |
6~38 |
6~38 |
6~38 |
|
Belt Size(mm) |
Φ 650*1700d |
Φ 1020*1700 |
Φ 1320*2200 |
|
Sanding Roll Size(mm) |
Φ 190 |
Φ 190 |
Φ 240 |
|
Polishing Roll Size(mm) |
Φ 190 |
Φ 190 |
Φ 190 |
|
Work voltage(mpa) |
> =0.55 |
> =0.55 |
> =0.55 |
|
Wind Velocity(m/s) |
25~30 |
25~30 |
25~30 |
|
Convey Power(kw) |
1.5 |
1.5 |
1.5 |
|
Polishing Power(kw) |
4 |
7.5 |
7.5 |
|
Belt Power(kw) |
5.5 |
7.5 |
11 |
|
Total Power(kw) |
11 |
13 |
18.5 |
|
Machine Size(mm) |
1300*1000*2000 |
1900*1600*2100 |
2700*2100*2000 |
|
Machine Weight(kg) |
1600 |
2200 |
3500 |
Shenzhen Jixingyuan Coating Equipment Company of limited ability is engaged in professional all kinds of production line such as coating equipment on surface\UV solidfication equipment\roll coating\curtain coating and spray coating with production\sell\service as a whole modern corporation.
In the practical experience for many years, the company is already has a large number of senior technicist and professional technical knowledge to ensure high quality. At the same time, our company is cooperated with many domestic painting manufacture. Not only does specialized produce equipment, but we also can provide professional scheme of production flow. To max reduce defective index, production cost and rise production efficiency. In order to survice a larger number of Client., the Company has set up Fujian Bbranch Office\East China Branch Office\Beijing Branch Office and Shandong with Hebei office which is provided best and quickest survice for client. Based on practical production situation, we design a full set of suitable plan for production. We exert all company' strength and seek truth from facts_Jjixingyuan will unceasingly exploit and innovate and struggle to be a world first class coating company.
