Xi'an Meilian Electrical Insulation Co., Ltd. >> Laminated Insulation Sheet 380

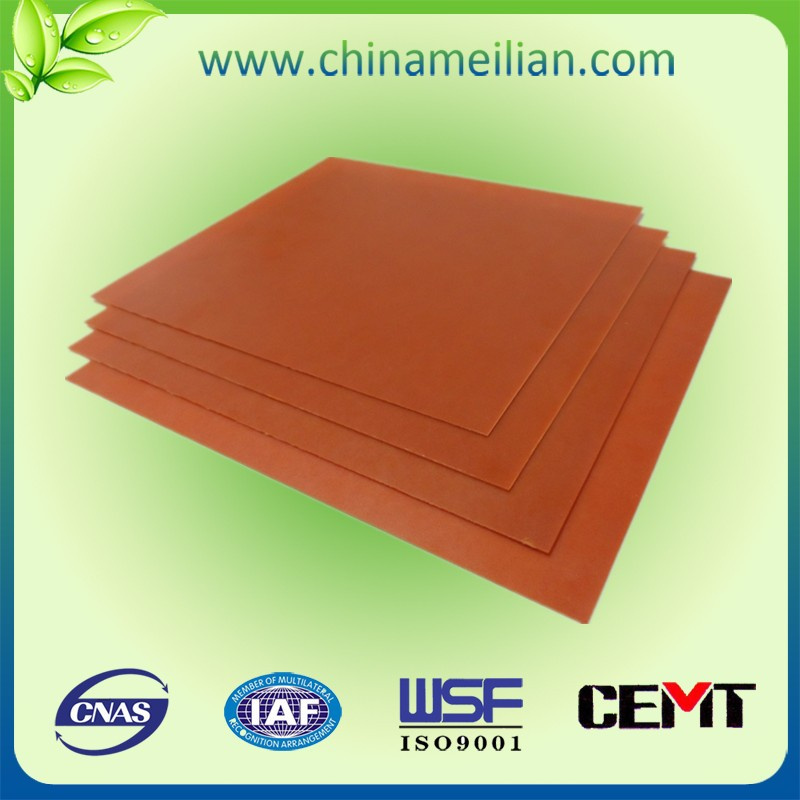

Laminated Insulation Sheet 380

Name: Laminated Insulation Sheet 380
Brand: China-Manufacturer-Directory.com
SKU: 743403455
Availability: InStock
Rating: 4.9 (23 reviews)

Supplier:	Xi'an Meilian Electrical Insulation Co., Ltd.
Price:	US $ 8-10kg
Min Order:	1kg
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	MJ-380
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Density:	More Than 1.7g/cm3
Size:	480X980mm
Delivery:	7-10 Working Days
Appliction:	for Motor & Generator
Samples:	Free Samples Are Welcome
Formation Methods:	High Temperature and High Pressure
Tensile Strength:	More Than120 MPa
Customizable:	Yes
MOQ:	1 Piece
Application:	Generator
Type:	Insulation Sheet
Chemistry:	Hybrid Insulation
Material:	Resin
Thermal Rating:	E 120
Maximum Voltage:	>100KV
Brand:	Mj

Product Description

Feature:
Excellent mechanical property
Heat resistance property
Excelletn magnetic permeability
Energy-saving & Environmental protection

Application:
Motor and generator groove strip/slot wedge
Reduce the motor loss, temperature rising, noise and etc
Improve the motor efficiency
Ideal energy-saving products

Basic information
Product name	Phenolic Resin-Boned Cotton Fabric Laminated
Brand	MJ-380
Material	Cotton facbric cloth and phenolic resin
Grade	Grade E
Feature
Gooddielectricalandmechanicalproperty Good heat resistance High mechanical strength
Application
Temperature classification is E. Higher radial tensile and mechanical strength, and low water absorption. Used as holding machine for angual contact ball bearing and material with mechanical wear-resistance.
Technical Performance
Density	≥ 1.25 g/cm3
Compression strength (parallel to the axial wall layer)	≥ 118 Mpa
Flexural stress	≥ 137 Mpa
Tensile strength (perpendicular to the wall layer) radial	≥ 69 Mpa
The heat resistance of 130 ± 2 in transformer oil	≥ 4 H
The thermal stability of 105 ± 2	≥ 24 H
Water absorption sample thickness (mm)	1.5-3 ≤ 2.0%
	3.1-4.5 ≤ 1.5%
	4.6-6.0 ≤ 1.3%
	6.1-9.0 ≤ 1.2%
	≥ 9.0 ≤ 1.0%
Storage period	6 Month(Below 5°C)

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.

We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.

We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".

The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
