Product Specifications
| Prod Model: |
PU03-TDEB-E3/E3 1001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Light Source: |
High Intensity IR Min. 100, 000 Hours |
| Fork Width: |
3mm |
| Min. Gap/Label Size: |
2mm |
| Response Time: |
<40us |
| Switching Frequency: |
12.5kHz |
| Control: |
Teach-in Key |
| Digital Output: |
PNP/NPN 100mA |
| Supply Voltage: |
10-30VDC |
| Housing: |
Plastic |
| Connection: |
M8 Connector |
| Type: |
Color Sensor |
Product Description
W e l c o m e t o V I s I t L a n b a o! ! !

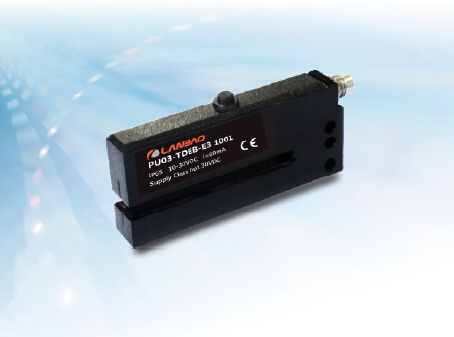

Lanbao Color mark sensor , Lable sensor——PU03-TDEB-E3/E3 1001
Feature
------------------------------------------------------------------------ The PU03 sensor combines small spot size and fast response to achieve high-speed label detection.
PU03 is capable of detecting a wide variety of adhesive labels on various backings.
The Teach key provides Standard Teach-in, Thin Teach-in and Custom Teach-in.
Custom Teach-in provides a separate measurement on the gap and on the label to allow for optimal detection of difficult labels.
------------------------------------------------------------------------
1. Operating for 17 years in Sensor market. Lanbao offers customers high quality and reliable products with most up-to-date technology and top design.
2.2014, Lanbao are awarded the honor by goven: "National key environmental protection practical technology and demonstration projects".
3. Lanbao took part in all kinds of exhibitions all over the world.
For example: 11/2014, China International Industry Fair.
11/2014, SPS/ IPC/ DRIVES Electric Automation.
Lanbao are known by customers and users.
4. Lanbao provides customers conventional products.
Besides the current products, we also can supply made to measure products to your sample.
5. All of Lanbao sensors through the CE certification.
6. Our products are extremely popular in China, overseas markets and all over the world!
7. Last but not least, all the products reach standard concerning product quality and environmental protection.
Note:
------------------------------------------------------------------------
Customize for cable length, housing material and shape.
Any query, just feel free to let us know.
|
Specification |
|
Model |
PU03-TDEB-E3/E3 1001 |
|
Light sourse |
High intensity IR min. 100,000 hours |
|
Fork width |
3mm |
|
Min. Gap/label size |
2mm |
|
Response time |
<40uS |
|
Switching frequency |
12.5kHz |
|
Control |
Teach-in key |
|
Light on/dark on control |
By connections |
|
Digital output |
PNP, NPN, 100mA |
|
Detect indicator |
Green LED |
|
2-press teach indicator |
Yellow LED |
|
Key lock indicator |
Red LED |
|
Fault indicator |
Flashing red/green |
|
Programming indicator |
Yellow/green LED |
|
Data retention |
EEPROM non-volatile memory |
|
Dimension |
1.5"(38mm) x 3.2"(80mm) x 0.5"(12mm) |
|
Weight |
0.21 lbs. (95g) |
|
Supply voltage |
10-30VDC |
|
Operating current |
40mA,(not including output) |
|
Short circuit protection |
Discrete output |
|
Overload/ reverse polarity protection |
Yes |
|
Operating temperature |
-20ºC^55ºC |
|
Storage temperature |
-20ºC^70ºC |
|

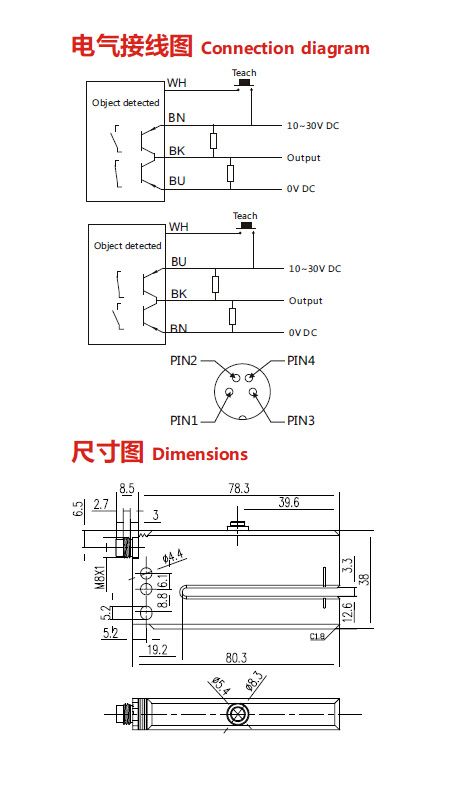

Connection |
M8 connector, 4pins |
|
Housing |
Plastic |
|
Protection degree |
IP65 |
|

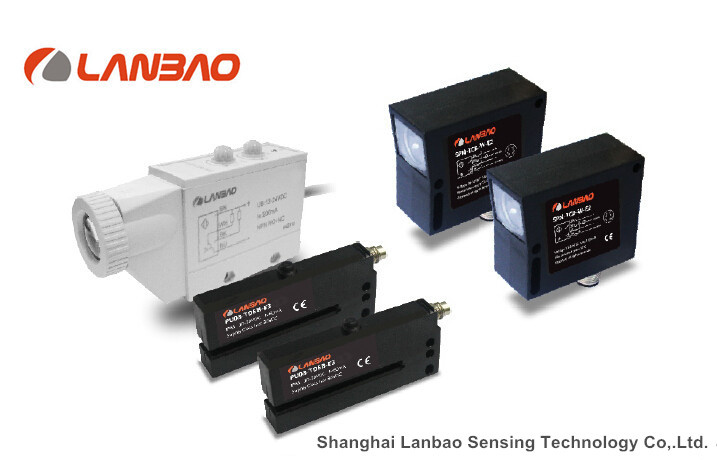

Shanghai Lanbao Sensing Technology Co., Ltd. |
Shanghai lanbao sensor technology Corporation was founded in 1998, the company is located in Shanghai lanbao Science Park, the park covers an area of 33, 000 square feet and employs more than 360 people, is a leading supplier of industrial automation, measuring and control sensors, instrument Industry Association of China, Shanghai high-tech enterprise.
Lanbao sensor technology limited liability company main business for industrial measurement and control sensor research and development, production, sale and application, to provide standardized and customized industrial measurement and control sensors and industrial measurement and control system. Series of products have passed CCC certification, CE certification, UL certification and the certification of quality management system certification, and has implemented the EU RoHS environmental directives, including inductive sensors, photoelectric sensors, capacitive sensors with ceramic thick film pressure sensors, more than more than 30 series, more than 3, 000 kinds of specifications. The technical performance of the industry-leading position, which products reach the international advanced level. Lanbao relies on its own technological advantages for the customer of industry control system meets the requirements.
Lanbao always adhere to the advanced technology, flexible system configuration, stability, safety and energy saving operation, hassle free professional services in a timely manner, to create ideal value for investment in the industry.
