Product Specifications
| Prod Model: |
CPEM-XMHAN-E5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Optical Output: |
2.2mm PMMA Fiber Optic |
| Fiber Optic Cable Length: |
2m |
| Receiver Spectral Response: |
350-1000nm |
| Response Time: |
<150um |
| Switching Frequency: |
6kHz |
| Dimension(Mm): |
51*61*25 |
| Weight: |
95g |
| Supply Voltage: |
10-24VDC |
| Operating Current: |
60mA |
| Housing Material: |
Metal Alloy |
| Type: |
Light Measuring Sensor |
Product Description
Welcome to Visit Lanbao! ! !

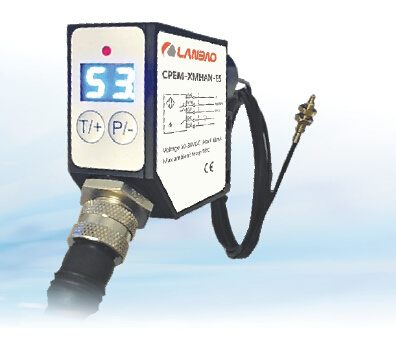

Lanbao Light Measuring Sensor ———— CPEM-XMHAN-E5
Feature
------------------------------------------------------------------------
High sensitivity and high resolution
Fast response
Display range 00-99
Adjustable gain
Analog output
PNP/NPN discrete output
Remote lock
Replaceable fiber optic assembly
Accessories
------------------------------------------------------------------------
Fiber optic cable, 2m
Mounting Bracket
Equipped with cable
Fiber optic bracket
Product application
------------------------------------------------------------------------
Automated testing processes
Verify light source on/off
Monitor brightness of light sources
Use filters for color applications
Advantage of Lanbao:
------------------------------------------------------------------------
1. Operating for 17 years in Sensor market. Lanbao offers customers high quality and reliable products with most up-to-date technology and top design.
2.2014, Lanbao are awarded the honor by goven: "National key environmental protection practical technology and demonstration projects".
3. Lanbao took part in all kinds of exhibitions all over the world.
For example: 11/2014, China International Industry Fair.
11/2014, SPS/ IPC/ DRIVES Electric Automation.
Lanbao are known by customers and users.
4. Lanbao provides customers conventional products.
Besides the current products, we also can supply made to measure products to your sample.
5. All of Lanbao sensors through the CE certification.
6. Our products are extremely popular in China, overseas markets and all over the world!
7. Last but not least, all the products reach standard concerning product quality and environmental protection.
Note:
------------------------------------------------------------------------
Customize for cable length, housing material and shape.
Any query, just feel free to let us know.
|
Specification |
|
|
Model |
CPEM-XMHAN-E5 |
|
Normal operating mode |
Displays relative light source intensity |
|
User sensitivity adjustment |
|
Calibration |
Set detection level |
|
Threshold |
Set undetect level 1-9 steps below threshold |
|
Hysteresis level |
Set normally open or normally closed |
|
Discrete output |
Set minimum output period 10-90mS |
|
Output pulse stretch |
Lock/unlock pushbutton controls |
|
Teach mode |
Auto-set detection threshold |
|
|
|
Optical input |
2.2mm PMMA fiber optic |
|
Fiber optic cable length |
2m |
|
Receiver Spectral Response |
350-1000nm |
|
Response time |
<150us |
|
Switching Frequency |
6kHz |
|
Relative intensity display range |
00-99 |
|
Sensitivity |
Adjustable |
|
Signal level |
7 segment digits * 2 |
|
Detection threshold |
7 segment digits * 2 |
|
Digital Output |
Auto-detect PNP/ NPN |
|
Output Function |
NO/NC selectable |
|
Analog Output |
0-5V |
|
Power indicator |
Green LED |
|
Detect indicator |
Red LED |
|
Programming indicator |
Yellow LED |
|
Dimensions (mm) |
51*61*25 |
|
Weight |
95g |
|
Supply Voltage |
10-24VDC |
|
Operating Current |
60mA |
|
Circuit protection |
Reverse polarity, short-circuit protection, overload protection |
|
Operating temperature |
-20~55ºC |
|
Storage temperature |
-20~70ºC |
|
Housing material |
Metal alloy |
|
Protection degree |
IP67 |
|
Certification |
CE |
|
