Product Specifications
| Prod Model: |
TAIRONG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CE: |
ISO9001 |
| Certification: |
GMP |
| Automation: |
Automatic |
| Product Type: |
PE Pipe |
| Computerized: |
Computerized |
Product Description

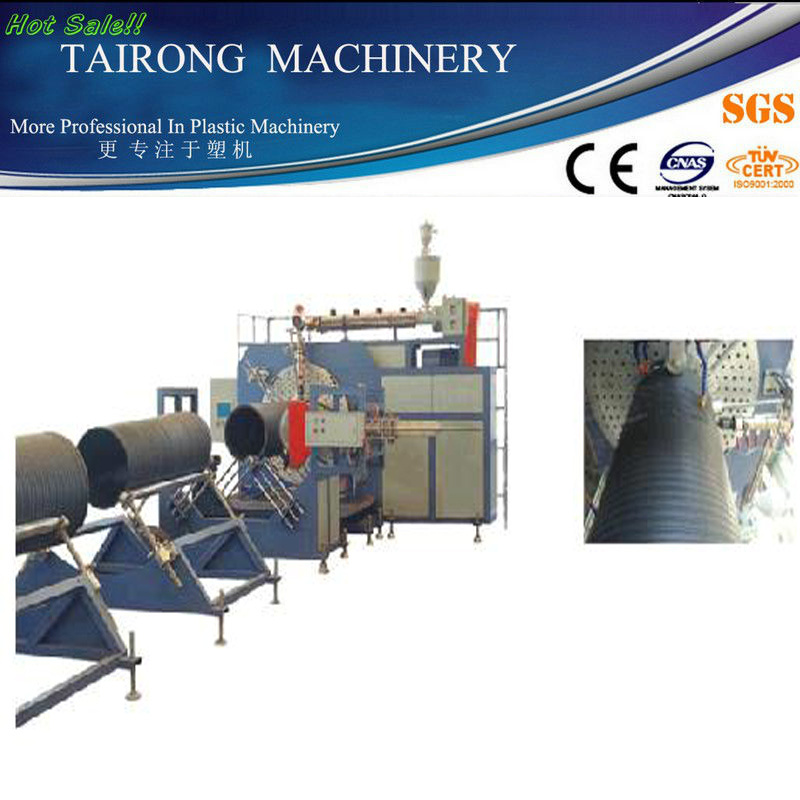

Large Caliber Hollow Wall Twine Pipe Production/Extrusion Line
APPLICATION & FEATURES:
We succeed in researching the large caliber hollow wall twine pipes production lines on the foundation of abundantly absorbing and digesting European technology. And acquire many items of national patents. The pipes we produced base on high density polythene(PE) as main material. The rectangle pipes are extruded by the first extruder and then enter into the twine form machine, at the same time, the second extruder spray the rubber strips and then squeeze to reunite it, it's outside wall is neat and smooth. Specification is Φ 400-Φ 1500mm. According to different usage term, the hardness degree of ring is divided into four grades and the Max can reach 16KN/m2. It is suitable for the sour alkali liquid below 10%. This kind of pipes have many extremely excellent characteristics, such as, corrosion resistant light, easy to fix, long life time(50years), etc, it can substitute the pipes made of high energy construction material(cement, cast iron, porcelain and ceramics, etc) It is widely used for sewer in superhighway, municipal, flats, athetic field, square, mine agricltrue, and bridges etc.
Project
|
SJ65
|
SJ90
|
Screws Diameter(mm)
|
Φ 65/Φ 45
|
Φ 90/Φ 65
|
Screw L/D Ratio
|
30: 1
|
30: 1
|
Screw speed(r/min)
|
120
|
120
|
Main motor power(Kw)
|
45
|
132
|
Heating power(Kw)
|
22
|
40
|
Max. Output(kg/h)
|
150
|
350 |
Zhangjiagang Tairong Machinery Co., Ltd. is located in the economically developed Yangtze River Delta, east to Shanghai, south to Suzhou and west to Nanjing. The geographic location is extremely advantageous.
TAIRONG integrates the research, development, production, and trade of plastic machinery. Our company has a strong technical team and a perfect after-sales service system. We have won customers' consistent high praise.
Our main products are no-dust cutting machines, PPR, PERT, PEX-B pipe high-speed extrusion production lines, gas pipe extrusion lines, fiberglass composite enhanced PP-R pipe production lines, PEX-A cross-linked pipe production lines, single/double screw extruders, washing line, granulating production lines and dryers, feeding machines, crushers, water chillers and other types of plastic auxiliary equipment.
TAIRONG Machinery has strong technical strength, excellent processing equipment, and leading R & D capability. Our company has always insisted on the business purposes of "prestige first, customer first, full service". We have provided clients with better quality, complete service and technical support.
