Product Specifications
| Prod Model: |
SK |
| Markets: |
Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Material: |
Q235B Carbon Steel Plate or as Client Requirement |
| Installation: |
Supplier Dispatch Engineer |
| Voltage: |
380 V Others |
| Power(W): |
5.5-110 Kw |
| Dimension(L*W*H): |
Different Model Different |
| Weight: |
6- 300 Ton |
| Certification: |
CE, ISO9001:2000 |
| Warranty: |
Two Years |
| Application: |
Construction, Metallurgical, Mining Industry etc |
| Drying Temperature: |
200-1000 Degree |
| Structure: |
Rotary Type Drier |
| Operational Method: |
Continuous |
| Operation Pressure: |
Atmospheric Dryer |
| Movement Way: |
Fixed |
| Heating Mode: |
Hot Air |
Product Description

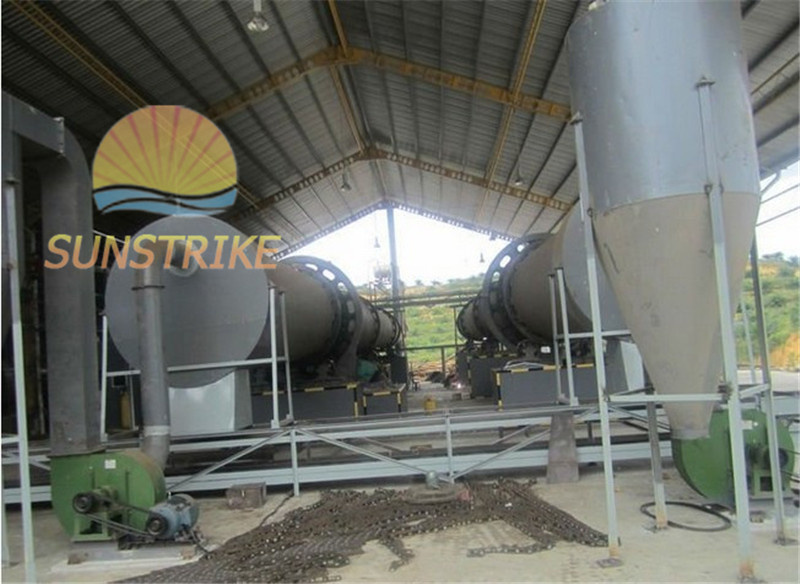

Large Capacity coal slime dryerr with Good Drying Effect
Introduction of coal slime dryer :
coal slime is a kind of lowest degree coalification coal mining.
Due to the coal slime is rich in volatile components,So it is easy not to burn and
have smoke. coal slime as fuel for power plants, also can used for chemical raw
materials, catalyst carriers, adsorbents, sewage purification and recovery of metal.
In view of the coal slime contains more impurities, coal slime and other coal
resources mined to go through the washing, elect more high quality coal residue
in the washing process, because of the high moisture difficult to burn and
inconvenient to use,in the past year coal slime as a waste of resources.
In order to reduce the waste of resources, our company professional design
the new type coal slime dryer to drying coal slime, coal moisture evaporation be used to reduce waste. coal slime after drying that can produce briquettes for cooking and heating, it can also be used as a source of activated carbon for water treatment, recovery of gold and extraction of iodine.
The coal slime dryer system equipment:
The coal slime dryer system mainly consists of burning furnace,feed conveyor, dryer machine, output conveyor, dust catacher,electrical cabinet and others.
The description of coal slime dryer :
coal slime dryer mainly consists of Dryer cylinder ,raw materials feeding plate
(feed head), rolling ring,roller, motor,speed reducer, driving and supporting device, etc.
coal slime dryer technology features:
Our company research and development of energy-saving drum drying technology and equipment is coal slime drying new technology:
1.control the best temperature of the material put into the dryer, and the material output temperature.
2.This coal slime dryer use specially designed lifting plate,this lifting plate is different to common dryer lifting plate.
3.Determine the evaporation intensity of coal slime dryer can be control.
4.Volatile loss control coal slime drying process
5.To control feed size of coal slime drying effect
6.Control the degree of fragmentation in the coal slime drying process
7.Research coal slime drying damp characteristics
8.Ensure the security of the drying process, as well as the safety of workers
9.Study emissions harmful content in the exhaust gas, reduce air pollution
Technology data of caol slime dryer:
Model | Length
(m) | speed
(r/min) | Drying temperature
(°c) | Capacity
(t/h) | Motor
(kw) | Weight
(ton) |
| Φ0.8x8 | 8 | 3-6 | ≥800 | 0.6-0.8 | 3 | 3.5 |
| Φ1.0x10 | 10 | 3-6 | ≥800 | 1-1.5 | 4 | 7 |
| Φ1.0x12 | 12 | 3-6 | ≥800 | 1.5-1.8 | 4 | 8 |
| Φ1.2x12 | 12 | 3-6 | ≥800 | 2-3 | 11 | 15 |
| Φ1.5x15 | 15 | 3-6 | ≥800 | 3-3.5 | 15 | 20 |
| Φ1.8x15 | 15 | 3-6 | ≥800 | 4.5-5.0 | 18,5 | 28 |
| Φ2.0x18 | 18 | 3-6 | ≥800 | 6-6.5 | 18.5 | 42 |
| Φ2.0x20 | 20 | 3-6 | ≥800 | 6.5-6.8 | 18.5 | 50 |
| Φ2.2x20 | 20 | 3-6 | ≥800 | 6.5-7.0 | 22 | 56 |
| Φ2.4x20 | 20 | 3-6 | ≥800 | 7.5-8 | 30 | 60 |
Henan Sunstrike Machinery&Equipment Co., Ltd is a professional manufacture of E-waste treatment equipment and mining equipment. Our main products include waste PCB recycling machine, aluminum plastic board recycling machine and coal&mineral powder briquette machine, wood pellet machine, biomass briquette machine, wood chipper, sawdust dryer etc, which is a joint-stock enterprise integrated R&D, manufacture and marketing. The company is located in Mazhai Machinery Industrial Park. Equipped with modern mechanical processing equipment and advanced three-dimensional design& simulation test system. A team of 26 R&D engineers make sure of our most up-to-date technology and innovation, the R&D cost shares up to 10% of our net profit each year. After nearly 10 years of growth, we are now among the top leaders in this field and own two production bases in zhengzhou city, which has the biggest mining equipment manufacturing base in China.
We are one of a few enterprises in this field who had passed the CE certification and ISO9001: 2008 international quality management system certification. Moreover, we own independent import&export right of PRC. Strict quality control procedure ensures our product quality, the production capacity ensures our on time delivery, so far, we have our customers from 106 countries and our products are well sold in domestic and abroad markets with deeply trusted by customers.
With the strong technical force, highly cooperative team, exquisite fabrication technology and perfect after-sales service system to provide customers with timely and thoughtful service. We believe that the satisfaction of customers is our drive of progress. "Win together with customer" is the true principle we should persist forever. We sincerely hope that we can create brilliant future together.
