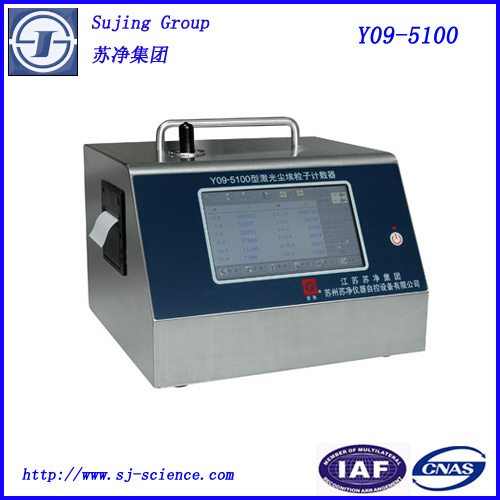

Large Flow Laser Particle Counter 100L Y09-5100
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
y09-5100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
The model Y09-5100 is used to detect the particles in the clean room. The instrument uses the laser diode as the light source. With LCD touch screen display, it can measure six different size channels simultaneously. The built-in printer can print count results. Software creates data files for viewing or export to EXCEL sheet to computer. The instrument is widely used in the fields of micro-electronics, precision machinery, optics, pharmacy and sanitation, biology, food and beverage, aerospace and so on.
|
Outside Dim |
288*240*290(Wide*High*Deep) |
|
|
Display |
LCD |
|
|
Weight |
6.5 Kg |
|
|
Max.Consumption |
80W |
|
|
Power Source |
DC16.8V (Built-in Lithium Battery) |
|
|
Size Channels |
0.5\1\3\5\10\25μm |
|
|
Calculation |
95%UCL calculation,showing particle concentration |
|
|
Flow Rate |
100L/min Imported Pump |
|
|
Sample Time |
0~999999s(Selectable) |
|
|
Zero Count |
≤10min |
|
|
Location Labels |
0~9999 |
|
|
Printer |
Built-in Thermal Printer |
|
|
Alarm |
Class |
|
|
Data Storage |
20000 samples/300 samples of UCL(With PC Software) |
|
|
Data Output |
USBPort |
|
|
Light Source |
Laser Diode(30000 hours mean time between failures) |
|
|
Maximum Particle Concentration |
35000 particles/L |
|
|
Operating Time |
5 hours |
|
|
Environmental |
Temperature:10~35 degree, Humidity:20%~75%RH, Atmosphere Pressure:86~106Kpa |
|
|
|
Suzhou Sujing Automation Equipment corporation is one of the enterprises which are largest in scale and highest in market share in particle measurement field in China, with the complete integration of scientific research, development and production.
Suzhou Sujing Automation Equipment corporation is one of the Branches of Jiangsu Sujing Group Co., Ltd. Sujing Group is a new & high technology enterprise and one of 520 nation key enterprises, in which Jiangsu Research Center and Post-doctoral workstation are set, with ripe scientific research, development, production, marketing&management system. The Mission of Sujing Instrument is to provide products and services associated with particle measurent and monitoring that are application driven. Products are available in the form of standard models, special design, and complete systems. Services are available in the form of calibration, special engineering, and application assistance. Sujing Instrument is committed to continually enhancing and expanding these products and services.
