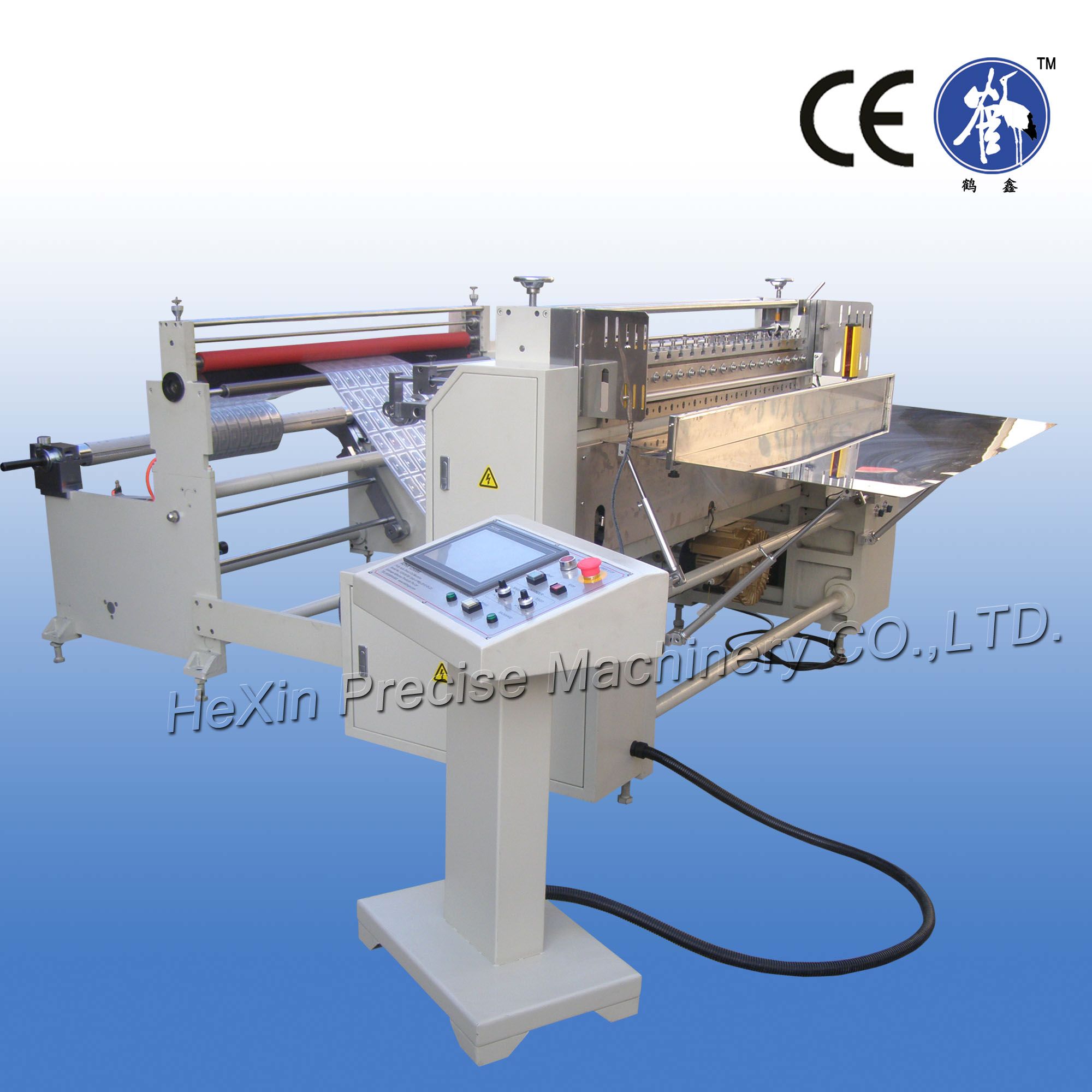

Vedio for this automatic industrial fabric cutting machine :
http://v.youku.com/v_show/id_XNDMwMDg5ODgw.html
Technical Parameters
Model |
HX-1250B |
Voltage |
380V |
Power |
4.5KW |
N.W. |
2200KG |
Cutting Length |
0.1-9999.9mm |
Cutting width |
1-1250mm |
Cutting precision |
±0.05mm |
Cutting speed |
75(cut/min) |
Machine size |
3200x1250x1250mm |
Machine Features
1. Max material width: 1250mm;
2. Cutting Tolerence: 0.05mm, Cutting Precision: 0.1mm;
3. Material thickness range: 0.5mm-15mm;
4. This cutting machine has a high configuration with imported PLC touch screen, unwinding system, and servo motor.
5. It can preset cutting length, speed, and quantity, and it will memorize them when it runs next time;
6. An Air shaft for loading material, automatically lifting, loading and unloading material;
7. Holding CE and ISO certifications;
8. Operation is convenient and easy with a touch screen;
9. Waste rate is low;
10. Fast and accurate;
11.Optional accessories: 1. Static eliminator 2.Conveyor belt 3. Photoelectric tracing device
Application
This cutting machine is applied in sheeting for felt aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, fibre, metal foil and all kinds of material in roll.
Our Services
1. Warranty period is 12 months;
2. A prompt reply within 24 hours;
3. Free operation training before delivering.
Kunshan Hexin precise machinery co. Ltd is located in Kunshan city, Jiangsu province, it's only 40 minutes' away from Shanghai Hongqiao airport by car, and 18 minutes' away from Shanghai railway station by high-speed rail. The traffic is very convenient.
We are specialized in developing, manufacturing, marketing and exporting microcomputer belt cutting machines, slitting machines, laminating machines, high precision die cutting machines. With strong technology, international quality control system and perfect after sale service, our products enjoy a good reputation both at home and aboard market.
With Japanese advanced design drawing and manufacturing technology, our machines have come up to the leading levels after continuous improvement for many years, especially in mechanical and electrical, gas and liquid fields. We own professional technical staffs, engineers, sales and after-service employees who constitute a young and well-qualified team. Our belief is "people-oriented, technology-first, integrity-centered and brand idea" and we will provide all our customers with reliable products, perfect service in order to create a brilliant future together.
Our products are widely applied in laminating, slitting and die cutting for protective materials, sticky materials, insulating materials, conductive materials, electronic materials, printing materials and so on, and sizing cutting for strings, strips, sheets, ropes, lines, belts, rolls, plates, tubes, fibre, rubber, foam, Mylar, LCD, films, tapes, PET, PVC, PC, metal foils, etc. Our machines can process all kinds of sheet materials, roll materials and so on.
