Product Specifications
| Prod Model: |
LJ3204P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color & Page: |
Multi-Colour Printing Press |
| Printing Interface: |
USB2.0 |
| System Supported: |
Windowsxp64 |
| Structure: |
Flat-Bed Cylinder Press |
| Plate: |
Relief Printing |
| Printing Speed: |
6.7CPI |
Product Description

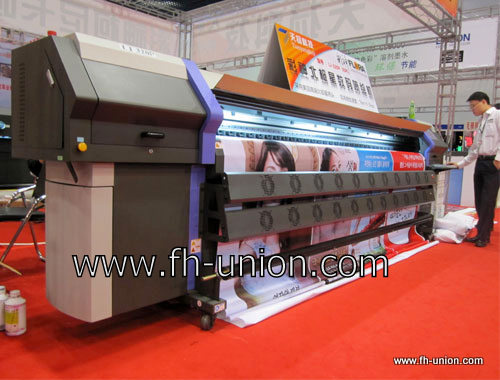

Flora Large format solvent printer LJ3204P
High speed / High Saturation
4 pieces of well known Spectra polaris 512 durable print heads
Deliver high saturation, high speed over 90m² /hr for outdoor billboard
Precise ink positioning improve printing effect
New innovation
CNC milled aluminum brick print head mounting base - Never distorted
Chamfered mounting base design avoid media search
User friendly print head physical position and angle adjusting
New CNC milled aluminum capping block seal print head tightly
Multifunction
The best new improved control boards to protect print heads
Front and MID. Heating system with PID temperature control unit
Taking up / Feeding system with patented pressure bar to maintain long feeding
New developed sub tank system to ensure good ink supply
Easy control
Aprint Rip User friendly control console software
USB high speed interface for large volume data transferring
Programmable build-in Vacuum cleaner to clean print head surface.
Best choice for fast printing speed solvent printer.
|
Spectra Polaris LJ320P Solvent Printer General Information |
|
Printing methods: |
Drop-on-demand piezo electric |
|
Ink reservoirs: |
Refillable on the fly while printing / 4000ml per color |
|
Ink characteristics: |
Solvent-based pigments |
|
Printhead controls: |
Print head temperature and voltage are software adjustable |
|
Media feeding system: |
Free spin / motor-driven lazy loop for optimal banner tension |
|
Media take-up system: |
Automatic motor-driven spool capacity |
|
Media handling options: |
Roll to roll |
|
Drying system: |
Digitally controlled heater and front-mounted fans |
|
RIP software: |
Photoprint 6.1 (Windows 2000, Windows Xp Pro Sp2) |
|
Color management: |
ICC based color, adjustment curves, density adjustment |
|
File formats: |
Bitmaps, TIFF , JPEG , Postscript 3 , EPS , PDF etc. |
|
Electrical requirements: |
50Hz/60Hz , 220V(± 10%)> 20A |
|
Environmental requirements: |
Ambient temperature : 20-30 oC , Relative humidity : 40-70% |
|
Warranty: |
1 year (please consult your local dealer for details) |
|
Technical Specification |
|
Model: |
LJ 320P |
|
Printing heads: |
Spectra Polaris printheads |
|
No. of Print heads: |
4/6/8 heads |
|
Color: |
4 colors (CMYK) or 6colors(CMYK, LC, LM) |
|
Resolution options: |
300x400, 300x600, 400x600, 600x600, 600x800, 800x1200 |
|
Printing Speed: Draft Quality: Standard Quality: High Quality: Ultra Quality: |
Up to 110sqm/hr Up to 75sqm/hr Up to 55sqm/hr Up to 35sqm/hr |
|
Maximum media width: |
330 cm |
|
Maximum printing width: |
320 cm |
|
Maximum roll dimensions: |
Φ 35 cm |
|
Media Types: |
Paper, advertising banner, PVC, mesh fabrics, adhesive vinyl etc. |
|
Outdoor durability: |
2 years |
|
Dimensions: |
4.76mL x 1.09mW x 1.40mH |
|
Weight(Net): |
700 kg |
