Product Specifications
| Prod Model: |
TC-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Dyeing and Finishing Machinery |
| Machine Function: |
Fabric Inspecting and Rolling |
| Machine Width: |
Customized |
| Color: |
Blue and Grey |
| Automatic Grade: |
Automatic |
| Certification: |
CE |
| Condition: |
New |
Product Description

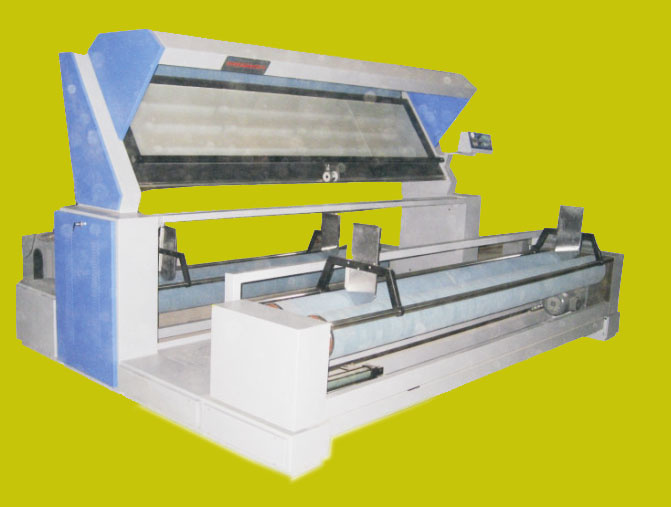

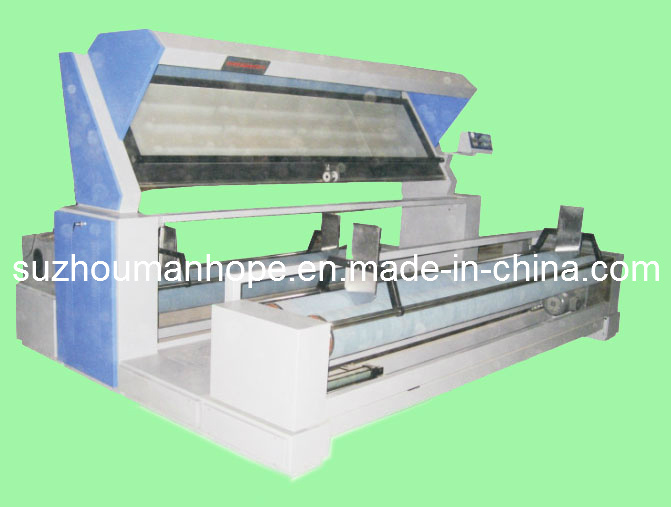

TC-B Large Package Cloth Inspecting/Winding Machine
Application:Used in garment factory, man-made fur mill, artifical leather factory. It's allows feed the fabrics in circular/roller or folded/plat form. This machine is especially good for inspecting and rolling the export fabrics.
Technical Features:1. Applies an operator platform making the inspecting table close to the eyesight in order to the facilitate the cloth amendment and the sorting of defective points
2. Photoelectronic device for automatic edge-alignment
3. Frequency transformer stepless adjustment for controlling the inspection and rolling speed
4. Amendable electronic length-measuring device can count fabrics in meter, yard and totalization length accurately
5. Automatic stop device when without cloth
6. The fabric-guide assembly is optional
7. The domestic cutter or import cutter is optional
8. The cutter also can be made manual or automatic
Technical Parameters:1. Max. Diameter 500mm~1500mm
2. Working speed 1800mm~3500mm
3. Rolling speed 0~60m/min
4. Edge-aligning accuracy ± 6mm
5. Max error for length counting 0.50%
6. Dimension 2500(L)*1505(W)*2130(H)mm
7. Weight 1400KG
Established in 2002, Suzhou Rehow Machinery Manufacturing Co., Ltd. is a Sino-HK joint venture which is specialized in the research and development of textile printing and dyeing machinery, integrating manufacture, sale and after-sales service as a whole.
Our company has been able to independently develop and manufacture products with various specifications, for example, sewing machines with automatic folio function, tension-free cloth inspecting machines, cloth winding machines, scutching machines, slitting machines and every kind of dyeing and finishing machine.
