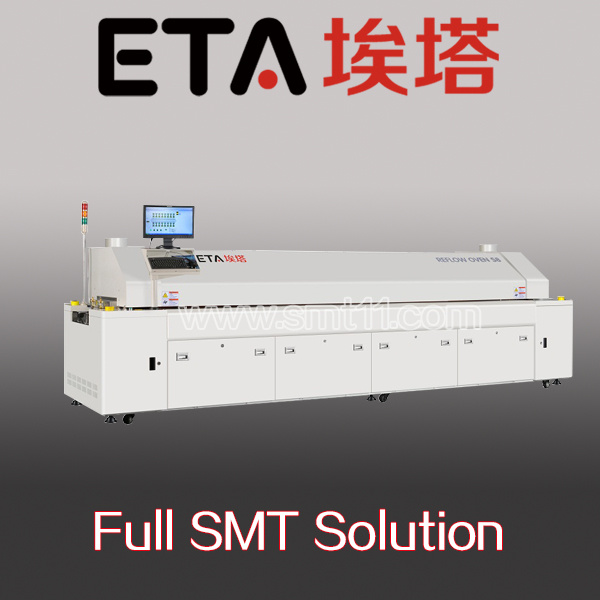

Large-Size Lead Free SMT N2 reflow oven Reflow Solder Machine S8-N
1, Windows XP O/S, so simply as Chinese and English interface onscreen alternative available.
2, The digital control system adopted with PLC +Modular circuit to stabilized and accurate of repetitive precision.
3, Intelligent diagnosis system (IDS) has the function of trouble remind, alarm, list-out, report saving.
4, Temperature and blower speed controlling adjustable independently, to meet the high-precision requirements.
5, To minimize the temperature difference of various volumes of components by newly chambers design, with enhance the reliability and protective of each solder joints.
6, Step forced cooling system to easily achieve the requirements of strict lead-free processes (cooling slope: ≥ 3degree/sec. )
7, Center support and dual rail is optional.
ETA - one of the well-known lead-free electronics equipment manufacturers in China, Founded in 2000, headquartered in Shenzhen, has Marketing center and technical support center in the countrywidely, a number of agency partners worldwidely and Has set up a product exhibition center in India and Brazil.
China Mainland, as the largest market worldwidely of the ETA, followed by India, Brazil, Europe, the Americas, at the same time, according to the findings of the U. S. Market research center, ETA is also one of largest number of lead-free equipment exporters. ETA has become one of the most active foreign trade company in the field.
| Model | S8-N |
| GENERAL |
| Outside dimension | 5310*1353*1490mm |
| Standard color | Computer grey |
| Weight | 2150kg |
| Number of heating zones | Up8/bottm8 |
| Lengthof heating zones | 3121mm |
| Number of cooling zones | 2(built-in) |
| Exhaust volume | 10M3/min*2 exhausts |
| Standard feature of control system |
| Electric supply required | 3phase, 380V 50/60Hz |
| Electric power required | 64KW |
| Power for warm up | 32KW |
| Power consumption | 10KW |
| Heating pattern | Up& Bottom Hot air |
| Warming time | Approx. 30minute |
| Temp. setting range | Room temp__300degree |
| Control system | PLC+ Computer |
| Temperature control method | PID close loop control +SSR driving |
| Temperature control precision | ± 1.0degree |
| Temperature deviation on PCB | ± 1.5degree |
| Data storage | Process data and status storage (80GB) |
| Abnormal alarm | Abnormal temperature(extra-high/extra-low temp) |
| Board dropped alarm | Tower light: yellow warming: Green-normal: Red-abnormal |
| Standard features of conveyor system |
| Max. width of PCB | Max: 450mm(Standard) |
| Rail Number | 1 Lane(standard) 2 Lane (option) |
| Components clearance | Top/bottom clearance of PCB is 25mm |
| Conveyor height | Light → right(option: R→ L) |
| PCB transmission agent | Air-reflow=chain +mesh (Standard) |
| Conveyor height | 900± 20mm |
| Conveyor speed range | 300~2000mm/min |
|
