Product Specifications
| Prod Model: |
ZK-1530 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Size: |
1500*3000*200mm |
| Working Precision: |
0.03mm |
| Working Speed: |
0-12000mm |
| Drive Mode: |
Step Motor(86byg-450A/B) |
| Spindle Power: |
3.2kw Water Cooled Motor |
| Spindle Speed: |
0-24000rpm |
| Guide Rail: |
Hiwin Linear Square Guide Rail |
| Transmission: |
Rack and Ball Screw |
| Control System: |
PCI Ncstudio |
| Support Software: |
Type3, Ucancam,Artcam, Mastercam, Autocad |
| Controlling Mode: |
CNC |
| Feed Mode: |
Manual |
| Spindle Number: |
Single-Spindle |
| Spindle Layout: |
Spindle Over |
| Certification: |
CE |
Product Description

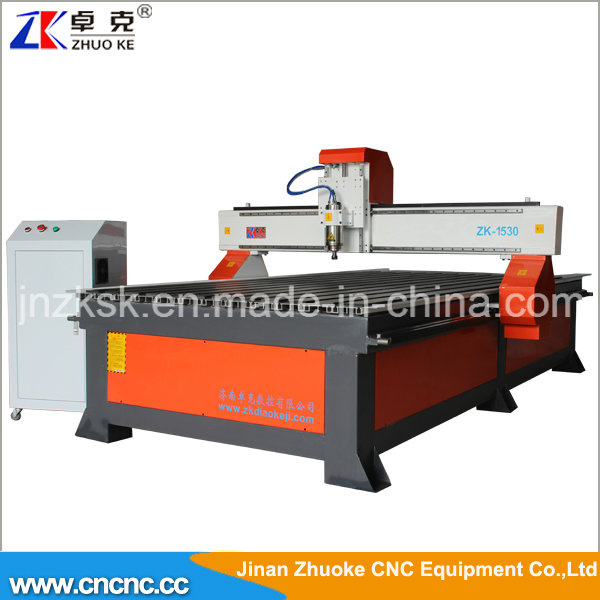

large size smart woodworking cnc router/cnc machinery for sale ZK-1530
DESCRIBTION
1. Square tube iron lathe bed, cast iron Longmen structure(Tshape). Aviation aluminum working mesa
(1.8mm)
2.3-axis(XYZ) use 4 pieces 86BYG -450A step motor(Jiangsu Changzhou) and MA860Hdrivers (leadshine).
3. X, Y, Z-axis use Hiwin linear guideway(diameter 20), X Y axis are rack transmit, Z-axis ball screw
(2510 or 1605).
4. Double exchange transformer AC(60v500w) power supply.
5. CHINA 3.2KW water-cooler brushless frequency-change spindle and 3.7 KW inverter.
6.3-axis motor line is CNC High soft lines(4*0.75), spindle line is shielding high soft line(3*1.5).
7. The processing precision is 0.03-0.05mm, diagonal error is 1mm
8. Design software is TYPE3, ARTCAM, MasterCAM, and the control system is NCstudio or DSP, Mach3.
9. Z-axis working height is 200mm.
APPLICATIONS
Furniture Industry: Wood doors, cabinets, tables, chairs
Advertising Industry: Signage, logo, badges, display board, meeting sign board, billboard
Artwork and Decoration Industry: Wood crafts, gift box, jewelry box
Electronic Industry: Circuit board, insulation material
Music Industry: Musical instrments, loudspeaker box
Soft Metal: Aluminum, brass Silver, gold
AFTER SALE SERVICE
1. One year warranty, main parts are free of charge when problems happened during the guarantee period.
2. Life time free maintenance service.
3. Free training course at our factory with professional engineers.
4. We provide the consumable parts at agent price when you need replacement.
5.24 hours online service each day, free technical support with different languages.
6. We provide door to door technical support, if necessary.
PACKING & SHIPPING
For our export machine we all choose hardness and thick playwood case to packing it, and before this packing we also use nice plastic to protect this whole machine
You can choose ocean and land transportation, for small model the air and express way is no problem, just tell me your nearest harbor or address, we can arrange delivery.
OTHER MODELS
ZK-3030 300*300*80mm ZK-4040 400*400*10mm ZK-6060 600*600*120mm
ZK-6090 600*900*120mm ZK-1015 1000*1500*150mm ZK-9015 900*1500*150mm
ZK-1212 1200*1200*150mm ZK-1215 1200*1500*150mm ZK-1218 1200*1800*150mm
ZK-1224 1200*2400*150mm ZK-1325 1300*2500*200mm ZK-1525 1500*2500*200mm
ZK-1530 1500*3000*200mm ZK-2030 2000*3000*200mm
FOR MORE DESTAILS OR DISCOUNT, PLEASE JUST SEND INQUIRY TO ME! ! ! !
| XY-axis working area | 1500*3000mm |
| Z-axis working area | 200mm |
| Worktable size (mm) | 1650*3150mm |
| Max. Feeding height | >150mm |
| Cut thickness of material | <40mm |
| Spindle power | 3.2KW water cooling spindle |
| Guide rail | Hiwin Linear square guide way |
| Transmission | Rack for XY axis ball screw for Z axis |
| Driving mode | Stepper motor |
| Processing accuracy | 0.05mm |
| Reposition accuracy | 0.05mm |
| Spindle speed | 0-24000rpm/min |
| Empty traveling speed | 0-10000mm/min |
| Engraving speed | 0-6000mm/min |
| Milling cutter | 3.175/4/6/8/10/12.7mm |
| Control system | NcStudio |
| Carving Instructions | G code *Uoo *mmg *plt HPGL |
| Software environment | Windows 2000 / XP/7 |
| Compatible software | Type 3, Artcut, Artcam |
| Power supply | AC220-380V/50-60HZ |
