Mitech Co., Ltd. >> Large Testing Range Multi-Function Ultrasonic Through Coating Thickness Gauge Mt190

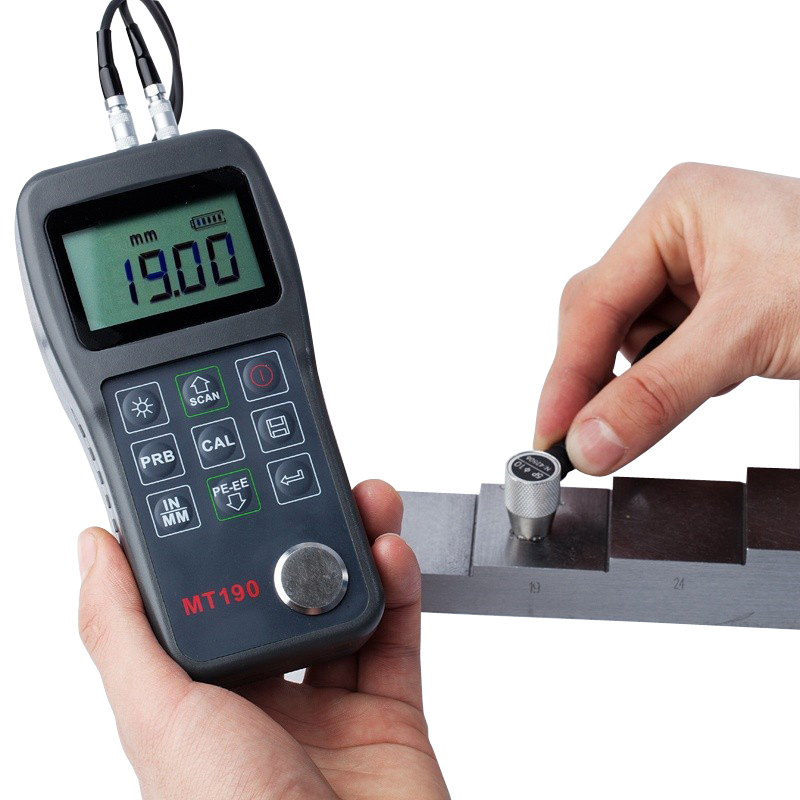

Large Testing Range Multi-Function Ultrasonic Through Coating Thickness Gauge Mt190

Name: Large Testing Range Multi-Function Ultrasonic Through Coating Thickness Gauge Mt190
Brand: china-manufacturer-directory.com
SKU: 720495925
Availability: InStock
Rating: 4.7 (110 reviews)

Supplier:	Mitech Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,DAP

Product Specifications

Prod Model:	MT190
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Test Methods:	Through Check Method

Product Description

Overview The？model？MT180/MT190？is？a？multi-mode？ultrasonic？thickness？gauge.？Based？on？the？same？operating？principles？as？SONAR,？the？instrument？is？capable？of？measuring？the？thickness？of？various？materials？with？accuracy？as？high？as？0.1/0.01？millimeters.？ The？multi-mode？feature？of？the？gauge？allows？the？user？to？toggle？between？pulse-echo？mode？(flaw？and？pit？detection),？and？echo-echo？mode(eliminate？paint？or？coating？thickness). ？ Product？Specifications 1)？Display:4.5？digits？LCD？with？EL？backlight. 2)？Range:Pulse-Echo？mode:？(0.65~600)mm？(in？Steel). Echo-Echo？mode:？(3~30)mm？for？MT180,？(3~60)mm？for？MT190. 3)？Sound？Velocity？Range:？(1000~9999)？m/s. 4)？Resolution:？0.1mm/0.01mm？？ 5)？Accuracy:？±(0.5%Thickness+0.01)mm,？depends？on？materials？and？conditions 6)？Memory？for？up？to？20？files？(up？to？99？values？for？each？file)？of？stored？values. 7)？Power？Source:Two？"AA"？size,？1.5？Volt？alkaline？batteries.？100？hours？typical？operating？time？(EL？backlight？off). 8)？Communication:USB1.1. 9)？Outline？dimensions:150mm×74mm×32？mm. 10)？Weight:245g Main？Functions 1)？Multi-mode:？Pulse-Echo？mode？and？Echo-Echo？mode. 2)？Capable？of？performing？measurements？on？a？wide？range？of？material,？including？metals,？plastic,？ceramics,？composites,？epoxies,？glass？and？other？ultrasonic？wave？well-conductive？materials. 3)？Transducer？models？are？available？for？special？application,？including？for？coarse？grain？material？and？high？temperature？applications. 4)？Probe-Zero？function,？Sound-Velocity-Calibration？function 5)？Two-Point？Calibration？function.？ 6)？Single？point？mode？and？Scan？mode.？Seven？measurements？readings？per？second？in？single？point？mode,？and？sixteen？per？second？in？Scan？Mode. 7)？Coupling？status？indicator？showing？the？coupling？status. 8)？Units:？Metric/Imperial？unit？selectable. 9)？Battery？information？indicates？the？rest？capacity？of？the？battery. 10)？Auto？sleep？and？auto？power？off？function？to？conserve？battery？life. 11)？Optional？software？to？process？the？memory？data？on？the？PC.

	No	Item	Qty.	Note
Standard Configuration	1	Main body	1
	2	Probe P5EE (5MHz)	1
	3	Couplant	1
	4	Instrument Case	1
	5	Operating Manual	1
	6	Alkaline battery	2	AA size
	7
	8
Optional Configuration	9	Probe N05/90 ° (5MHz)		See Table3-1
	10	Probe N07 (7MHz)
	11	Probe HT5(5MHz)
	12	DataPro Software	1
	13	Communication Cable	1

Model	Freq MH z	Diam mm	Measuring Range	Lower limit	Description
P5EE	5	12	Echo-Echo mode: (3~ 30)mm for MT180, (3 ~ 60)mm for MT190.	Φ 20mm × 3.0mm	Trough Coating Measurement
N05	5	1 0	1mm~ 60 0.0mm(In Steel)	Φ 20mm × 3.0mm	Normal Measurement
N05 /90 °	5	1 0	1mm~ 60 0.0mm(In Steel)	Φ 20mm × 3.0mm	Normal Measurement
N07	7	6	0. 65 mm~ 200 .0mm (In Steel)	Φ 15mm × 2.0mm	For thin pipe wall or small curvature pipe wall measurement
HT5	5	14	1~ 600 mm ( In Steel )	30 mm	For high temperature (lower than 3 00°C )

Mitech is a manufacturer specializes in Non-Destructive Testing (NDT) instruments. Located in Beijing, Mitech has a professional engineer team devoted in R&D and manufacturing advanced high technical instrument; Its main products are ultrasonic digital flaw detectors, portable metal hardness testers, handle ultrasonic thickness gauges, and coat thickness gauges etc.

Until now, Mitech has distributors dispersed in major cities of China and offers excellent after-sale service. Mitech's instruments are widely used in domestic generating industry, petroleum and chemical industry, pressure vessel manufacturing industry and so on, for providing quality control procedure; Customers are satisfied with the high-quality, good reliability and its prompt after-sale services.

Mitech's mission is to provide customers with the best products and services, make contributions to the development of our world, the company is active in communicating with our distributors and customers both present and potential, main conversions and exhibitions of non-destructive testing are good chances for people to know more about Mitech and its products. Mitech welcomes to join hands with more friends.
