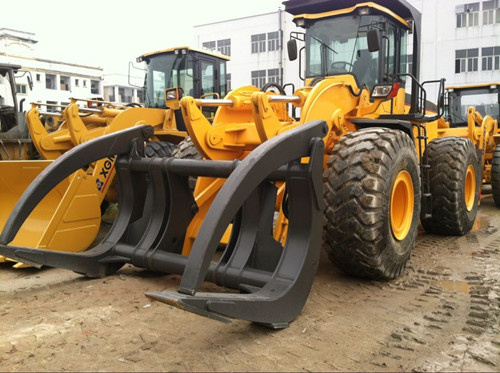

Large Wheel Loader Lumber Yard Log Loader

Product Specifications

Prod Model:	LT 968J
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Size 8400*3130*3550mm:	Engine:Weichai or Cummins
1 Year Warranty:	Gradeability 28°
Type:	Small Loader
Certification:	ISO9001: 2000
Walking Mode:	Wheeled
Condition:	New
Load And Unload Method:	Front Discharge

Product Description

specifications of big tractor log loader  LT968J


Model	LT 968J
Operating weight	22,000kg
Engine model	WD10G270E201
Rated engine power	199KW
Rated rotate speed	2200r/nin
Max.torque	920N.m
Max.dumping height	3900mm
Rated load	12,000-18,000 KG
NO.of shifts	Forward 4 For Reverse 2
Driving speed
Forward/ReverseI	0-6.5km/h
Forward/ReverseII	0-12.3km/h
Forward/ReverseIII	0-24km/h
Forward/ReverseIV	0-41km/h
Grade ability	≥25°
Turning angle	35°±1°
Overall length	8400mm
Overall width	3130mm
Overall height	3550mm
Wheel base	3550mm
Track base	2510mm
Torque converter	Model: YJ375X3 ratio:3.166
Cycling time	16s
Tire type	26.5-25

Features and Advantages of log loader:
1).Competitive price:we manufacturer's products are directly exported to buyers without the trading company in China
2).Optional accessories:There are some accessories could be chosen by users ,such as engine, transmission,floating forks ,marble slab carrier ,manure fork and grab ,bucket ,fixed platform etc.
