Product Specifications
| Prod Model: |
SK 9200B handheld |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OEM&ODM Service: |
Yes |
| Certification: |
Corh, FCC and etc. |
| Type: |
Barcode Scanner |
Product Description

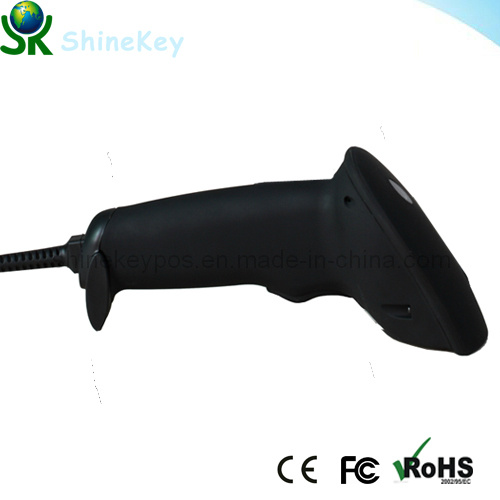

Laser Barcode Scanner/Barcode reader SK 9200
Optical:
Scanner Type: Bi-directional
Light Source: 650 - 670nm(visible)
Scan Rate: 100 scans per second
Resolution: 0.10mm (4mil) PCS0.9
Reading Distance: 2.5 - 600mm (100% UPC/EAN)
Print Contrast: 30% minimum reflective difference
Dimensions: L169mm × W72mm × H86mm
Weight: 300g
Scanning angle: Inclination angle 45° , Elevation angle 60°
Decode Capability: UPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, RSS variants, Chinese 2 of 5
Interfaces Supported: Keyboard Wedge, RS232, USB
Power:
Current Consumption: 100mA(Idle Current < 40mA)
Voltage Requirement: 5VDC ± 5%
Environment:
Operating Temperature: 0° C - 50° C / 32° F to 122° F
Storage Temperature: -40° C - 70° C / -40° F to 158° F
Relative Humidity: 5% - 95% (non condensing)
Shock: 1.5m drop on concrete surface
Ambient Light Immunity: Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight
Electrostatic Discharge: Conforms to ± 15KV air discharge and ± 8KV of
Contact discharge
Certificate
CORH class 2 laser product, FCC class B and CE
Shine Key Industry Co., Limited is a professional supplier for POS related products, such as receipt printer, barcode printer, barcode scanner, POS terminal and etc...Shine Key obtains its unique pioneering spirit from the reform and opening up. It also gets powerful technical support from domestic universities as well as strong creativity from hi-tech enterprises around. Our main manufacturing base is located in Zhuhai city, China, and except our own factory, we also have several permanent partners in the frontier cities of science and technology_Guangzhou and Shenzhen.
As early as 2006, Shine Key began to be dedicated to developing and popularizing products concerning the field of digital output and date collection. Our products have been widely applied in service business, such as telecommunications office, banks, hospitals, supermarkets, department stores, convenience stores, special stores, restaurants and places of entertainment. What's more important is that till now we have acquired itself with a strong force on research and development of new products. On one hand, some engineers have been awarded prizes for their excellent designs; On the other hand, our products have received wide recognition from markets, especially highly approved by Original Equipment Manufacturers (OEM).
Shine Key started to put POS products to international market since its inception. Our receipt printer and barcode scanner are very popular and also have a good sale in the international market, such as Central Asia, Southeast Asia, Africa, and Europe. Now the sale on international market is steadily on the increase. The company will seek for greater perfection to rank itself among the outstanding list in the POS industry by pursuing the best quality and service.
