Product Specifications
| Prod Model: |
XYL-JGPM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: |
Automatic |
| Model: |
Laser |

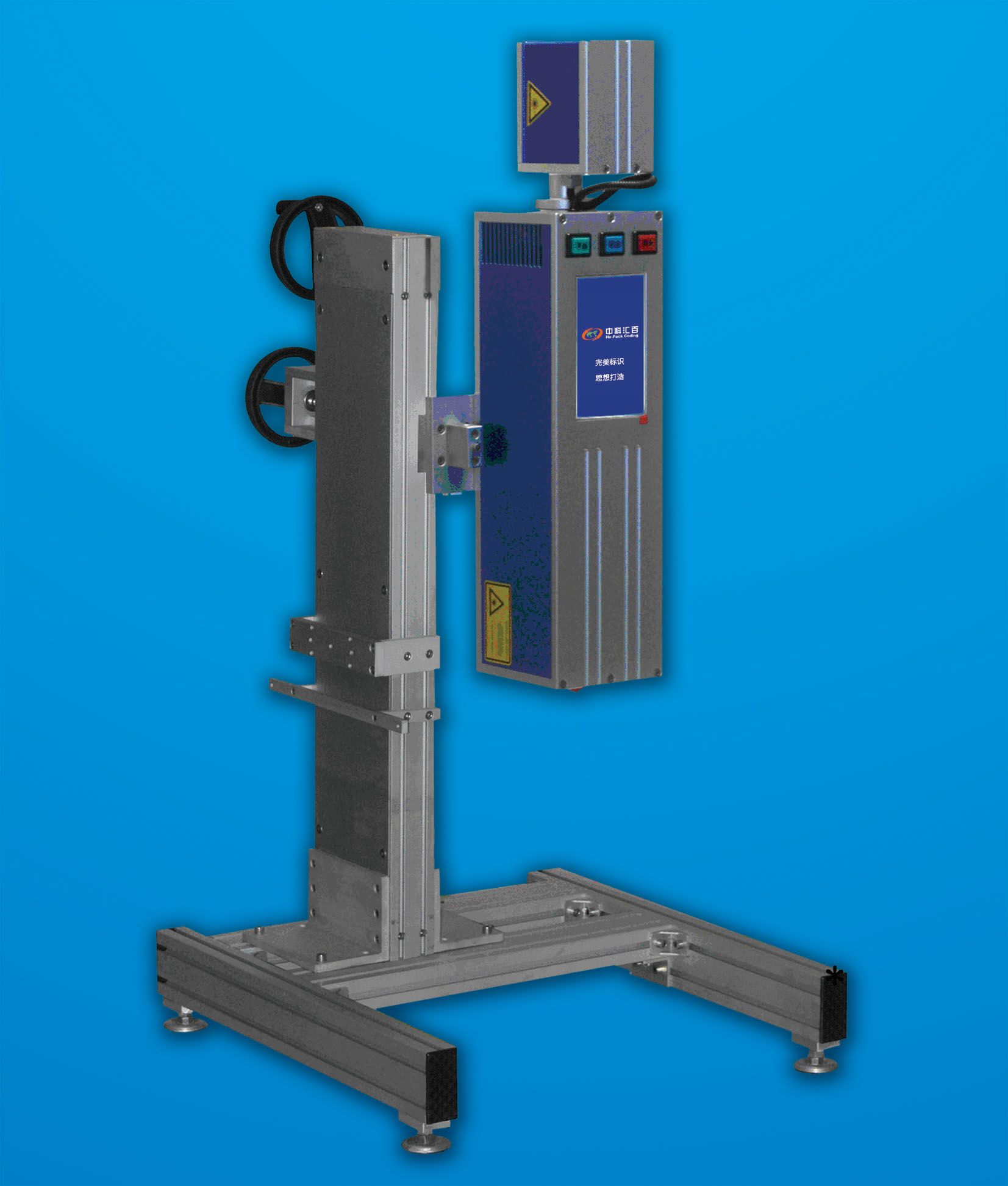

Product Description
APPLICATIONS
Food, Beverage, Electronic Component, Pharmaceuticals, ceramic wares.
Automobile part, Electrical Wire, Cable, Arts and Crafts, Rubber
High-speed, stable performance, adjustable power, applicable to most of nonmetal material
Carve and cut product very convenience, depth could be adjustable.
LASER
-CO2 Metal RF laser
Power
-S350W-27V/10W S600W-48V /30W
Operate Interface
-Configure with laptop
Operating Range
- Embeded many kinds of laser marked font, automatical serial number, Can be static and dynamic operation, automatic input with time and date change.
Work Conditions
-0-40 centigrade, humidity below 95% Non condensing.
TECHNICAL SPECIFICATIONS
|
Refrigerate style |
Air-cooled |
|
Wave length |
10.6mm |
|
Line width |
0.03mm |
|
Depth |
0.04mm(up to the material) |
|
Industrial controller |
Industrial control computer |
|
Print content |
Character,logo,barcode,two-dimension code,image,graphics,DOT mosaic |
|
Information input |
Keyboard,USB,serial data communication |
|
Interface |
Ethernet,USB,RS232 |
|
Focus |
Standard focus 56 ×56mm~300×300mm optional |
|
Protection |
Host optics closed, dust proof |
Zhangjiagang city XY-LONG machinery Co., Ltd is a professional manufactory located in zhangjiagang city jinfeng town, we have more than 10years experiences on beverage machinery.
We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry machine in China, especially model QGF series barreled production line.
For beverage machine, our Main products including:
The capacity of 5000-- 40000 BPH for hot filling, MID-temp filling, aseptic cold filling lines.
The capacity of 5000-- 40000 BPH for mineral water and purified water producing line.
The capacity of 5000 -- 36000 BPH for carbonated beverage producing line.
The capacity of 300 -- 2000 TBH, for 3 gallon, 5 gallon.
All kinds of water treatment equipment.
PET perform inject and blowing-stretching machine. Mould plastics machine
Turn-key projects
Flat and tube UHT device, and CIP system.
All the products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
Welcome to visit our company. Thank you!
